Product Name: |
Double Pulse Multi Function LCD Panel MIG TIG MMA Welder 1 5KG Feeder welding machine |
||||||
Features |

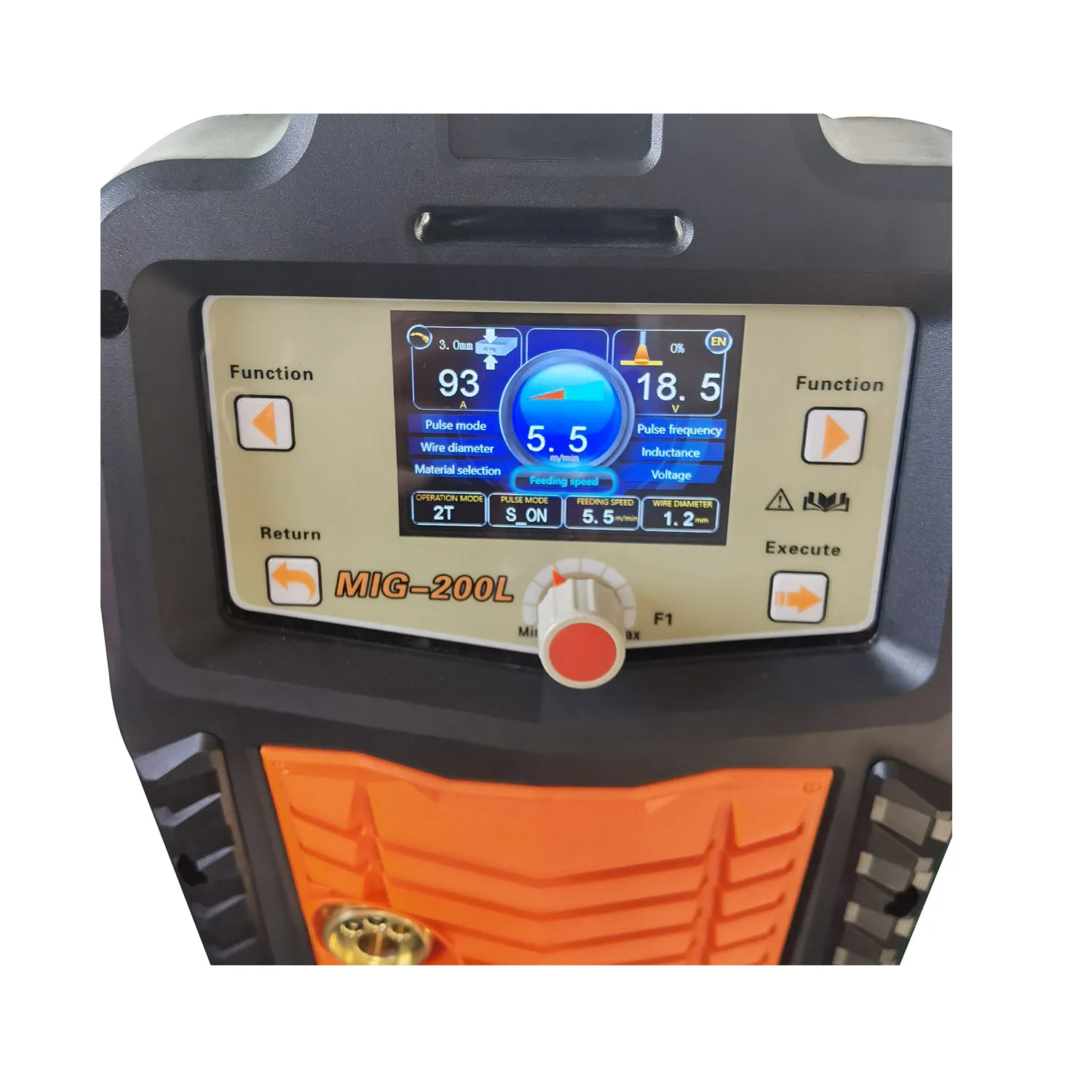

1. Possessing MAG/MIG, MMA, LIFT TIG functions. 2. Using colorful LED screen operation panel. 3. Dual pulse function, no splash welding, specially suitable for aluminum. 4. Using 1kg/5kg coil, sparated torch, wire-pulling torch optional. 5. 2T/4T function. 6. Synergic control. 7. IGBT inverter technology, reliable performance. 8. Digital control technology, few splash, perfect welding forming. 9. Over current & heating protection. 10. Using dual-drive feeder. 11. VRD function. 12. Support 18 sets of welding data memory. |
||||||
Accessories |
24KD MIG Torch (3m). Earth clamp with Cable (3m). M5 Allen key 1pc. Hose Clamp 2pcs. User manual |
||||||
Model |
MIG 200L |
||
Rated Input Voltage(V) /Frequency (Hz) |
1~220±15% / 50 |
||
Rated Input Power(kVA) |
8.2 |
||
Output Current Range(A) |
MMA |
30~200 |
|
TIG |
20~200 |
||
MIG |
40~200 |
||
Duty Cycle 40â |
60% |
||
Applicable Wire / rod diameter (mm) |
0.8~1.2 |
2.0~5.0 |
|
Wire Feeding Mode |
All in one |
||
Wire Feeding Speed M/min |
2-15 |
||
External Size L*W*H(mm) |
46X220X375 |
547X262X501 |
|
Weight (kg) |
16 |
27 |
|
Efficiency(%) |
93 |
86 |
|
Insulation grade |
H |
H |
|
Protection class |
IP21S |
IP21S |
|
