Mini Portable Automatic Welding Rotary Table Positioner 10kg Small Payload with Fixture Chuck 1 Axial Rotator Motor Engine

Mini Portable Automatic Welding Rotary Table Positioner 10kg Small Payload with Fixture Chuck 1 Axial Rotator Motor Engine

Overview
Recommended Products

Product Description

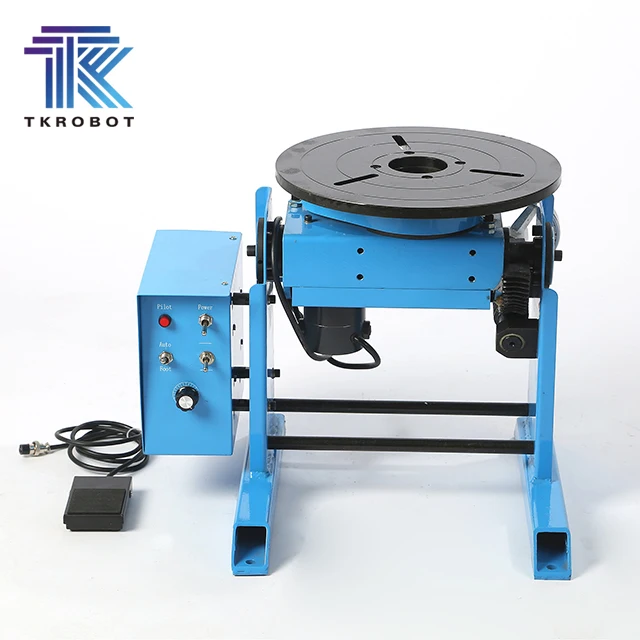

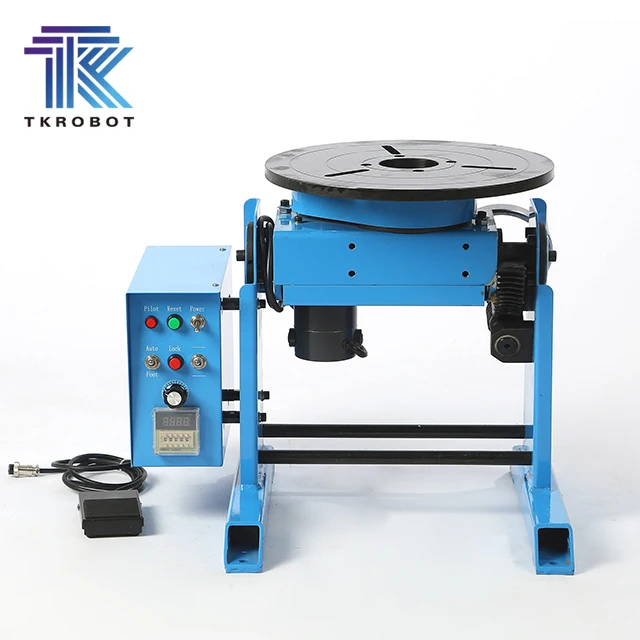

HD-10 Rotary Weding Table Positioner.

HD‐10 welding positioner are designed to give maximum positioning flexibility by using the tilting and rotation of the table to manipulate the work piece into the appropriate angle for welding on small valve and flange as manufacturing requirements These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work.

Features

 For annular welding, cutting, polishing and assembly.  Easy to set up a small welding center equipped with chuck, tracks, torch holders or stop cone.  DC infinitely variable speed control system.

Mini Portable Automatic Welding Rotary Table Positioner 10kg Small Payload with Fixture Chuck 1 Axial Rotator Motor Engine manufacture

Mini Portable Automatic Welding Rotary Table Positioner 10kg Small Payload with Fixture Chuck 1 Axial Rotator Motor Engine factory

Mini Portable Automatic Welding Rotary Table Positioner 10kg Small Payload with Fixture Chuck 1 Axial Rotator Motor Engine details

Specification

Model	HD-10	HD-30	HD-50
Horizontal Capacity	10kgs	30kgs	50kgs
Vertical Capacity	5kgs	20kgs	30kgs
Rotation Speed	2-19r/min	0.5-5r/min	0.5-5r/min
Tilt Angle Range	0-90 degree / hand wheel	0-90 degree / hand wheel	0-90 degree / hand wheel
Table Diameter	180mm	315mm	360mm
Height of Table	232mm	339mm	425mm
Motor Power	15W	80W	120W
Weight	10kgs	28kgs	32kgs
Applicative Chucks	KC- 65/80	KD - 125/200/300	KD - 125/200/300
Input Voltage	1ph 110/220V 50~60Hz	1ph 110/220V 50~60Hz	1ph 110/220V 50~60Hz

Company Profile

Founded in 2000, our company is a professional welding and cutting solutions provider, committed to providing users worldwide with safe, reliable, efficient and economical welding and cutting materials, welding and cutting machines and industrial welding and cutting robots.

FAQ

1. Delivery time:

For stocks order, the delivery time is 3-7days after receiving the payment.
For OEM order, delivery time is 45 days after receiving deposit.

2. Can you provide ODM/OEM service?

Yes we can provide ODM/OEM service.

3. How about quality control about the goods?

We can provide inspection pictures or video for the products if you require.

4. How about the guarantee time?

It's within 1 year after goods is discharged in the destination.

5. why should you buy from us not from other suppliers?
One-stop service for Automatic welding machine, Welding robots, Manual welding and cutting machine equipment, Cold welding machine, Seam welding machine, welding and cutting accessories.

6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese

Recommended Products

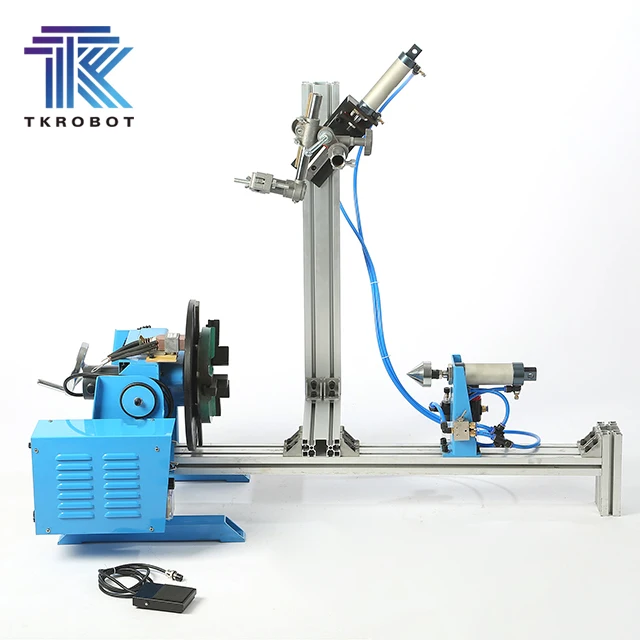

TKweld CNC Automatic Rotary Welding Positioner Multi-Functional Custom Load Capacities Construction Motor Ranging 30kg 600kg+

High Quality 1.2mm CO2 Mig Mag Welding Wire ER70s-6 Made from Carbon Steel at a Competitive Price

TKweld Model Aluminum Alloy Iron Bronze Welding Wire 0.8mm-1.6mm Wear-Resistant OEM/ODM

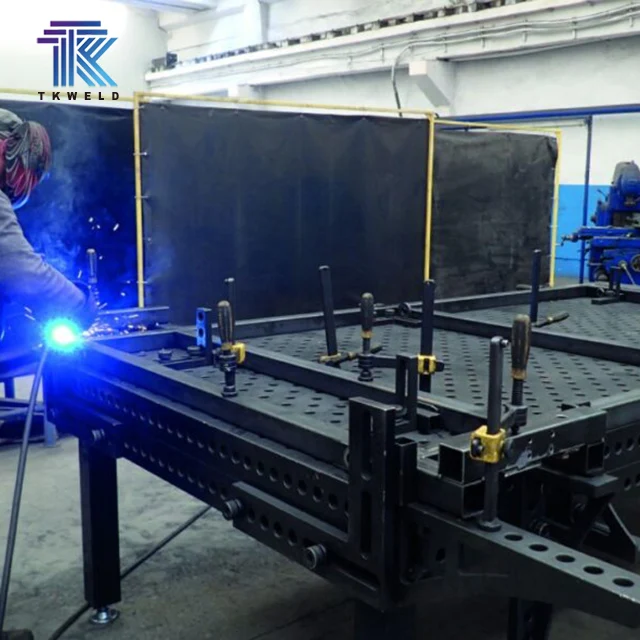

TKweld D16 D28 1000*800*200mm CE Certified Cast Iron Robot Welding Fixtures New Condition Soldering Station 3D Welding Table
