Product Name: |

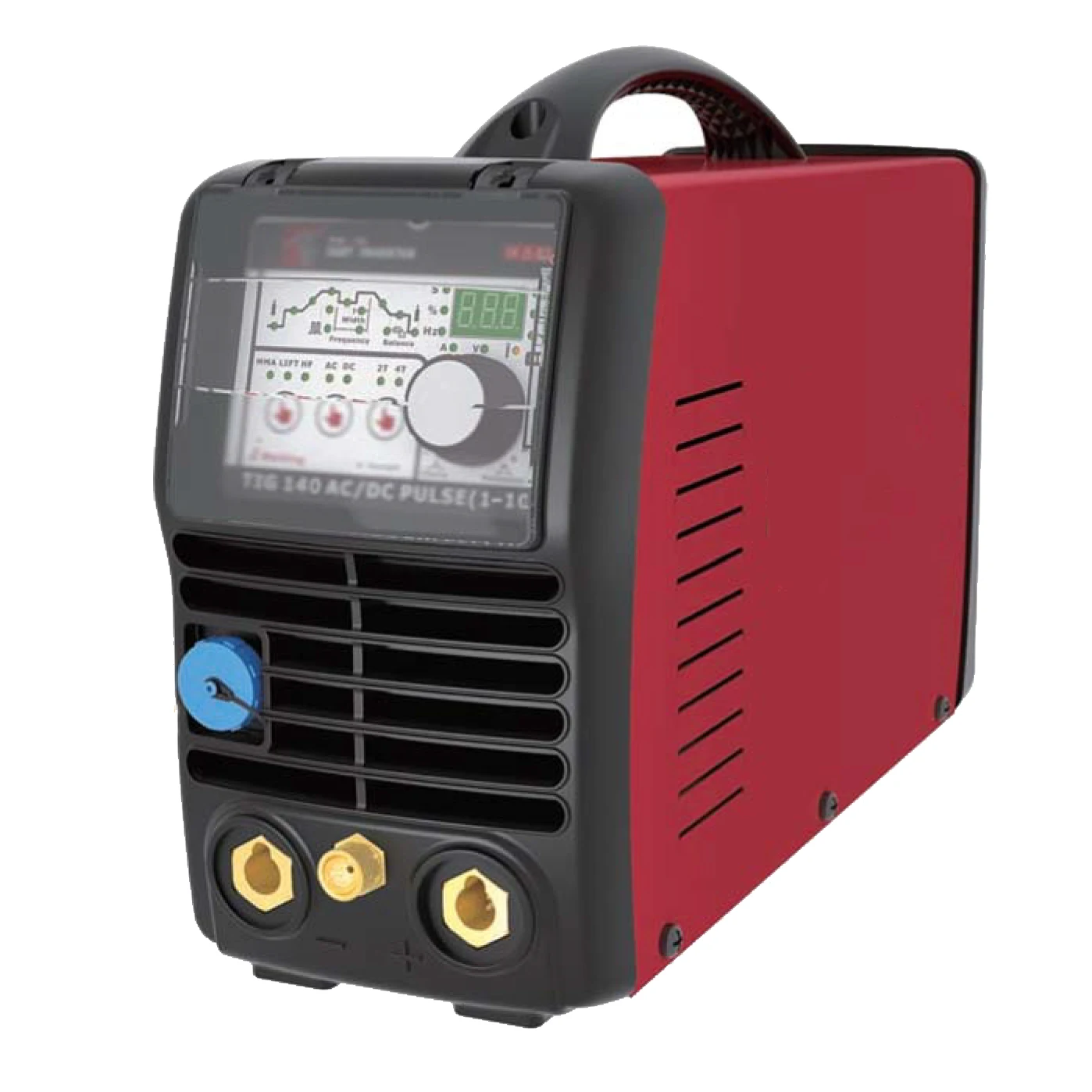

Excellent Quality Low Price China Manufacturer Wholesale Machine AC Dc Pulse Tig Welder |
||||||
Features |
Multi-Waveform Output AC waveforms include squre wave,sine wave, triangular wave and trapezoidal wave Protection Equipped with temperature, voltage and current sensors for high protection. AC Balance Control AC balance(50~85%) control monitors the oxide and helps better cleaning during aluminum welding. |
||||||
Model |

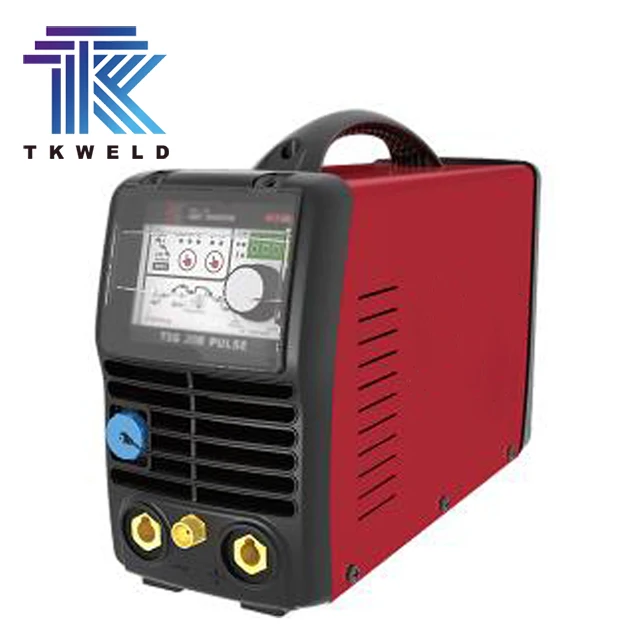

TIG 200E AC DC PULSE |
Input Voltage |
220V 1ph 50/60Hz |
No-load voltage |
67V |
Rated Input Current |
31A @MMA, 21A@TIG |
Welding Current |
5~200A |
Duty Cycle (40°C) TIG |
60% @ 200A; 100% @ 155A |
Duty Cycle (40°C ) MMA |
35% @ 200A; 100% @ 110A |
Efficiency |
≥81 |
Pre /Post Flow |
0~10S |
Pulse Freqency |
0.5~200Hz |
AC Freqency |
50~250Hz |
Insulation Class |
H |
Pulse Width Range |
5~95% |
Clearance Effect (AC TIG) |
15~50 |
Protection Class |
IP21S |
Dimensions |
492×189×350mm |
Weight |
15kg |
