Product Name: |

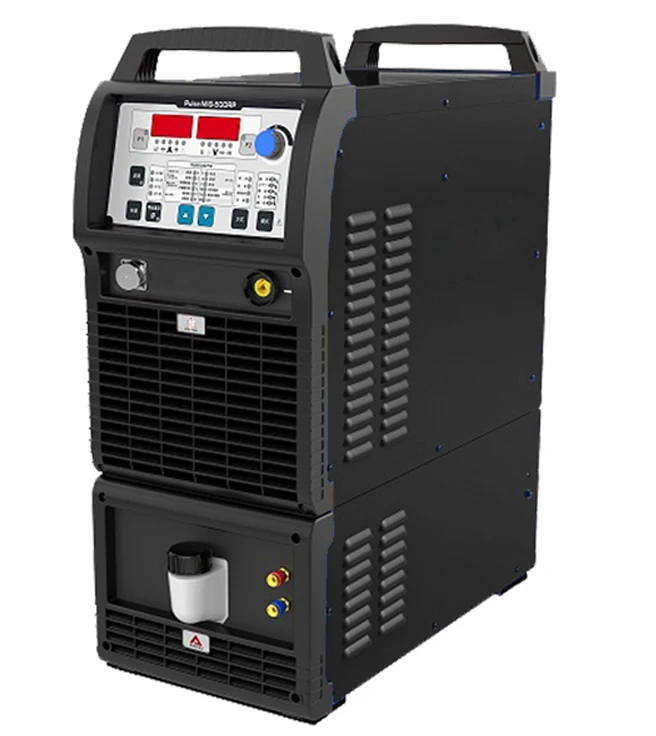

PULSE MIG Welding Machine for Robotic Arm |
||||||
Dimensions: |
660*320*560mm |
||||||
Features |
Excellent weldability: 1. One droplet per pulse control technology achieves no splash welding. 2. Enhanced double pulse function to realize perfect fish-scale seam weld and improve weld quality in aluminum alloy welding. 3. Full digital system, realize precise control of droplet transition, and realize continuous and stable welding quality. 4. Parameters of arc starting and arc ending can be adjusted, with high welding quality. 5. Up to 100 sets of user-defined parameters can be stored for easy adjustment. 6. All-digital high-precision wire feeding system, two-driver and two-slave with encoder, all-digital control wire feeding system device, even if the power supply voltage, wire feeding resistance and other external factors change, the welding machine still can guarantee the stability of wire feeding. 7. Suitable for welding carbon steel, stainless steel, aluminum and aluminum alloy, copper and copper alloy. Welding Robot additional functions 1. Equipped with the initial end detection function, the initial end detection of welding seam can be completed without adding robot hardware. 2. The digital interface is equipped with arc tracking function, which can cooperate with the robot to complete weld seam tracking. 3. Open communication mode, the robot can control the parameters used by the welder. 4. The international general standard Devicenet /CAN /CANopSen / 485 / EtherNetIP digital communication interface, realize the seamless integration with different brand robot. 5. Integrated analog communication interface, plug and play. |
||||||
Input Voltage |
3PH 380V±10%, 50Hz |
Rated output |
500A/39V |
Applicable Welding wire |
Solid Wire/ Flux Wire |
Gas Shield |
MIG/MAG |
Wire Diameter |
0.8-1.6mm |
Duty Cycle (40°C) |
60%; 100%; |
Welding material @Pulse Mode |
Carbon steel, Stainless steel, Aluminum magnesium alloy, Pure aluminum and aluminum silicon alloy, Copper and copper alloy |
Welding material @Constant voltage mode
|
CO2 Carbon steel, Argon-rich carbon steel |
Protection Class |
IP23 |
Torch Cooling |
Air/Water |
Welding Current |
25-500A |
Output Voltage |
17-39V |
Power Factor |
≧0.87 |
Fre.HZ |
50/60 |
Gas Flow Rate |
15-20L/min |
Dimensions |
660*320*560mm |
Weight |
55kg |
