TKweld E6013 Arc Welding Electrode for Low Carbon Steel Carbon Steel Material 40A-240A DC/AC Current welding rod

  • Overview
  • Recommended Products

TKweld’s E6013 Arc Welding Electrode for Low Carbon Steel — reliable, easy-to-use welding rods designed for everyday welding needs. Built by TKweld with consistent quality and performance, these electrodes are a solid choice for hobbyists, maintenance workers, fabricators, and anyone who needs a dependable welding rod for carbon steel.



These E6013 electrodes are formulated to work well on low carbon and carbon steel materials. They are versatile for thin to medium thickness steel and perform smoothly on sheet metal, structural parts, farm equipment, and general repair jobs. Whether you are welding brackets, frames, or small repairs around the shop, these rods offer steady performance that helps you get the job done cleanly.



One of the main strengths of the TKweld E6013 rod is its smooth arc and easy strike. The coating and flux mix are designed to produce a stable, forgiving arc that makes it simpler to start and keep the arc going. This is particularly helpful for welders who are learning technique or working in situations where precise control is harder to maintain. The electrode’s arc behavior reduces spatter and helps produce a neat bead with minimal cleanup.



TKweld’s E6013 electrodes deposit a weld bead that is visually clean and easy to grind or finish if needed. The slag is easy to remove, which speeds up post-weld cleanup and inspection. The deposited weld has good tying-in characteristics, allowing the weld metal to blend well with the base metal for sound joints on butt, lap, and fillet welds.



These rods are rated E6013, which denotes their tensile strength, position capability, and arc characteristics. They are suitable for welding in flat, horizontal, vertical, and overhead positions, giving you flexibility across a wide range of tasks. With a tensile strength rating suitable for typical carbon steel applications, the TKweld E6013 rod is engineered to create reliable joints for structural and repair work.



TKweld’s E6013 rods are compatible with both AC and DC current and work well at a welding current range of 40A to 240A depending on electrode diameter and joint configuration. This broad amperage range gives you flexibility to match the rod to your welding machine and the thickness of material you are joining. For thinner materials and smaller diameters, run at the lower end of the range to avoid burn-through; for thicker sections, increase amperage within the rod’s capacity for good penetration.



Available in common diameters, these rods make it easy to choose the right size for your project. Smaller diameters are great for sheet metal and light fabrication; larger diameters give deeper penetration for heavier sections. Whatever the size you choose, TKweld maintains consistent coating and core wire quality so you get repeatable results.



Some key benefits of the TKweld E6013 welding rod:

- Smooth, stable arc that’s easy to strike and maintain.

- Low spatter for cleaner welds and less cleanup time.

- Easy slag removal for quick finishing.

- Good all-position welding on low carbon steels.

- Works on AC and DC machines, 40A–240A depending on size.

- Consistent quality from TKweld for reliable performance.



These electrodes are designed for practical, everyday welding tasks. They are especially suited for industries and users who need a dependable, general-purpose electrode: maintenance shops, farm equipment repair, small fabrication shops, metalworking hobbyists, and DIY enthusiasts. For repair and maintenance where speed and cleanliness matter, TKweld’s E6013 rods help you make strong, presentable welds without specialized setup.



In addition to handling common steel types, the electrode’s coating helps stabilize the weld puddle and protect the molten metal from atmospheric contamination. This means the welds are less likely to suffer from porosity or weak spots caused by air exposure during welding. The result is a more uniform weld bead and stronger joints suitable for many non-critical structural uses.



Using TKweld’s E6013 rods is straightforward. Ensure you choose the electrode diameter that matches your material thickness and welding position. Set your machine to the recommended amperage range for that diameter, and use the proper arc length—typically a short arc—to achieve the best bead profile and penetration. With practice, welders will find these rods responsive and easy to control, producing sound welds with consistent appearance.



TKweld stands behind these electrodes with a focus on quality control and consistent manufacturing. That means you can expect similar performance rod to rod, package to package, which reduces surprise variations during a job. For shops and individuals who value predictability and steady results, TKweld’s E6013 rods are a practical choice.



Packaging is designed to protect the electrodes from moisture and damage during storage and transport. Proper storage in a dry environment will preserve the coating and ensure optimal welding behavior when you need it. For critical applications, follow any preheat or drying recommendations specific to your welding code or practice, but for most general repairs and fabrication, these rods are ready to perform straight from the package.



TKweld’s E6013 Arc Welding Electrodes offer a balance of user-friendly arc characteristics, clean appearance, and good all-position capability on low carbon steel. With wide current compatibility (40A–240A AC/DC) and dependable manufacturing, they are a practical, cost-effective choice for routine welding, repairs, and fabrication tasks. Choose TKweld’s E6013 when you want a straightforward, reliable electrode that makes welding low carbon and carbon steel easier and more consistent


2023 New Best-selling Welding Electrode Welding Stick E6013 Welding Rod

Product Description

 welding rod1

AWS E6013 Welding Electrode

  • Non Corrosive

        • High Hardness

        • General Corrosion Resistance

        • Long-Lastingness

        • The ability to hold on to any Temperatures

welding rod2



E6013 Welding Electrode Rod
Easy to use
All position welding, general purpose rod for shallow penetration or in poor fit up conditions
Excellent wetting action, yielding smooth and flat beads with steady arc with either AC or DC
Low spatter and excellent slag removal, virtually self cleaning in vertical down fillets
Use on all types of mild steel where ease of operation and good appearance is required in all positions, ideal for vertical down welding
Use for all types of mild steel fabrication



DEPOSIT COMPOSITION OF E6013 (Quality Score): %
Items C Mn Si S P Ni Cr Mo V
Requirements ≤0.10 0.32-0.55 ≤0.30 ≤0.030 ≤0.035 ≤0.30
≤0.20
≤0.30 ≤0.08
Typical Results 0.08 0.37 0.18 0.020 0.025 0.030 0.035 0.005 0.004
 MECHANICAL PROPERTIES:
Items

Tensile Strength

    Rm/MPa

Yield Strength

Rel/Rp0.2   MPa

Elongation

A/%

Charpy V-Notch

KV2(J)    0℃

Requirements  440-560 ≥355 ≥22 ≥47
Typical Results 500 430 27 80



X-ray detection: Ⅱ

TYPICAL OPERATING PROCEDURES: AD, DC

Diameter

in(mm)

2.0 2.5 3.2 4.0 5.0 5.8

Current

in (A)

40-70 50-90 80-130 150-200 180-240 220-280

 -1_04

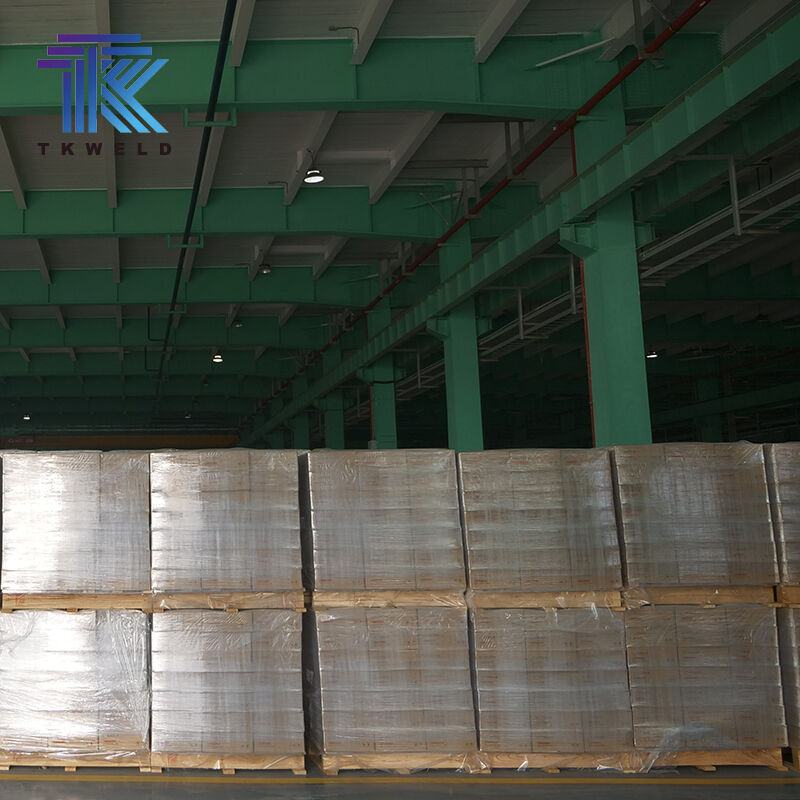

Packaging & Shipping

 6P1073186



AWS A5.1 E6013 Welding Electrode Packing Detalis as Follow:



2.5kg/5kg/Box, 20kg/Carton, 1000kg/Pallet

Company Information

 Fengling

Shanghai Fengling Company, founded in 2000, is a company focusing on professional services in the welding industry. It mainly provides customers with integrated services of welding materials, welding equipment, welding automatic production lines and welding process research and development. Provide technology and services for many landmark projects and well-known enterprises, cooperation projects include (Shanghai Center, Hongqiao Transportation Hub, Jin Mao Tower, China National World Expo, National Convention and Exhibition Center, Scientist Building, etc.), cooperative enterprises (Shanghai Construction Group, MCC Steel Group), more than 20 years of accumulated very rich and valuable professional service experience. Our company has a high-quality welding technology central laboratory, with its own brand TKweld and welding robot TKrobot. At the same time, it cooperates with the world's well-known welding power supply and welding robot brands, welding power supply includes (Lincoln of USA, SAFRA of France, Kemppi of Finland, ESAB of Sweden, OTC of Japan, Panasonic, China Aotai, Megmeet, etc.), and welding robots have four major families in the world (Fanuc, Yaskawa, Kuka, ABB, etc.). FengLing aspires to become an integrated professional technical service company with great influence in the welding industry

Our Services

 -1_06

 We have a strong welding consumables market supply chain, where you can find any welding consumables and equipment you need. Our team is at your service throughout the process, supplying you with the best quality products

-1_05

All of our product shave 8 countries classification societies quality certification(ABS, CCS, DNV, BV, RINA, NK, GL, LR) which ensures the quality and safety

-1_07

FAQ

Q1: What kind of company are you

A: We are the real professional welding machines supplier, which has production team, R&D team, sales force and after-sale service team. And we have our own welding robot laboratory for research and to provide free technical training


Q2:How do you guarantee product quality

A:We have our own welding laboratory, which not only tests all welding consumables but also provides customers with welding solutions, accumulates a large amount of data experience, and has absolute experience in product quality control


Q3. Do you have any warranty

A: Yes, we have. One year warranty for welding rod


Q4. What certification do you have

A: All of our product shave 8 countries classification societies quality certification which ensures the quality and safety. Our products are under strict quality management to ensure supreme quality


Q5: What's the package

A: 4 boxes* 5kg per inner box, or as customer’s requirements


Q6: What is delivery time / lead time

A: The goods will be shipped within15-30 days after the receipt of your payment


Q7: What is your minimum order

A: 500kgs


Q8: What is your payment term

A:1- 30% down payment for order confirmation, 70% before shipment. 2- 100% at sight LC


Q9:Can you send the samples for testing
A: Yes, we can support sample, free for send Express charges pay by new client, second test sample all free
