Product Name: |
Double Pulse Digital Aluminium Welding 500A Gas Protection MIG Multi function Water Cooled Welding Machine with Trolley |
||||||
Features |
1. Soft switch inverter technology is adopted, with double IGBT module to effectively extend the service life of the whole machine.
2. Closed loop control, arc self-regulation ability is strong, welding process is stable.
3. Small welding spatter during short-circuit transition, nearly spatter-free during pulse welding.
4. Welding mahcine, Water tank, Wire feeder and trolly are assembled in one for convenient operation.
5. Welding process storage and call function, software upgrade can support special process.
6. Can weld carbon steel, stainless steel, copper and other metals, especially good at welding aluminum and aluminum alloys.
|
||||||
Function |
PULSE MIG welding. Manual Arc welding. Solid wire/flux wire， STICK welding |
||||||
Accessories |

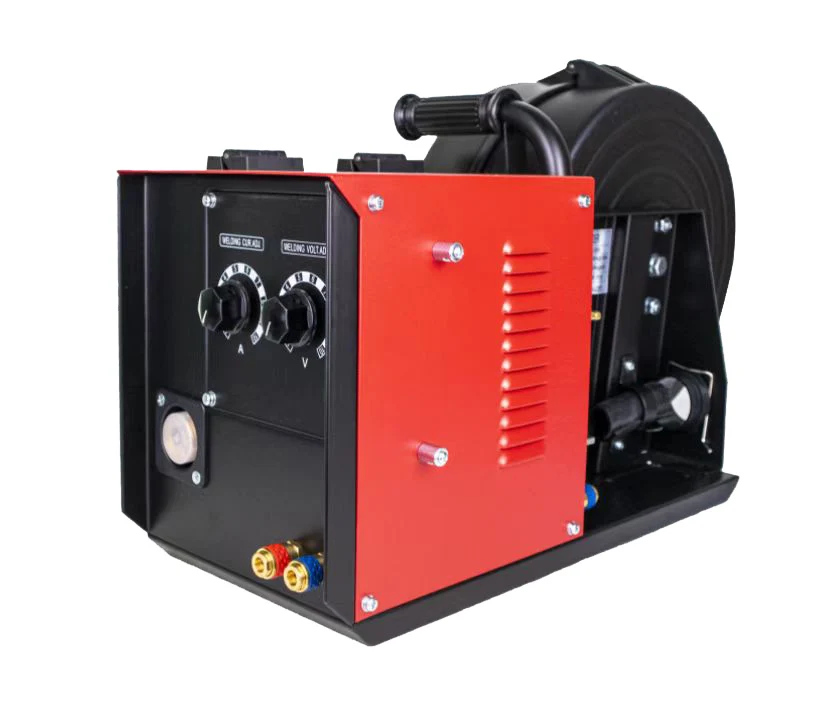

Wire feeding device 1set
Water cooler 1set
Trolley 1set
Welding torch 1set
2M earth connector cable 1pc
10M junction line 1pc
Hose clamp 2pcs
Flow meter 1pc
|
||||||
Model |
DP MIG-350 |
DP MIG-350 |
||||
MIG welding |
MMA welding |
MIG welding |
MMA welding |
|||
Rated Input Voltage(V) /Frequency (Hz) |
3~400±10% / 50/60 |
3~400±10% / 50/60 |
||||
Rated Input Power(kVA) |
15.5 |
11 |
27.5 |
18 |
||
Open circuit Voltage(V) |
60 |
14 |
72 |
14 |
||
Output Current Range(A) |
15~350 |
15~350 |
15~500 |
15~480 |
||
Output Voltage Range(V) |
174~40 |
22.4~35 |
14~50 |
22.4~40 |
||
Rated Duty Cycle (%) 40℃ |
350A@60% |
350A@60% |
480A@60% |
480A@60% |
||
275A@100% |
275A@100% |
400A@100% |
400A@100% |
|||
Applicable Wire / rod diameter (mm) |
0.8~1.6 |
2.0~5.0 |
1.0~1.6 |
2.0~6.0 |
||
External Size L*W*H(mm) |
1040X580X1480 |
547X262X501 |
1040X580X1480 |
|||
Weight (kg) |
95 |
27 |
105 |
|||
Efficiency(%) |
89 |
86 |
89 |
|||
Insulation grade |
H |
H |
H |
|||
Protection class |
IP23 |
IP21S |
IP23 |
|||
