Product Name: |

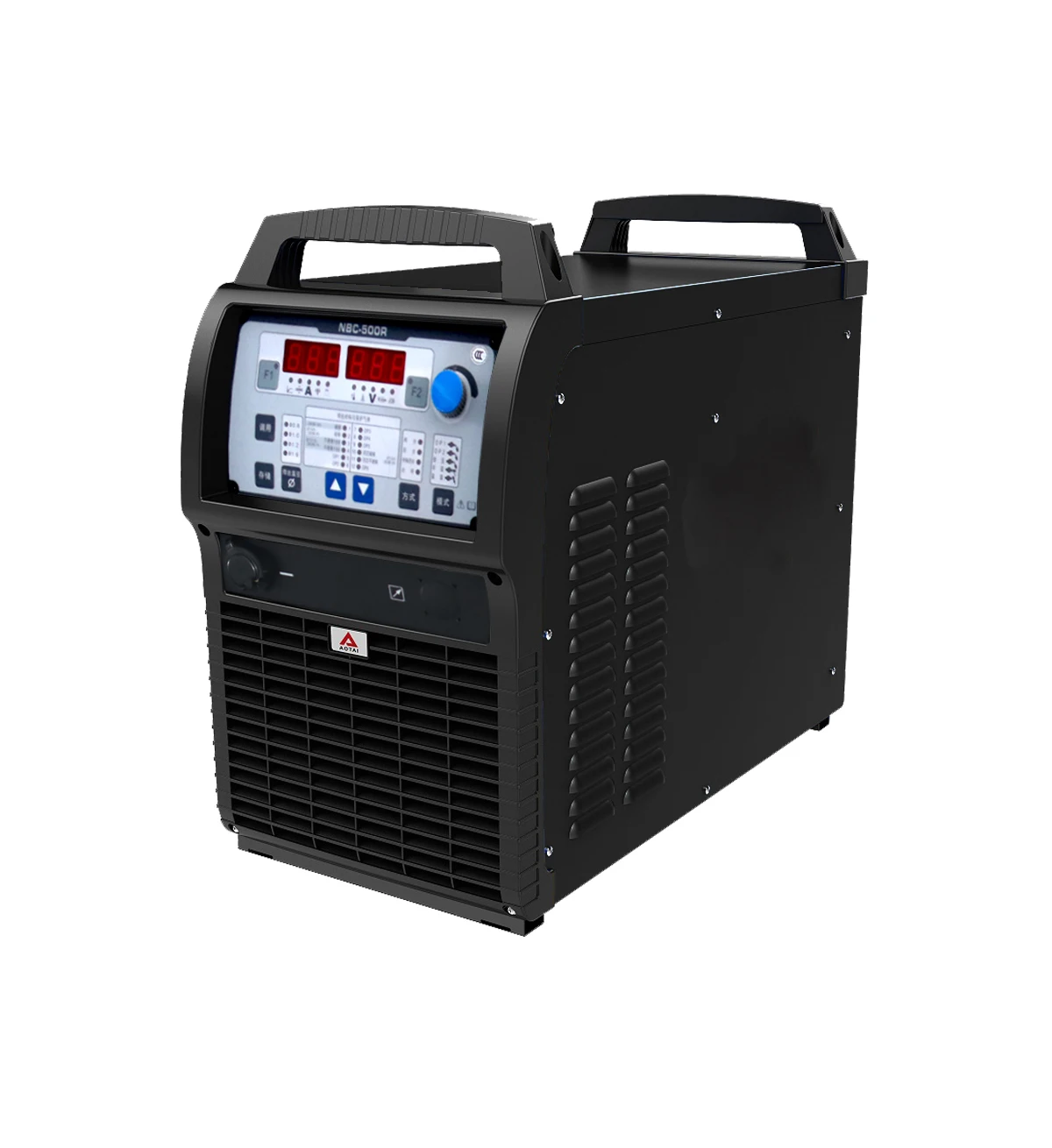

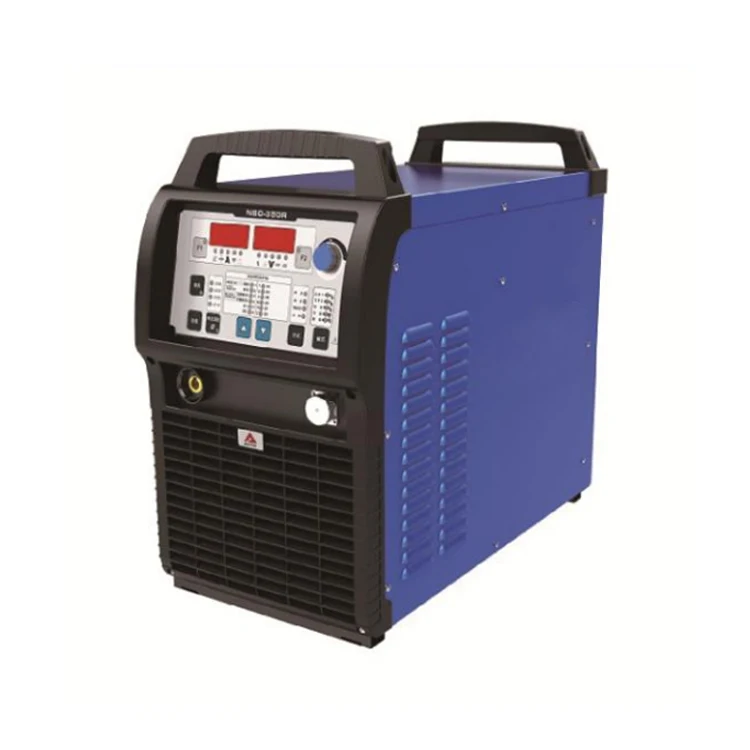

Gas Shield NBC 350 Welding Machine Digital Inveter MIG MAG CO2 Welder |
||||||
Dimensions: |
660*320*560mm |
||||||
Features |
1. Full digital system to achieve excessive drop precise control, to achieve continuous and stable welding quality. 2. Soft switch inverter technology, can improve the reliability of the whole machine, energy saving. 3. Full digital high-precision wire feeding control system, two drive two slave encoder full digital control wire feeding device, even if the power supply voltage, wire feeding resistance and other external factors change, still ensure the wire feeding stability. 4. With a unified/separate adjustment mode, convenient adjustment to meet the use of different types of robots. 5. Arc starting and arc closing parameters are adjustable, and the welding quality is high. 6. Up to 100 sets of user-defined standard parameters can be stored for easy adjustment. 7. Built-in expert database 8. Suitable for welding all kinds of carbon steel workpiece. Additional robot functions 1. It has the function of initial detection, which can complete the initial detection of weld without adding robot hardware. 2. Digital interface is equipped with arc tracking function, which can cooperate with robot to complete weld tracking. 3. Open communication mode, robot can control all parameters of welding machine. 4. Universal DeviceNet, CAN, CANopen, 485, Ethernetip, etc. digital communication interface, realizing seamless integration with different brands of robots. 5. Integrated analog communication interface, plug and play. |
||||||
Input Voltage |
3PH 380V±150%, 50Hz |
Rated output |
350A/31.5V |
Applicable Welding wire |
Solid Wire/ Flux Wire |
Wire Diameter |
0.8-1.6mm |
Duty Cycle (40°C) |
60%; |
Welding material @Pulse Mode |
Carbon steel, Stainless steel, Aluminum magnesium alloy, Pure aluminum and aluminum silicon alloy, Copper and copper alloy |
Welding material @Constant voltage mode
|
CO2 Carbon steel, Argon-rich carbon steel |
Protection Class |
IP23 |
Torch Cooling |
Air/Water |
Welding Current |
25-350A |
Output Voltage |
17-31.5V |
Power Factor |
≧0.87 |
Fre.HZ |
50/60 |
Gas Flow Rate |
15-20L/min |
Dimensions |
660*320*560mm |
Weight |
50kg |
