Product Description

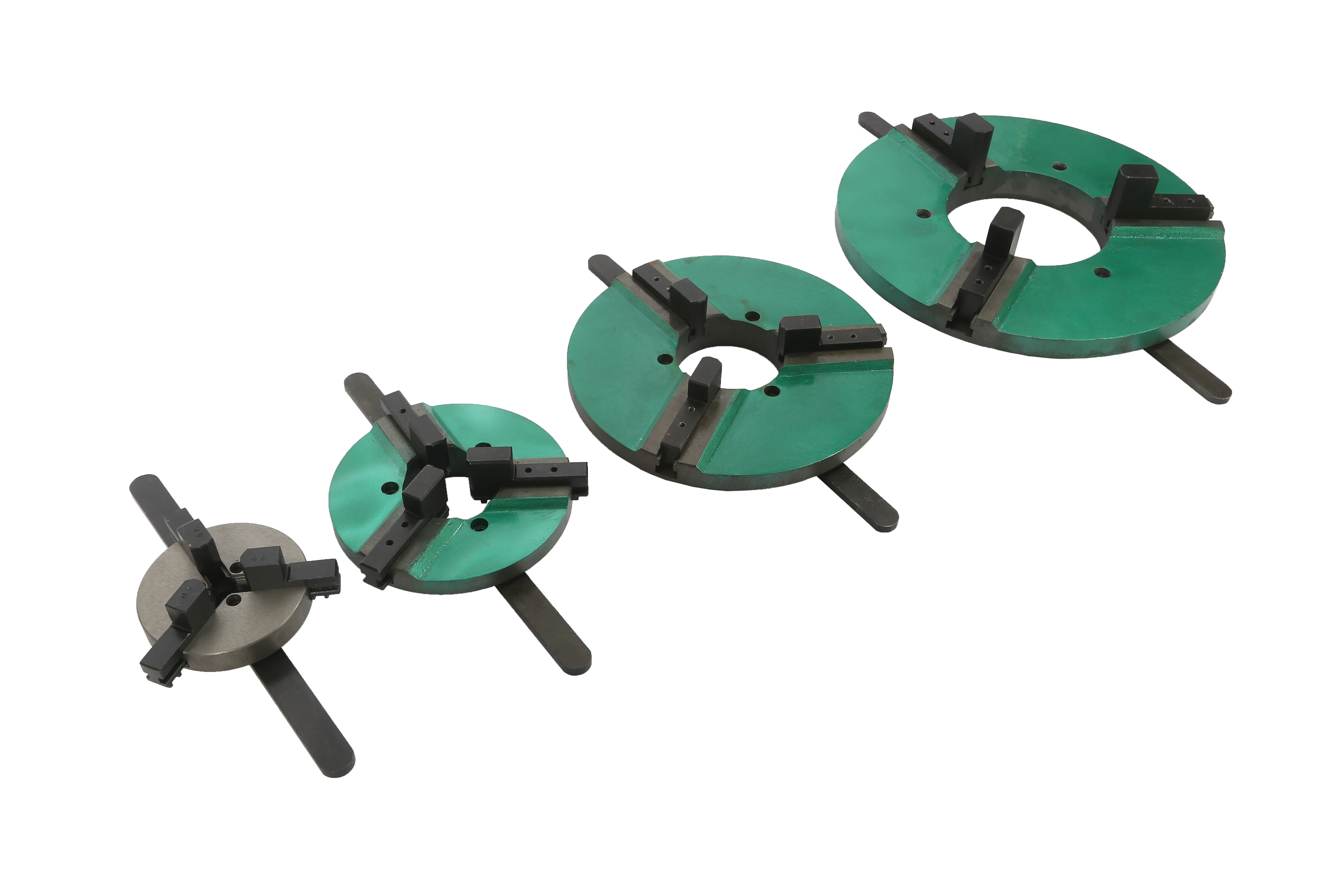

Welding Rotating Positioner Fixture /Jig/Clamp

Welding fixture, also known as jig, tooling and clamp, it's the key part for automatic welding application. The products are used on General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipments.

HP-100/200/300 Positioner.

Designed to give maximum positioning flexbility by using the tilting and rotation of the table to manipulate the workpiece into the appropriate angle for welding or to position accurately for assembly and manufacturing requirements. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work.

Features

 For annular welding, cutting, polishing and assembly.  Easy to set up a small welding center equipped with chuck, tracks, torch holders or stop cone.  DC infinitely variable speed control system.  Rotation time relay function optional.  Welder linked auto welding control function.

Automatic Welding Rotary Positioner Fixture for 2D 3D Welding Turntable Clamp of Robot Welding supplier

Automatic Welding Rotary Positioner Fixture for 2D 3D Welding Turntable Clamp of Robot Welding details

Specification

Model	HP-100	HP-200	HP-300
Horizontal Capacity	100kgs	200kgs	300kgs
Vertical Capacity	50kgs	100kgs	150kgs
Rotation Speed	0.05-0.5r/min	0.05-0.5r/min	0.2-2.5r/min
Tilt Angle Range	0-90 degree / hand wheel	0-90 degree / hand wheel	0-90 degree / hand wheel
Table Diameter	400mm	400mm	500mm
Height of Table	500mm	500mm	600mm
Table Hole Size	45mm	45mm	90mm
Motor Power	120W	180W	220W
Weight	75kgs	80kgs	110kgs

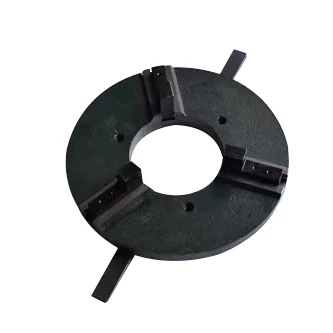

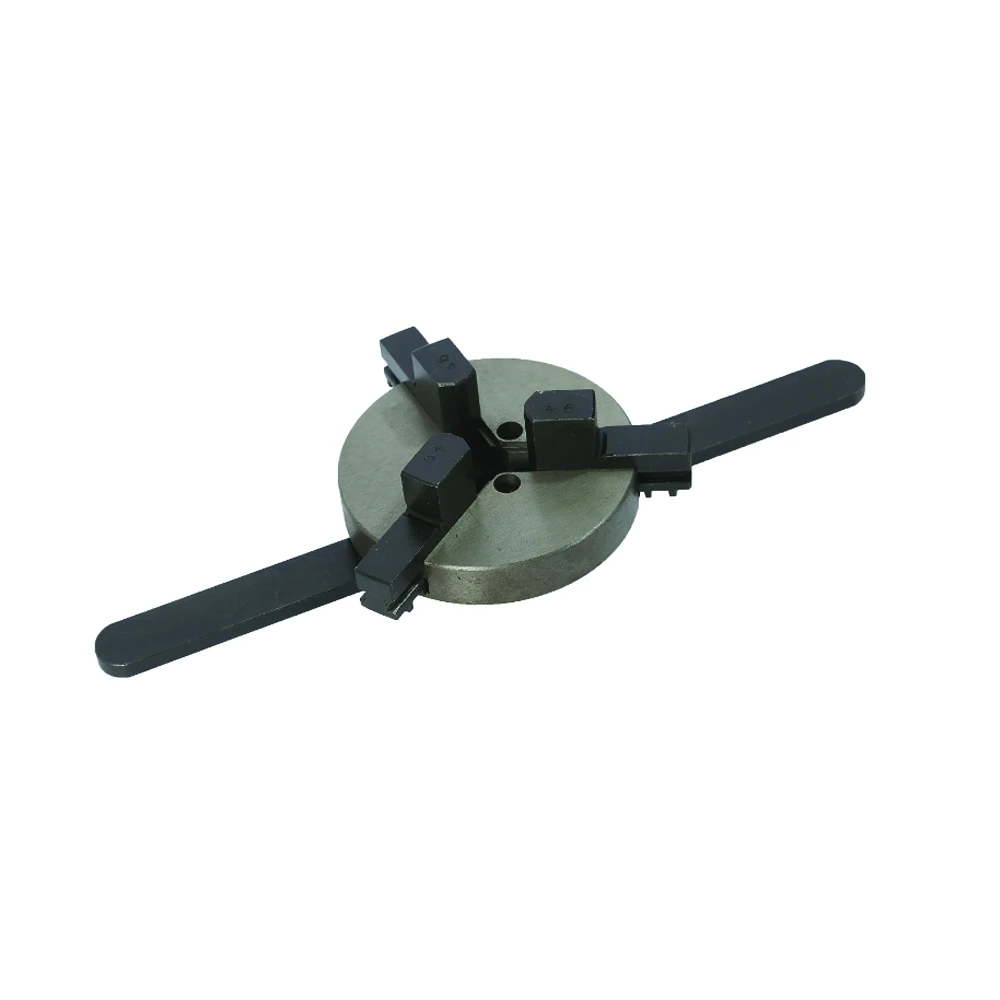

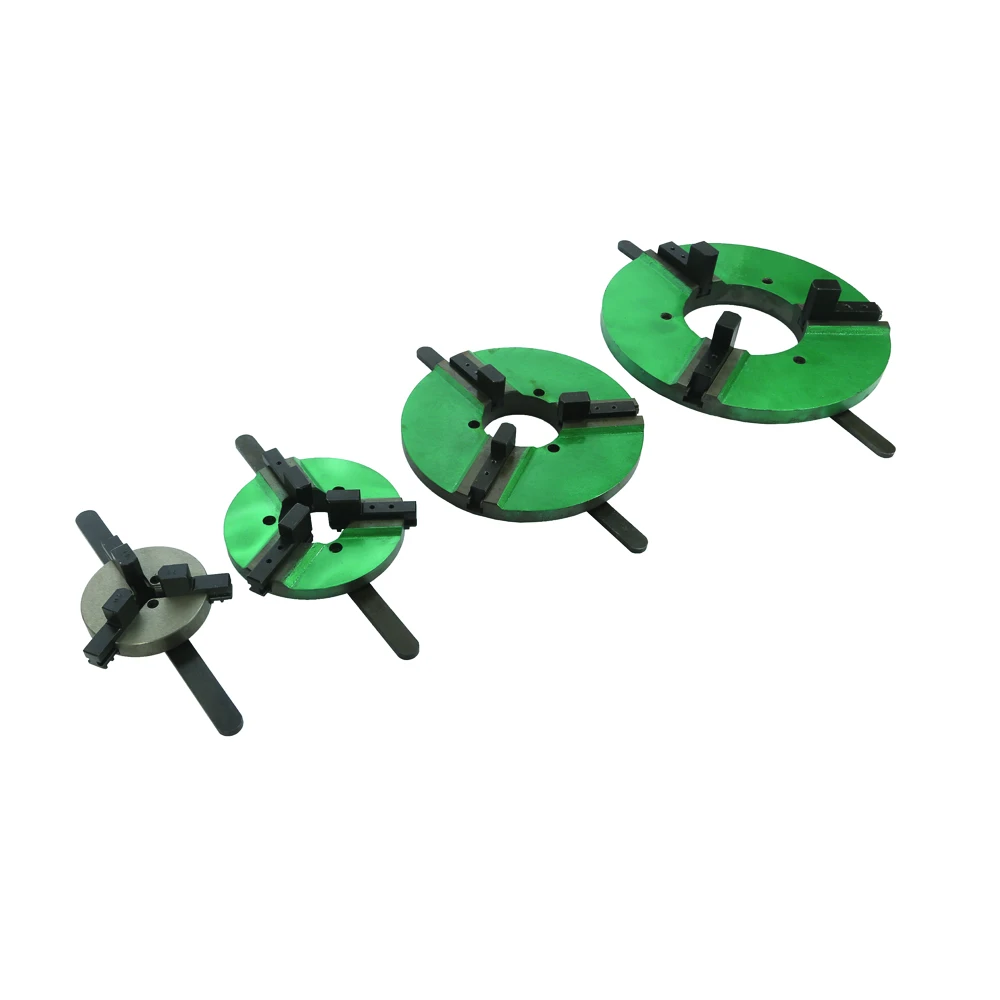

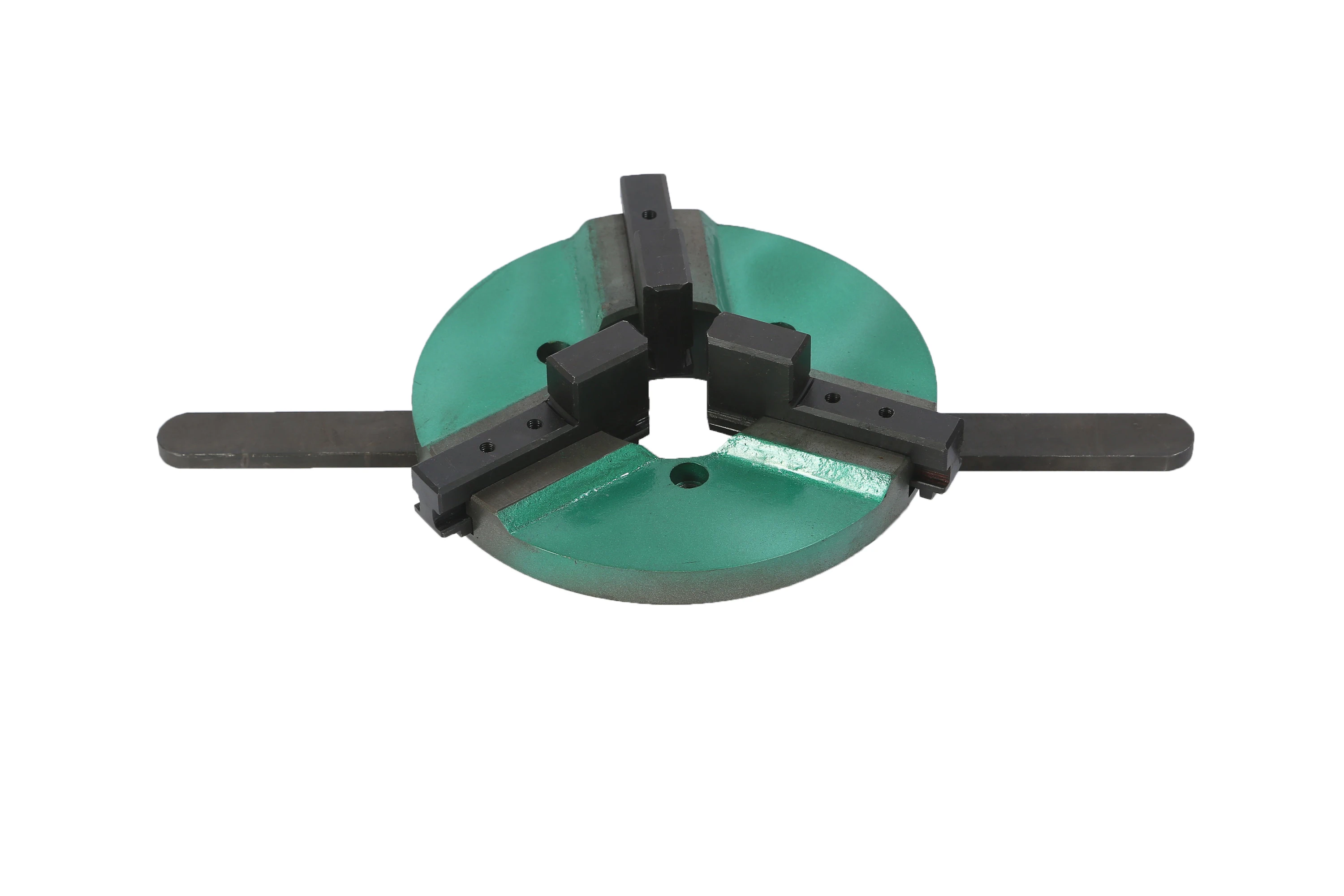

Applicative Chucks	KD - 300/400	KD - 200 /300/400	KD - 300/400
Input Voltage	1ph 220V 50~60Hz	1ph 220V 50~60Hz	1ph 220V 50~60Hz

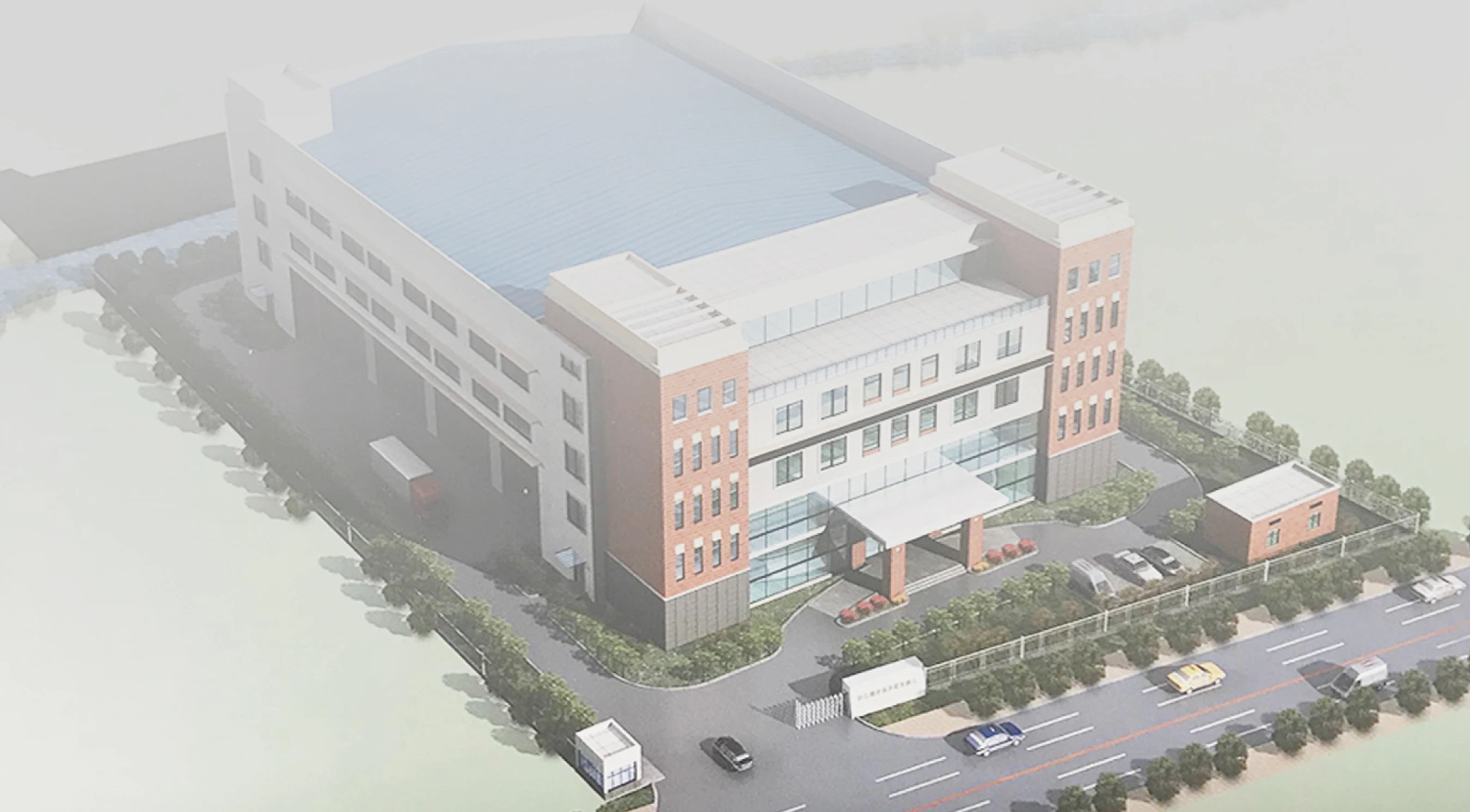

Company Profile

Automatic Welding Rotary Positioner Fixture for 2D 3D Welding Turntable Clamp of Robot Welding manufacture

Automatic Welding Rotary Positioner Fixture for 2D 3D Welding Turntable Clamp of Robot Welding factory

Founded in 2000, our company is a professional welding and cutting solutions provider, committed to providing users worldwide with safe, reliable, efficient and economical welding and cutting materials, welding and cutting machines and industrial welding and cutting robots.

FAQ

1. Delivery time:

For stocks order, the delivery time is 3-7days after receiving the payment.
For OEM order, delivery time is 45 days after receiving deposit.

2. Can you provide ODM/OEM service?

Yes we can provide ODM/OEM service.

3. How about quality control about the goods?

We can provide inspection pictures or video for the products if you require.

4. How about the guarantee time?

It's within 1 year after goods is discharged in the destination.

5. why should you buy from us not from other suppliers?
One-stop service for Automatic welding machine, Welding robots, Manual welding and cutting machine equipment, Cold welding machine, Seam welding machine, welding and cutting accessories.

6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
