Product Name: |

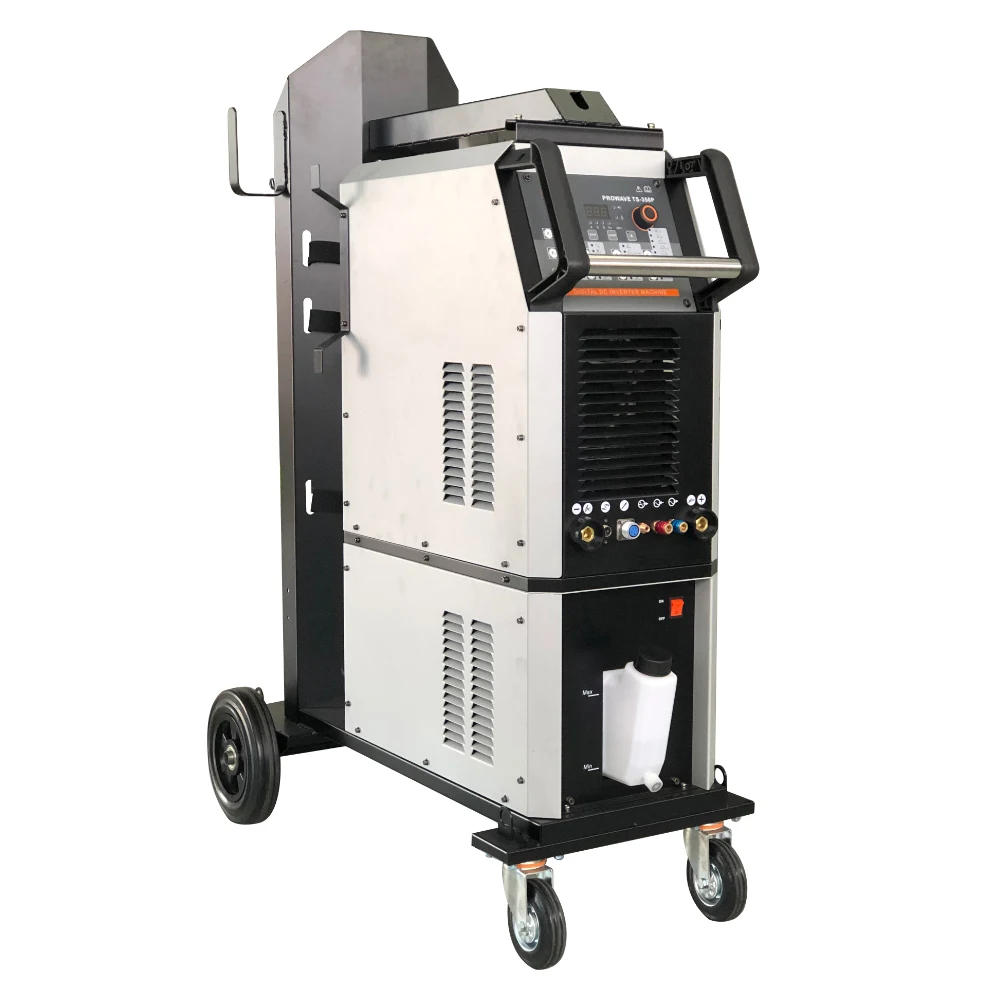

Industrial Pulse TIG 350A AC Dc Inverter Welder Stainless Steel Aluminium Welding Machine Welder |
||||||
Features |
The WSME-350T is full digital control, AC/DC, Stick /HF TIG power source. Combine this with features like high frequency start, up/down slope, welding program save/load, pulse on AC or DC, pulse frequency up to 2KHz and you’ve got the ultimate unit designed for precision TIG welding of all weldable materials. All welding parameters are variable for complete adjustment of the welding process. Save/Load weld programsAll welding parameters are adjustable Embedded micro process or with digital controls · Single index control knob · Exceptional AC welding characteristics · Exceptional DC welding characteristics · Easy to use digital display and panel controls · HF starts TIG & Stick weld operations · 2T, 4T with up/down slope |
||||||
MODEL |
WSME-350T |
||
Input Voltage |
380±15%V 3PH 50/60Hz |
||
Input Current |
21A |
||
Rated Input Power |
4.5KVA |
||
Open Circuit Voltage |
88V |
||
Duty Cycle (40℃) |
60%@350A |
||
Efficiency |
73% |
||
Welding Current |
10-350A |
||
Load Voltage |
TIG: 24V |
MMA: 34V |
|
Pulse Frequency |
0.2~2000Hz |
||
Protection Class |
IP21 |
||
Insulation Class |
H |
||
Machine Dimension |
605*295*625MM |
||
Net Weight |
50KG |
||
Package Dimentsion |
70*37*68CM |
||
Gross Weight |
60.2KG |
||
