Product Name: |
Pulse TIG 200A Custom High Quality Dc Inverter Stainless steel Welder machine welding |
||||||
Features |
IGBT INVETER technology, high reliability. High success rate of arc initiation, stable welding current and good arc stiffness. DC TIG welding, DC pulse TIG welding, DC manual welding, DC pull argon arc welding four functions, a wide range of applications. Pulse current, base current, pulse frequency and pulse width can be adjusted infinitely, suitable for welding under various conditions. |
||||||
Model |

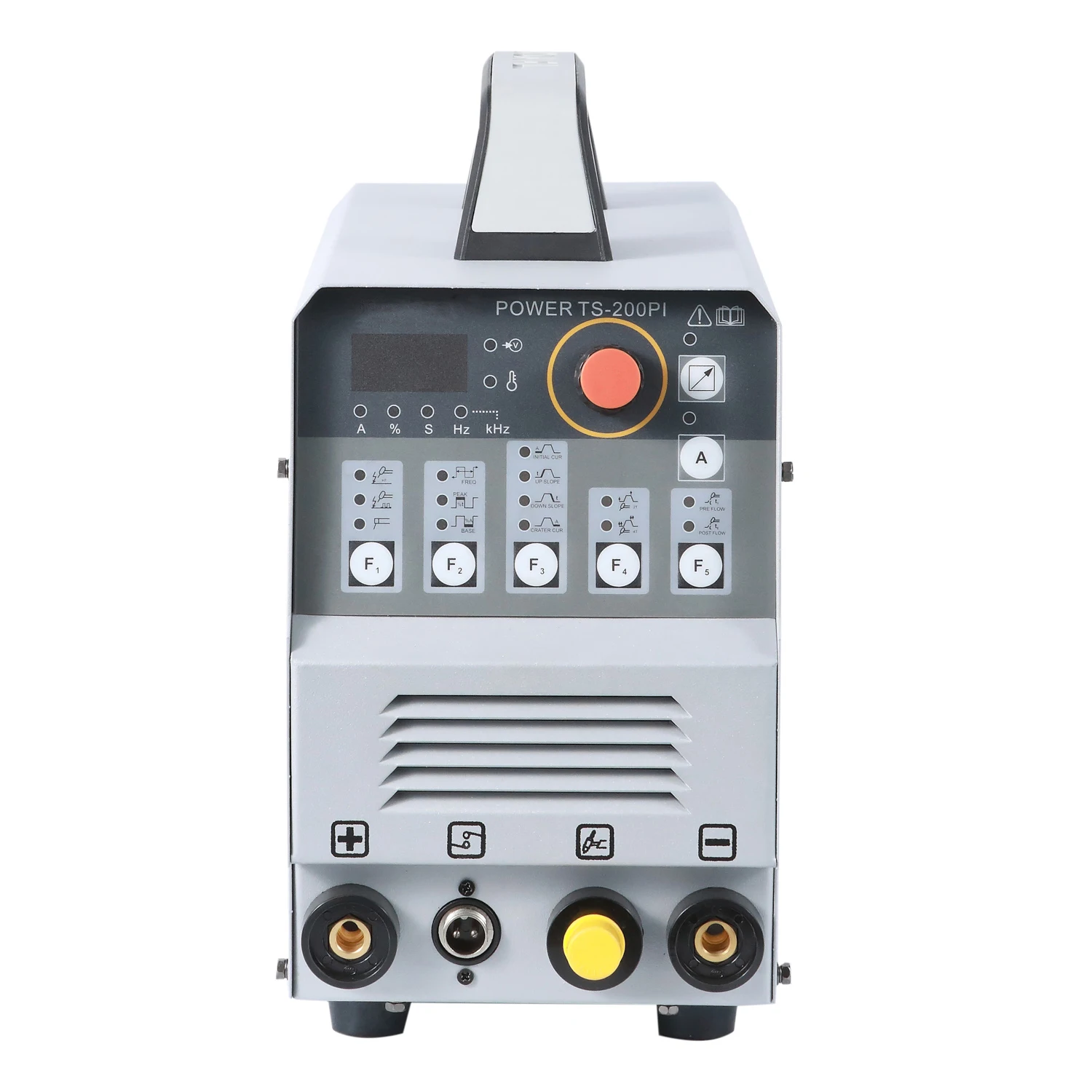

POWER TS 160Pi |
POWER TS 200Pi |
Rated Input Voltage(V) |
1~220 1ph |
1~220 1ph |
Rated Input Power(kVA) |
3.3 |
4.5 |
Rated out Voltage(V) |
66 |
66 |
Rated input Current (A) |
15 |
21 |
Output Current Range(A) |
5-160 |
5-200 |
Rated Duty Cycle (% ) 40â |
TIG:200A 30%,118A 100% |
TIG:200A 30%,118A 100% |
MMA:160A 30%,95A 100% |
MMA:160A 30%,95A 100% |
|
External Size L*W*H(mm) |
420*202*343 |
420*202*343 |
Weight (kg) |
7 |
7.2 |
Efficiency(%) |
â§81 |
â§81 |
Insulation grade |
H |
H |
Protection class |
IP23 |
IP23 |
