Product Name: |

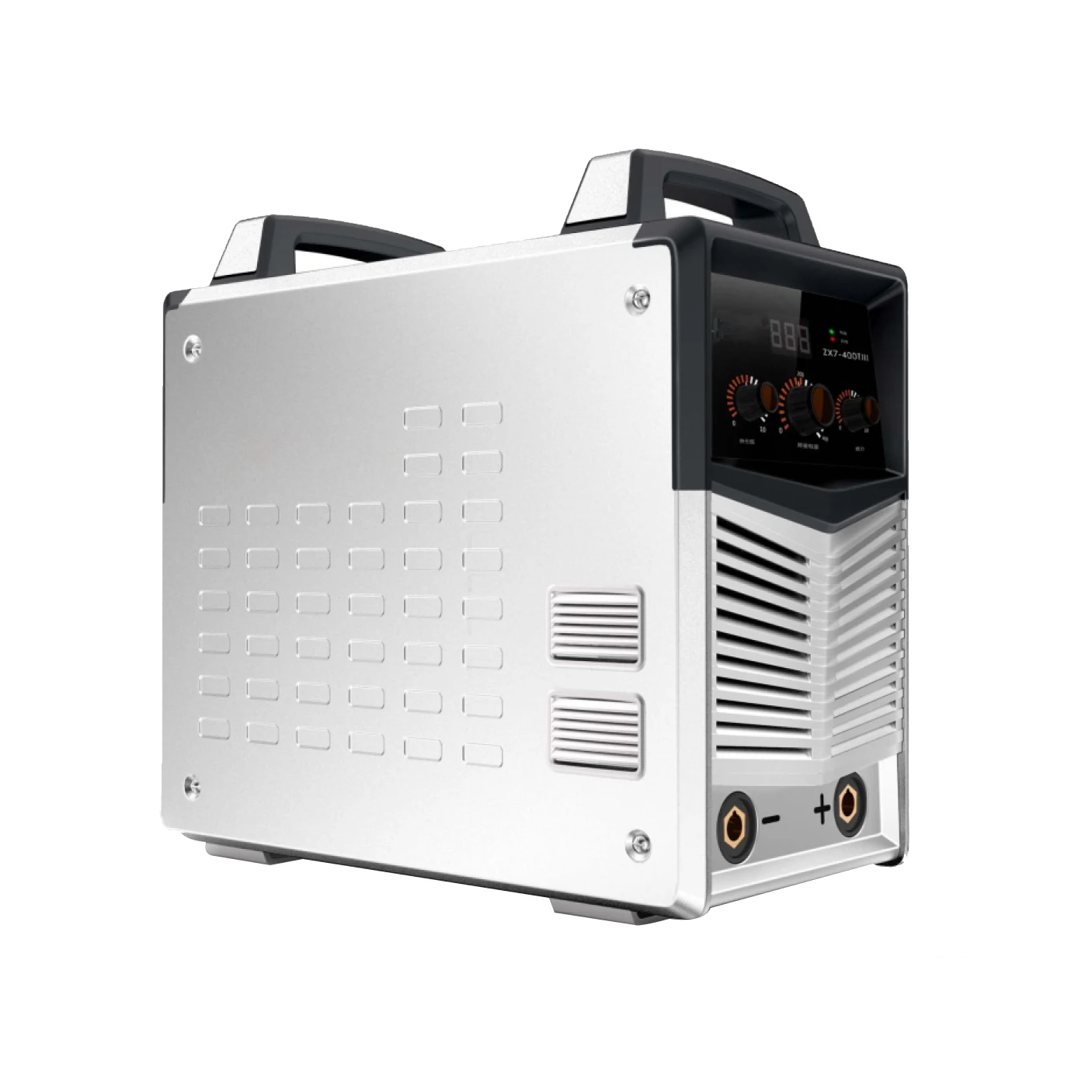

Industrial Heavy Duty MMA TIG ZX7-500T IGBT Inverter MMA Long Distance 5.0 Electrode Welding Machine |
||||||
Features |
1. Digital 32-bit chip processor, fast computing speed, agile arc dynamic reflection. 2. The core components adopt industrial-grade IGBT module with high reliability. 3. The actual output current is 400A, the load duty cycle is 60%, and the 5.0 electrode can be welded for 24 hours without interruption. 4.35mm² cable lengthened to 200 meters, it still can weld 5.0 electrode. 5. At the same time, it has the functions of anti-electric shock, anti-stick strip, thrust and thermal arc initiation, which can easily realize arc initiation and welding process, and effectively protect the safety of the operators. |
||||||
Advantages |
Digital 32-bit chip processor |
Industrial-grade IGBT module |
200 meters cable to weld 5.0 electrode |
Digital display ampere |
|||
Input Voltage |
380V 3ph 50/60Hz |
Rated Output Voltage |
36V |
Insulation Class |
H |
Open Circuit Voltage |
70V |
Duty Cycle (40°C) |
60%@400A, 100%@310A |
Welding Current |
40~400A |
Protection Class |
IP21S |
Dimensions |
471X252X468mm |
Weight |
21.5KGS |
Electrode Diameter |
1.6~5.0mm |
