Product Name: |

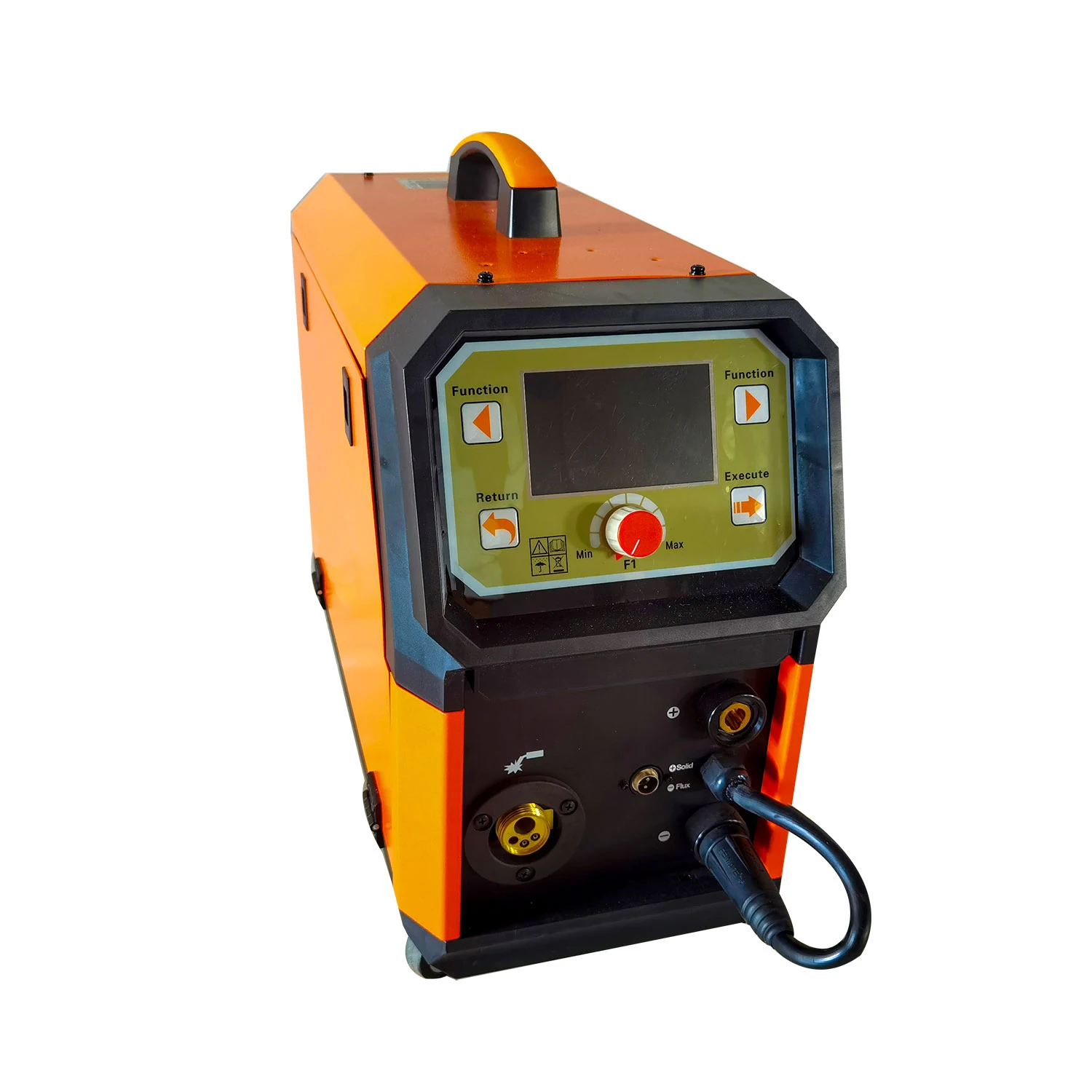

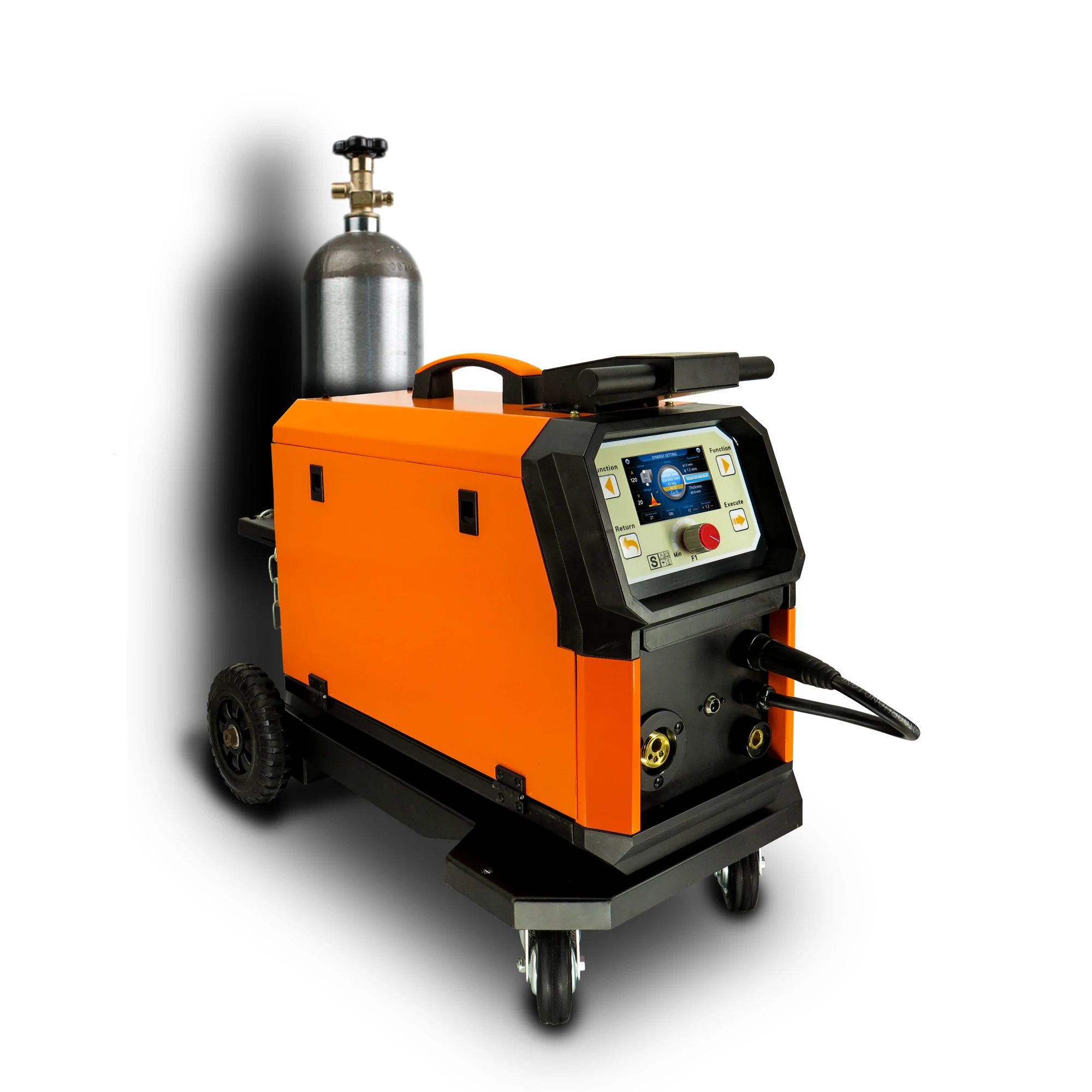

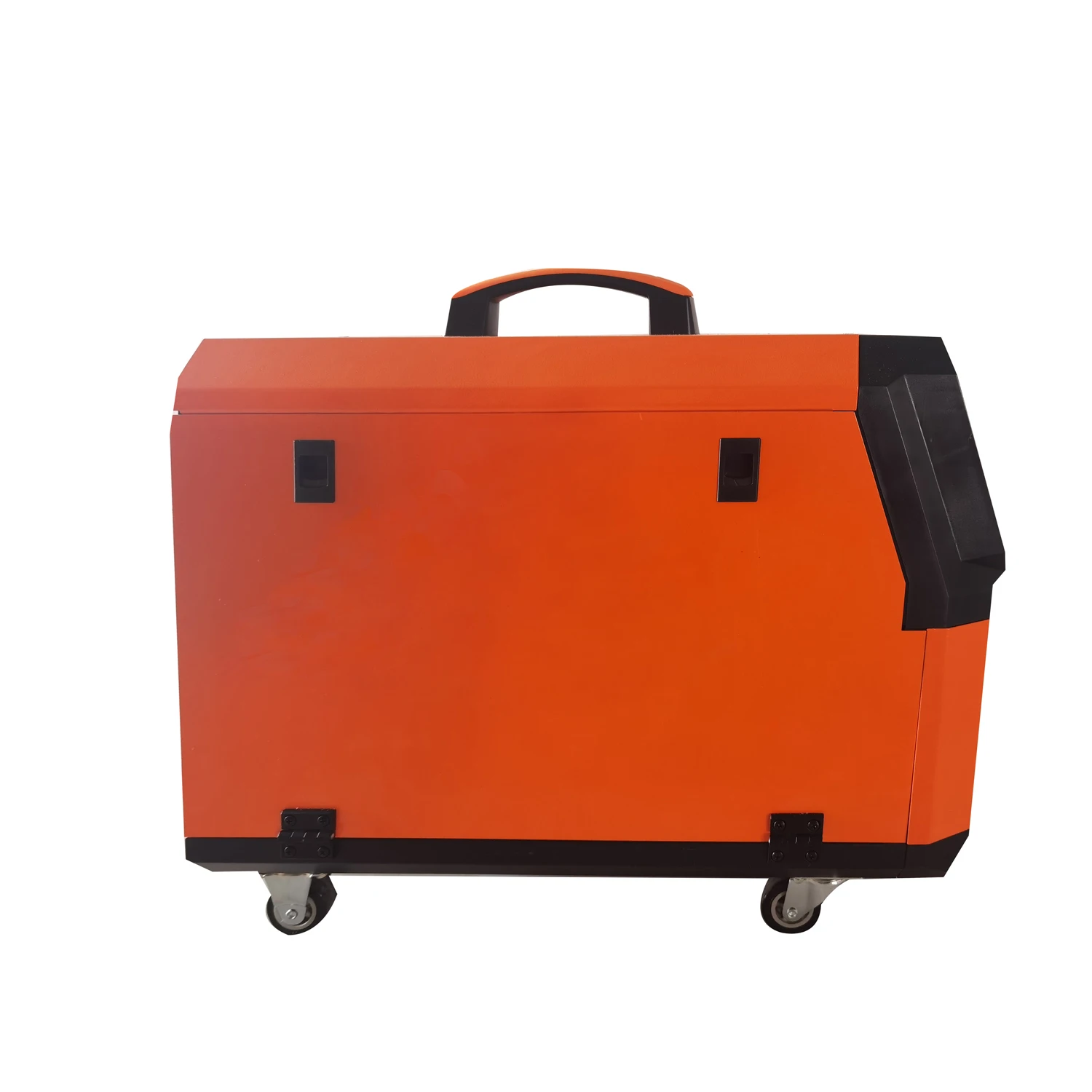

Multi Function LCD Panel MIG TIG MMA Welder 5 15KG Feeder welding machine with Cylinder Cart |
||||||
1. MIG-200GDL is one of the LCD series products, it has a multilingual and friendly control system, offers a quick-use mode for fast welding jobs, and the expert mode which can apply professional welding data settings. 2. Every MIG-200GDL is equipped with a 5/15kg wire spool and 4 roll gear drive feeder, which is made for efficient and quality welding. 3. MIG-200GDL also has an aluminum welding kit, it can be use with single pulse or dual pulse function, to ensure a reliable aluminum welding performance. |
|||||||
Features |
1. IGBT Technology. 2. 5-inch color LCD display. 3. 18-set Job memories. 4. MIG/LIFT-TIG/MMA functions. 5. 5/15kg wire spool, 4-roll drive feeder. 6. Gas cylinder cart. 7. Quick use mode/expert mode. 8. Steel/Stainless steel/Aluminum...welding. 9. Non pulse/Single pulse/Dual pulse. 10. 2T/4T/S-2T/S-4T/SPOT. 11. Over heating/Over current protection. |
||||||
Accessories |
24KD MIG Torch (3m). Earth clamp with Cable (3m). 36V Heating gas regulator. M5 Allen key 1pc. Hose Clamp 2pcs. User manual |
||||||
Model |
MIG 200GDL |
||
Rated Input Voltage(V) /Frequency (Hz) |
1~220±15% / 50 |
||
Rated Input Power(kVA) |
9.6 |
||
Output Current Range(A) |
MMA |
30~200 |
|
TIG |
10~200 |
||
MIG/MAG |
40~200 |
||
Output Voltage Range(V) |
MMA |
21.2~32 |
|
TIG |
10.4~22 |
||
MIG/MAG |
16~32 |
||
Duty Cycle 40℃ |
60% |
||
Applicable Wire / rod diameter (mm) |
0.8~1.2 |
2.0~5.0 |
|
External Size L*W*H(mm) |
760X400X630 |
547X262X501 |
|
Weight (kg) |
37 |
27 |
|
Efficiency(%) |
93 |
86 |
|
Insulation grade |
H |
H |
|
Protection class |
IP21S |
IP21S |
|
