Product Name: |

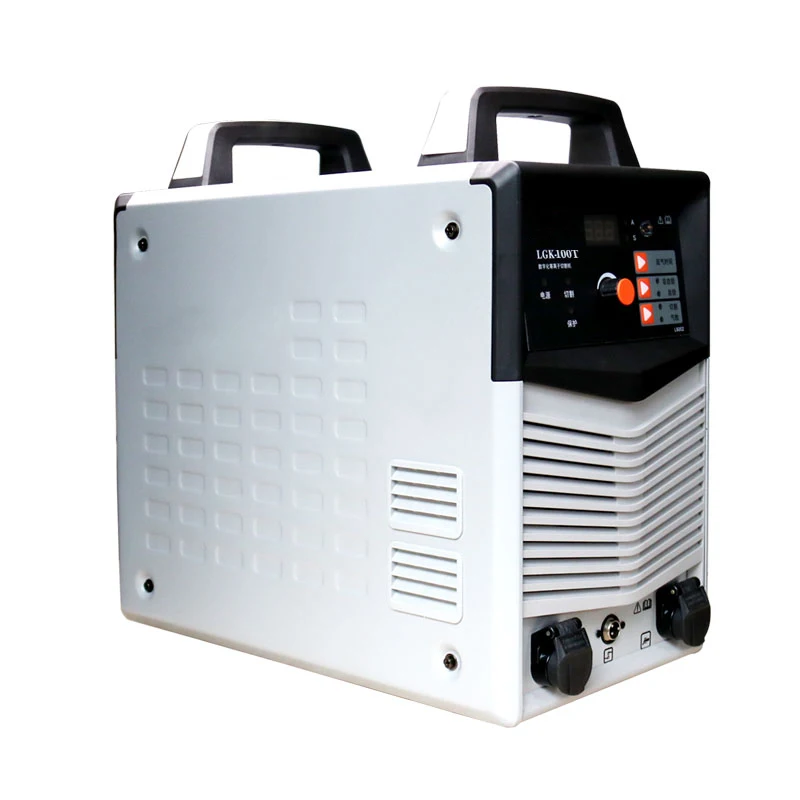

OEM Digital Arc Cut Igbt Inverter Air Plasma Cutter Portable Cutting Machine |
||||||
Features |
1. The main components of the equipment adopt IGBT inverter technology, with high reliability, high efficiency and light weight. 2. Precise preset cutting current without pole regulation. 3. High success rate of arc initiation, stable cutting output current, good arc stiffness, smooth incision, fast and smooth cutting. 4. It can be used to cut cooperating with CNC cutting equipment 5. Strong resistance to network voltage fluctuation, the normal fluctuation of the power grid has no effect on the cutting current. |
||||||
Model |
LGK 80T |
LGK 100T |
LGK 120T |
Input Voltage |
3~AC380V±10% 50/60Hz |
3~AC380V±10% 50/60Hz |
3~AC380V±10% 50/60Hz |
Input Current |
16A |
26A |
30A |
Insulation Class |
H |
H |
H |
Open Circuit Voltage |
270V |
324V |
324V |
Output Current Range |
30~80A |
28~100A |
28~120A |
Duty Cycle (40°C) |
60% |
100% |
60% |
Efficiency |
90% |
92% |
92% |
Protection Class |
IP21S |
IP21S |
IP21S |
Dimensions |
471*252*468mm |
547*262*601mm |
547*262*601mm |
Weight |
23KG |
30KG |
30KG |
