Product Name: |

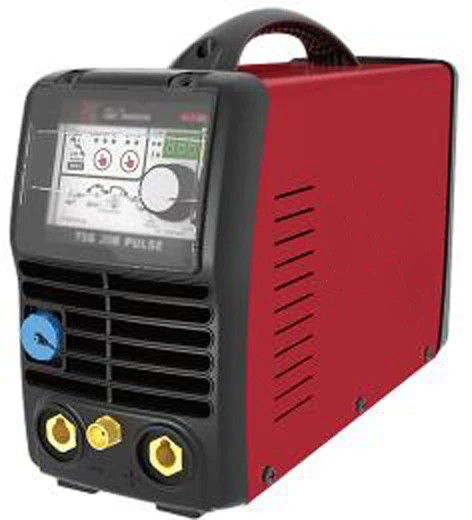

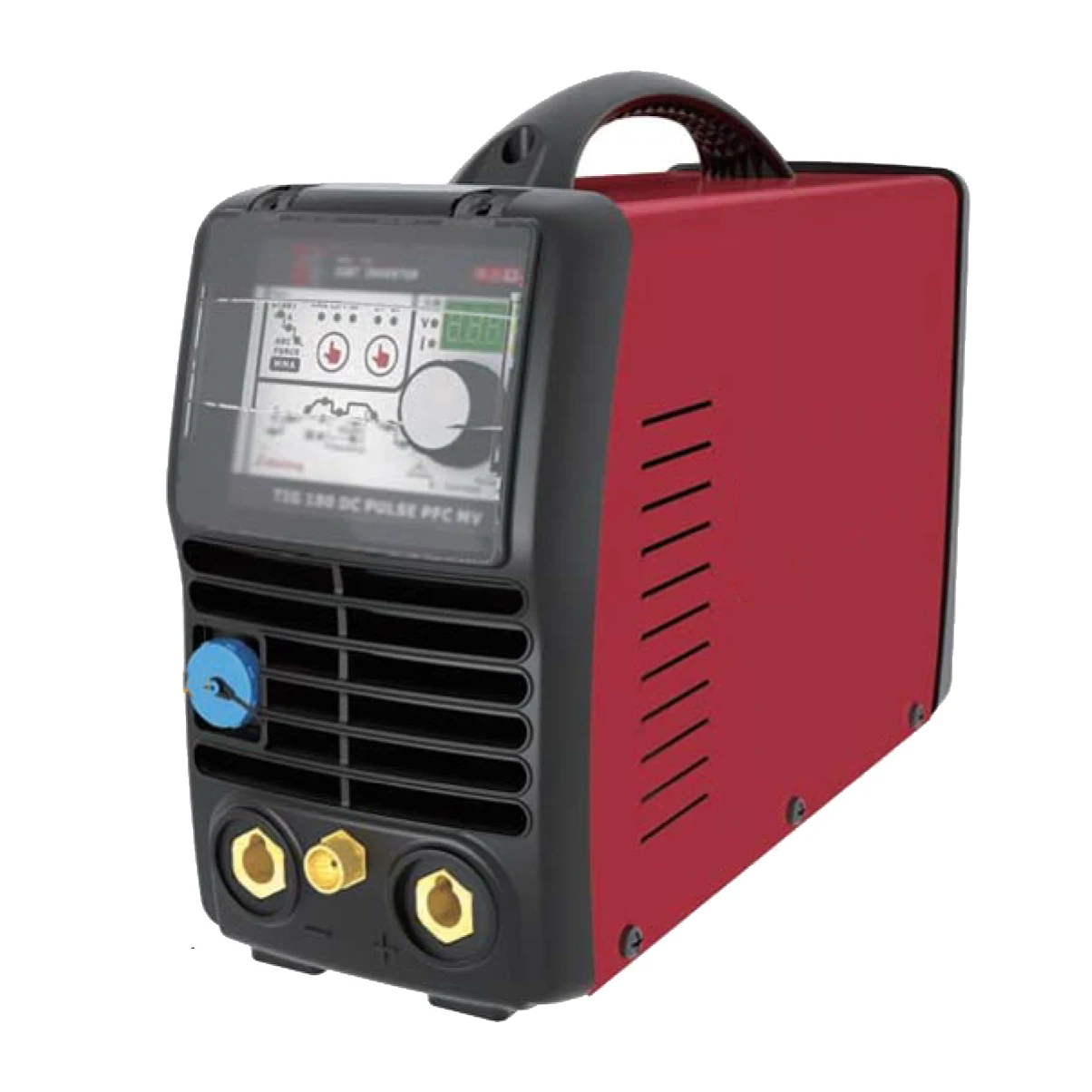

TIG 200 Inverter DC Pulse Argon Arc Welding Machine welder |
||||||
Dimensions: |
465*146*278mm |
||||||
Features |
Excellent welding performance
1. Pulse: High performance on ultra thin surface with no deformation.
2. Protections: Equipped with temperature, voltage and current sensors for high protection.
3. Generator friendly: Designed to work with diesel generators and to avoid failures due to its voltage spikes.
4. Pre/Post Flow: Selectable Pre/Post Flow Time.
5. Multipurpose: MMA/LIFT TIG/HF TIG
6. Up/Down Slope: Selectable Up and Down Slop Time.
|
||||||
Input Voltage |
1~230V 1PH 50/60Hz |
Rated Input Current |
34~44A |
Insulation Class |
H |
Rated input capacity |
4.3KVA(TIG); 6.2KVA(MMA) |
Duty Cycle (40°C) |
35%@200A, 60%@155A, 100%@120A |
Welding Current |
5~200A |
Protection Class |
IP23 |
Dimensions |
465*146*278mm |
Weight |
9.5KG |
