Product Description
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-0

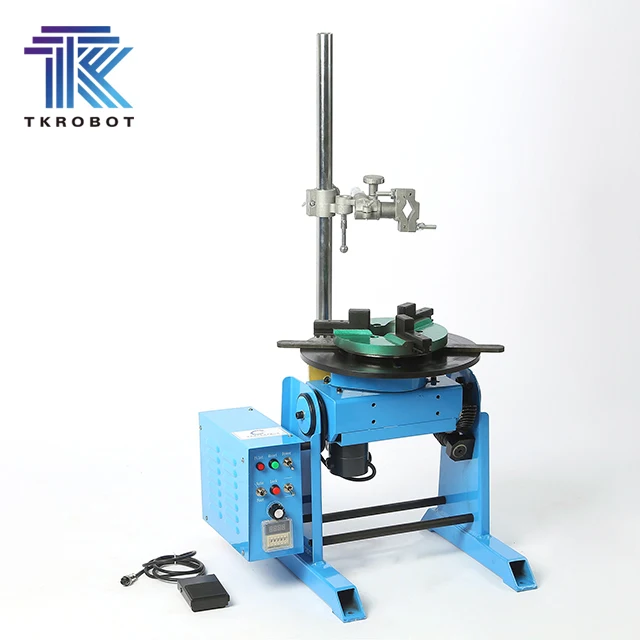

HD-100 Rotary Weding Table Positioner.

HD‐100 welding positioner are designed to give maximum positioning flexibility by using the tilting and rotation of the table to manipulate the work piece into the appropriate angle for welding on valve and flange as manufacturing requirements These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work.

Features

For annular welding, cutting, polishing and assembly. Easy to set up a small welding center equipped with chuck, tracks, torch holders or stop cone. DC infinitely variable speed control system.
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-1
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-2
Specification
Model
NC-100
NC-200
NC-300
Input Voltage
AC 110V/200V     50/60HZ
AC 110V/200V    50/60HZ
AC 110V/200V    50/60HZ
Load Capacity
100kgs
200kgs
300kgs
Worktable Diameter
400mm
400mm
500mm
Tilt Angle Range
0-90 degree / hand wheel
0-90 degree / hand wheel
0-90 degree / hand wheel
Height of Table
504mm
504mm
602mm
Motor Power
120W
120W
200W
Weight
72kgs
75kgs
200kgs
Input Voltage
1ph 110/220V 50~60Hz
1ph 110/220V 50~60Hz
1ph 110/220V 50~60Hz
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-3

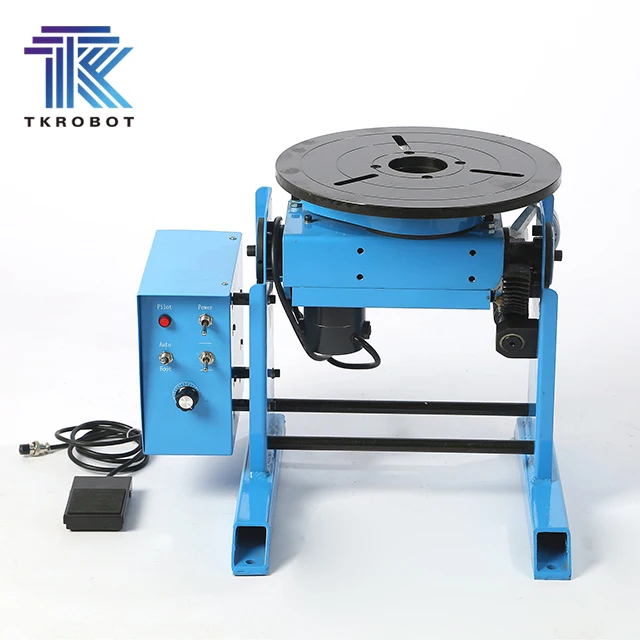

【SMOOTH ROTATION】-This rotating welding positioner is driven by high quality DC motor.
The worktable runs smoothly, which can realize step-less speed regulation. It also features a large adjustment range and high adjustment precision.
【TURNABLE TABLE】-The tile range of the rotary table is 0-90°. And the angle can be adjusted by flipping the handwheel for easy and flexible operation. Therefore, workers can easily complete the welding at all angles.
【ADVANCED & HUMANE DESIGN】-The unique anti-electromagnetic design can reduce the high-frequency interference of TIG welding effectively and improve the welding quality. The adjustable-welding gun support can be furnished to fix the position of the welding torch, and the footswitch simplifies operation.
【TIMING CONTROLLER】-The timing control allows you to make settings based on actual conditions, avoiding accidents effectively.
【WIDE APPLICATION】-The rotary welding positioner is suitable for ring welding up to 100kg. It can be used for cutting, grinding, assembly, testing, which also supports CO2 welding, MIG, MAG, TIG welding and so on.
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-4
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-5
Company Profile
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-6
Shanghai Fengling Company, founded in 2000, is a company focusing on professional services in the welding industry. It mainly provides customers with integrated services of welding materials, welding equipment, welding automatic production lines and welding process research and development. Provide technology and services for many landmark projects and well-known enterprises, cooperation projects include (Shanghai Center, Hongqiao Transportation Hub, Jin Mao Tower, China National World Expo, National Convention and Exhibition Center, Scientist Building, etc.), cooperative enterprises (Shanghai Construction Group, MCC Steel Group), more than 20 years of accumulated very rich and valuable professional service experience. Our company has a high-quality welding technology central laboratory, with its own brand TKweld and welding robot TKrobot. At the same time, it cooperates with the world's well-known welding power supply and welding robot brands, welding power supply includes (Lincoln of USA, SAFRA of France, Kemppi of Finland, ESAB of Sweden, OTC of Japan, Panasonic, China Aotai, Megmeet, etc.), and welding robots have four major families in the world (Fanuc, Yaskawa, Kuka, ABB, etc.). FengLing aspires to become an integrated professional technical service company with great influence in the welding industry.
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-7
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-8
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-9
product tkweld custom automatic cnc welding positioner customizable for 100kg 200kg 300kg 500kg capacities 30kg to 600kg-10
FAQ
1. Delivery time？
For stocks order, the delivery time is 3-7days after receiving the payment.
For OEM order, delivery time is 45 days after receiving deposit.
2. Can you provide ODM/OEM service?
Yes we can provide ODM/OEM service.

3. How about quality control about the goods?
We can provide inspection pictures or video for the products if you require.

4. How about the guarantee time?
It's within 1 year after goods is discharged in the destination.

5. why should you buy from us not from other suppliers?
One-stop service for Automatic welding machine, Welding robots, Manual welding and cutting machine equipment, Cold welding machine, Seam welding machine, welding and cutting accessories.

6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
