Product Name: |
Pulse TIG 200A Custom High Quality Welding Ac Dc Inverter Stainless steel Welder Machine Welding |
||||||
Features |

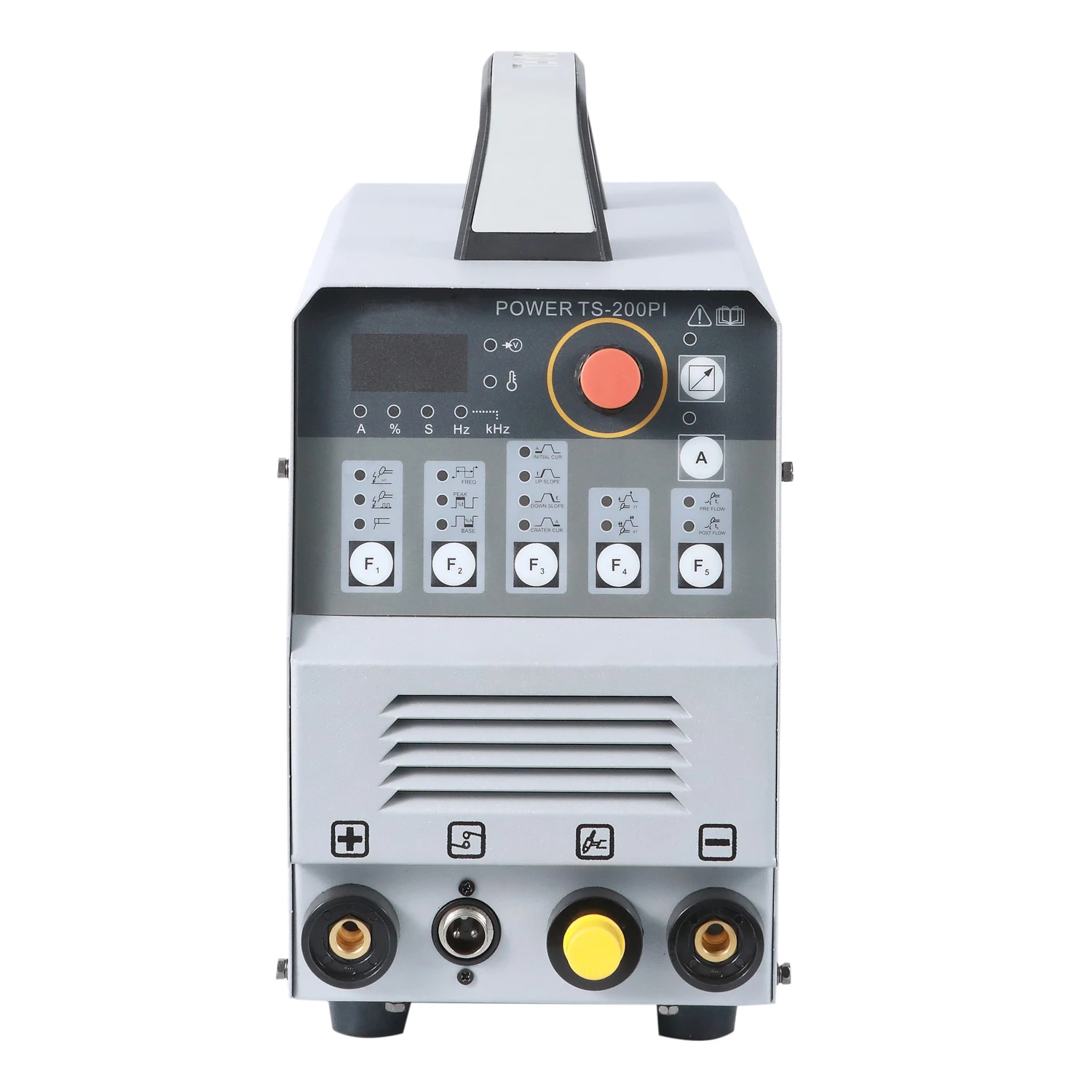

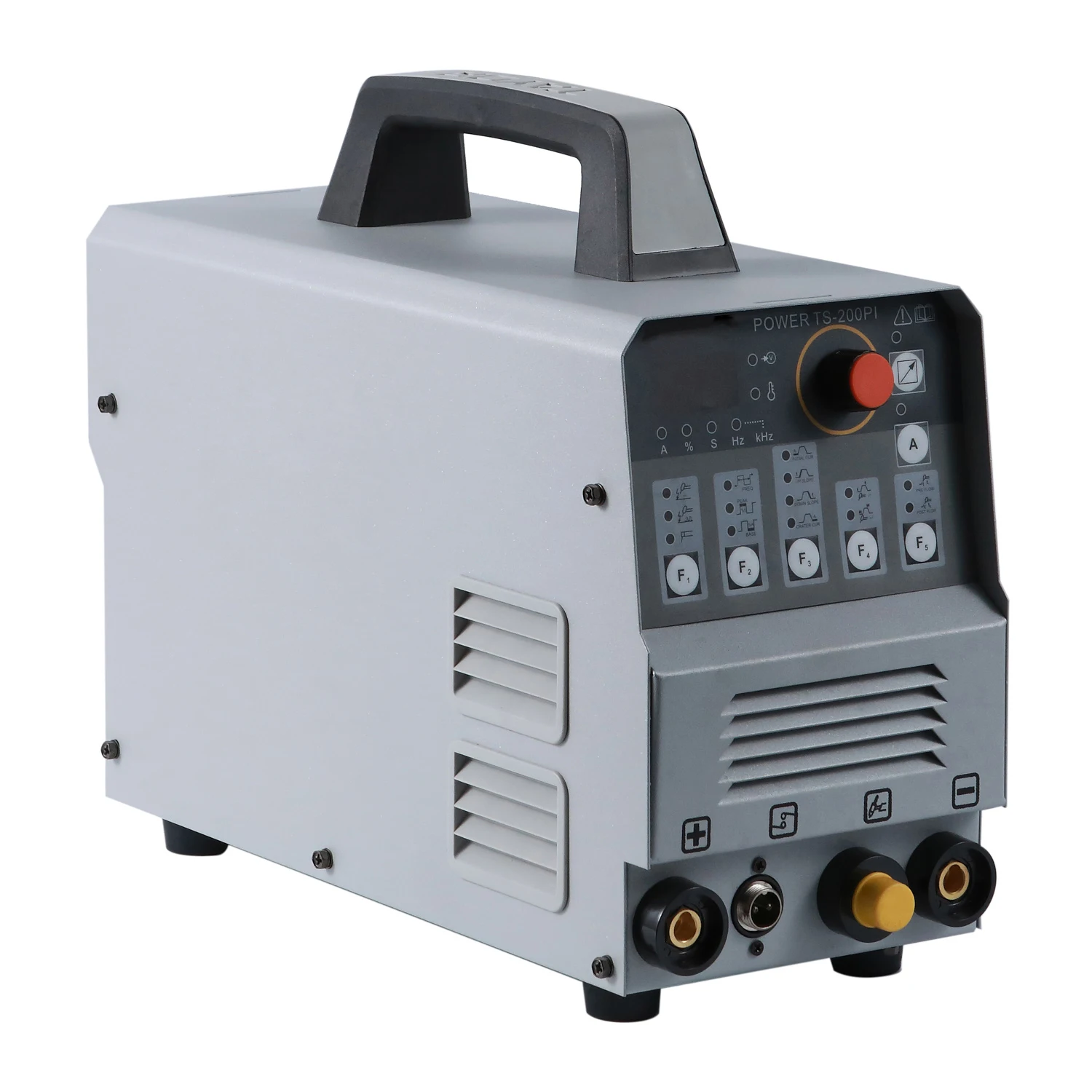

The POWER TS-200Pi is a single-phase DC inverter arc welding power source with Constant Current (CC) output characteristics providing the best combination of power, portability and convenience Designed for STICK and High Frequency TIG welding applications.
All machine are provided with a built in gas valve, up /down slope, high frequency starting, adjusts pre flow time, adjusts post flow time, DC pulse TIG, 2T and 4T function. A good welding performance is available when welding stainless, mild steels and easy start.
|
||||||

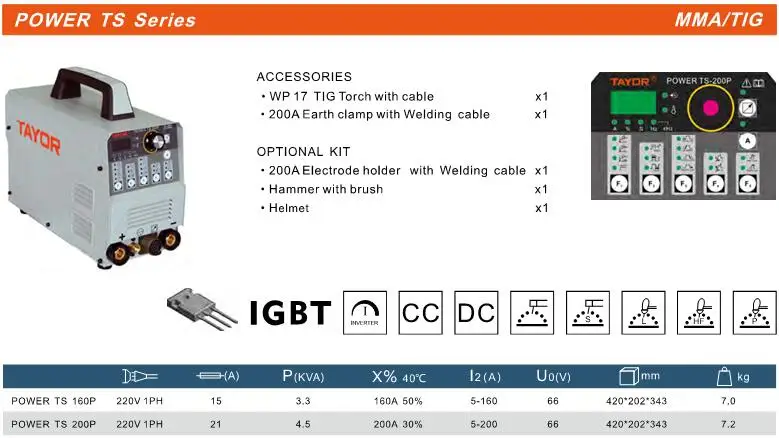

Model |
POWER TS 160P |
POWER TS 200P |
Rated Input Voltage(V) |
1~220 1ph |
1~220 1ph |
Rated Input Power(kVA) |
3.3 |
4.5 |
Rated out Voltage(V) |
66 |
66 |
Rated input Current (A) |
15 |
21 |
Output Current Range(A) |
5-160 |
5-200 |
Rated Duty Cycle (% ) 40℃ |
TIG:200A 30%,118A 100% |
TIG:200A 30%,118A 100% |
MMA:160A 30%,95A 100% |
MMA:160A 30%,95A 100% |
|
External Size L*W*H(mm) |
420*202*343 |
420*202*343 |
Weight (kg) |
7 |
7.2 |
Efficiency(%) |
≧81 |
≧81 |
Insulation grade |
H |
H |
Protection class |
IP23 |
IP23 |
