Product Name: |

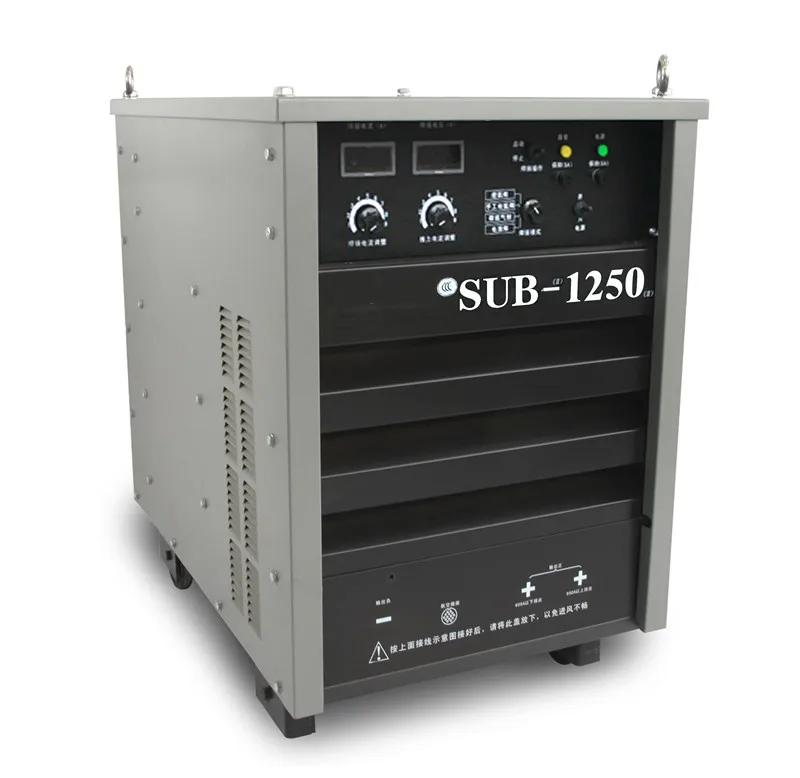

ULTRA SUB-1250 Submerged Arc SAW Welding Machine |
||||||
Customization |
Customized logo (Min. Order: 5Pieces) Customized packaging (Min. Order: 5 Pieces) Graphic customization (Min. Order: 5 Pieces) |
||||||
Products Description |
ULTRA SUB-1250 Submerged Arc Welding Machine Welding Technique Submerged Arc Welding, Carbon Arc Gouging Manual Arc Welding Electroslag Welding ULTRA SUB-1250 Submerged Arc Welding Machine SAW welder THE ULTRA SUB-1250 have excellent welding characteristics throughout the entire current and voltage range. The starting and reignition characteristics are particularly good. These power sources demonstrate good arc stability at both high and low arc Voltages. The continuously variable voltage control permits very precise adjustments of welding parameters. |
||||||
Characteristic |
1. The main return circuit adopts thyristor rectification circuit with double reversed star shape interphase reactor. 2. It is high reliable with multiple protection function 3. AC contactor has no load current pull-in, with very small impact current. 4. With compensation function on voltage fluctuation; effectively compensate the grid voltage fluctuation. 5. With ventilation structure. 6. Multi-characteristic output makes it is suitable for many kinds of welding technique, such as electroslag welding, submerge arc welding, carbon arc gouging and manual welding, etc. |
||||||
Condition: New |
Machine Type: Welding Manipulator |
Applicable Industries: Machinery Repair Shops, Farms, Construction works , Energy & Mining |
After Warranty Service: Video technical support, Online support, Spare parts |
Local Service Location: none |
Showroom Location: none |
Video outgoing-inspection: Provided |
Machinery Test Report: Provided |
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Video tech support and online support. |
Warranty of core components: 1 Year |
Core Components: Gearbox, Motor |
Place of Origin: China |
Brand Name: TAYOR |
Warranty: 1 Year |
Model: ULTRA SUB-1250 |
Key Selling Points: Low Maintenance Cost |
Rated Input Power (KVA): 72 |
Output Current Range(A): 250-1250 |
Rated Output Voltage(V): 44 |
40℃ Duty Cycle (%): 100@1250A |
Suitable wire diameter range (mm): 3.0-6.0 |
Efficiency (%): 83 |
Protection Class: IP21S |
Insulation Class: H |
Model |
ULTRA SUB-1250 |
Input Voltage |
380V 3ph 50/60Hz |
Rated Input Power (KVA) |
72 |
Output Current Range(A) |
250-1250 |
Rated Output Voltage(V) |
44 |
Duty Cycle (40°C) |
100@1250A |
Suitable wire diameter range (mm) |
3.0-6.0 |
Power factor cosΦ |
0.8 |
Protection Class |
IP21S |
Dimensions (mm) |
980X670X1000 |
Weight (KG) |
510 |
