Product Name: |

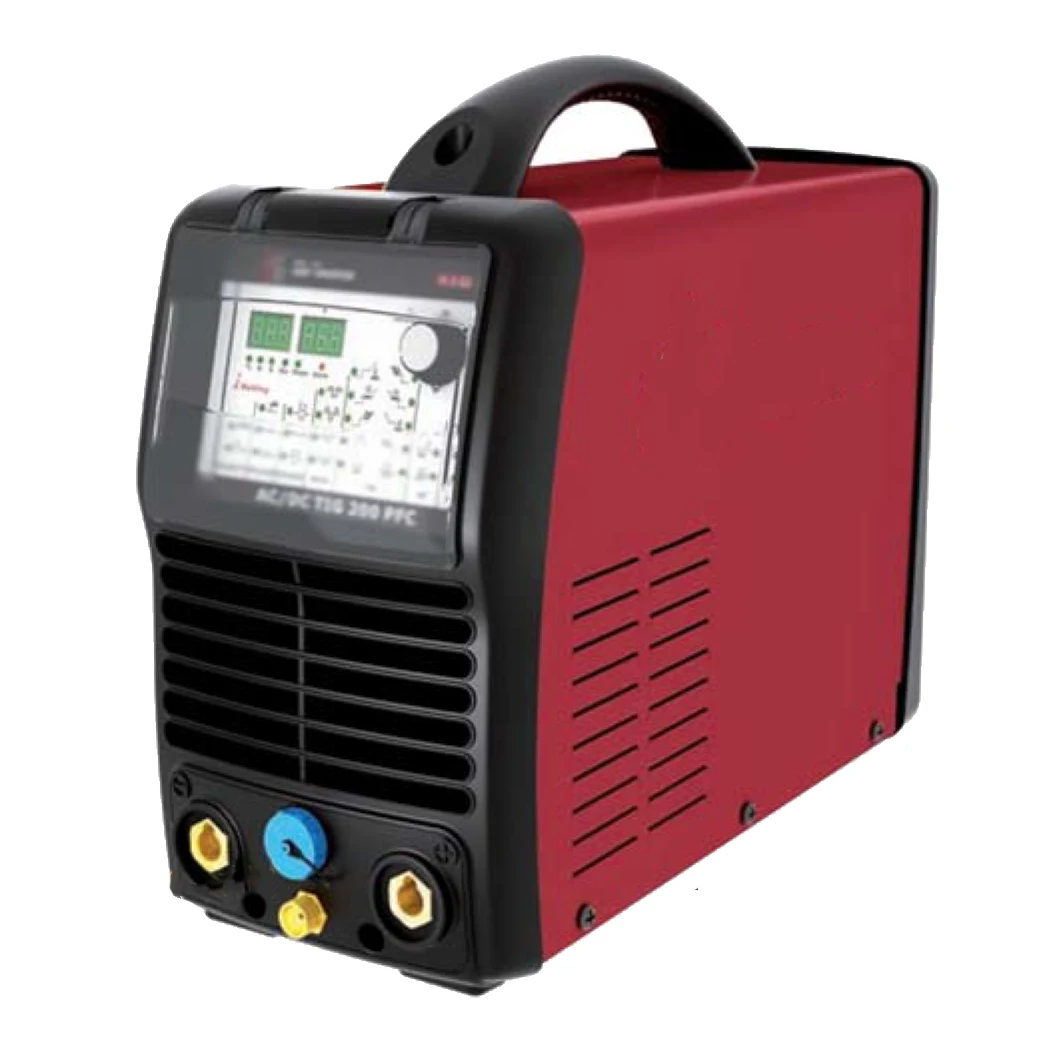

Remote Control Generator Friendly PFC AC/DC Inverter HF TIG Welder |
||||||
Dimensions: |
492*189*350mm |
||||||
Features |
Power factor more than 0.99. Multiple advamtages such as energy saving and wider input voltage, works with 110v and 220v.
Easy and intuitive parameter selection with Smart Snob.
Accessories including remote foot control, wireless remote control, remote control torch.
Multi-waveform output and AC Balance control.
|
||||||
Input Voltage |
90-275 |
Input Current |
21-35V |
Insulation Class |
H |
Duty Cycle (40°C)(MMA) |
4.2KW:130A 30%;110A 60%;80A 100%; 6.6KW:200A 35%;140A 60%;110A 100%;
|
Duty Cycle (40°C)(TIG) |
3.6KW:160A 60%; 125A 100%; 4.7KW:200A 60%;155A 100%;
|
No Load Voltage |
67V |
Protection Class |
IP23 |
Cooling |
AF |
Fre.HZ |
50/60 |
Pulse width range % |
5-95 |
Clearance effect (AC TIG) |
15-50 |
Dimensions |
492*189*350 |
Weight |
15kg |
