Product Name: |

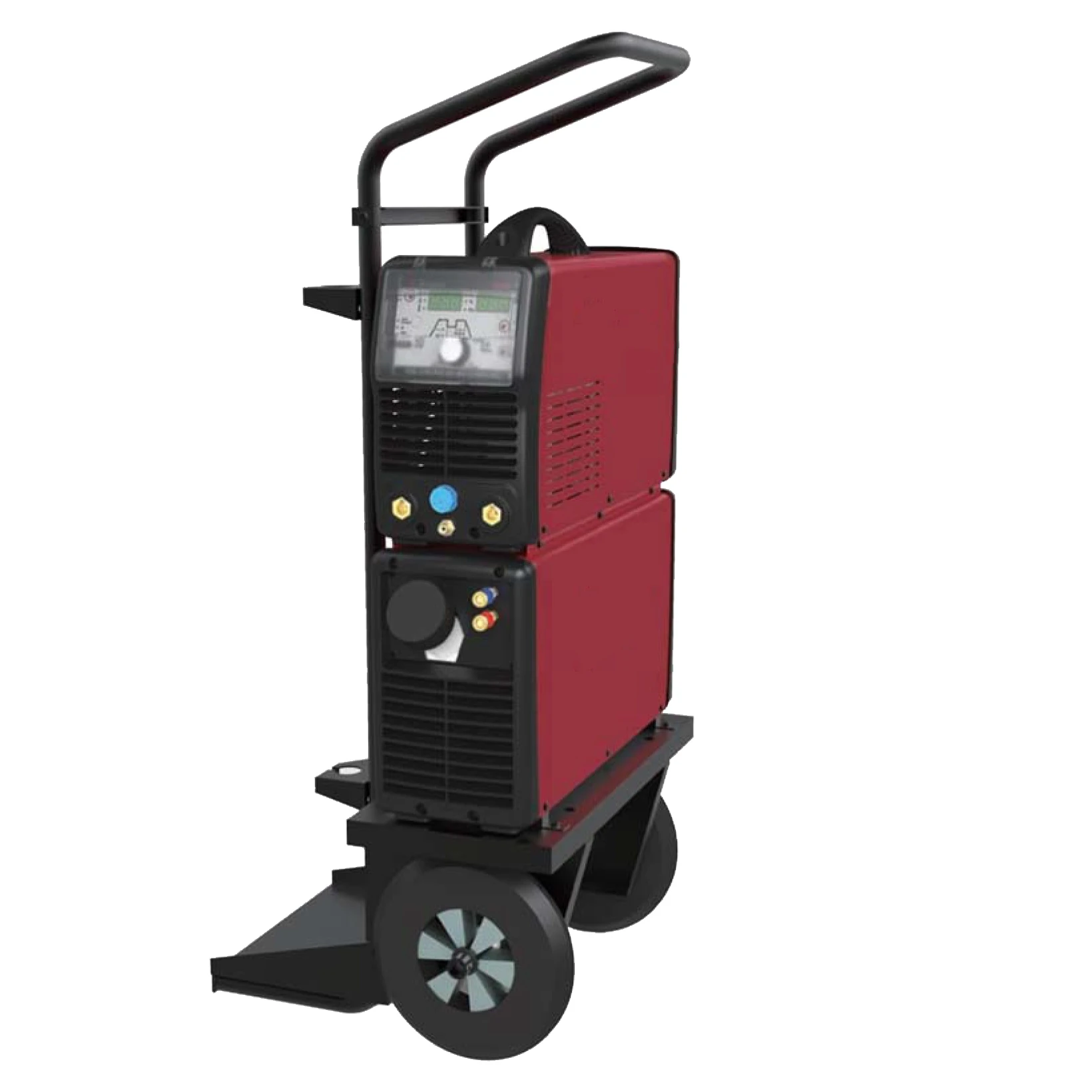

Remote Control PFC 1&3 Phase Generator Friendly DC Inverter HF TIG Welder |
||||||
Dimensions: |
580*189*350mm |
||||||
Features |
Power factor more than 0.99. MMA/TIG.
High frequency tig mode.
Selectable post flow time and down slope time.
Compatible of 1 phase and 3 phase.
Remote foot control and wireless remote control.
|
||||||
Input Voltage |
110-460V |
Input Current |
9-30A |
Input Power |
4-10KW |
Insulation Class |
H |
Duty Cycle (40°C) |
40%120-270A; 60%100-220A; 100%80-175A; |
No Load Voltage |
90V |
Effective Current |
6-33A; |
Protection Class |
IP23 |
Cooling |
AF |
Welding Current |
50-270A |
Fre.HZ |
50/60 |
AC Fre.HZ |
50-250 |
Dimensions |
580*189*350mm |
Weight |
20kg |
