Product Name: |

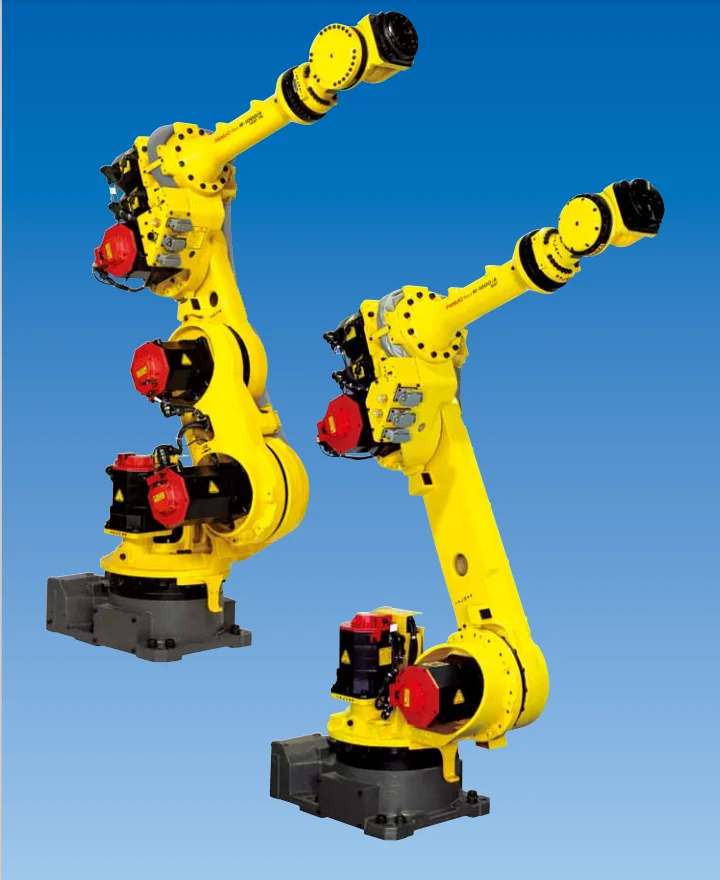

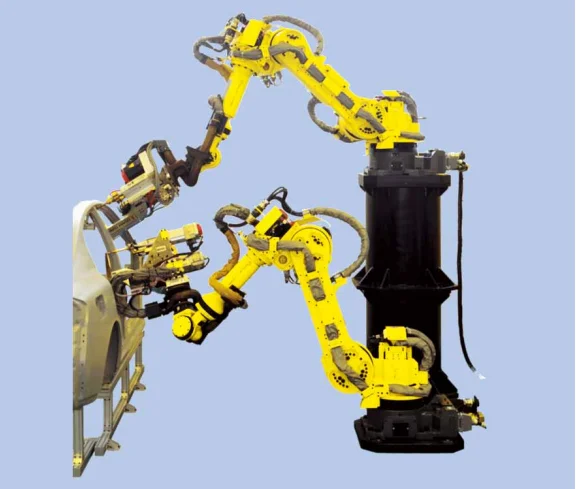

6 Axis FANUC Spot Welding Robot machine |
||||||
Advantages of robotic welding |
1. Increase production efficiency.
2. Improve product quality.
3. Lower requirements for workers’ operating techniques.
4. Reduce production costs. 5. Shorten the cycle of product modification and updating and the corresponding investment in equipment. 6.
Improve the working conditions of workers. 7. Enhance corporate image. |
||||||

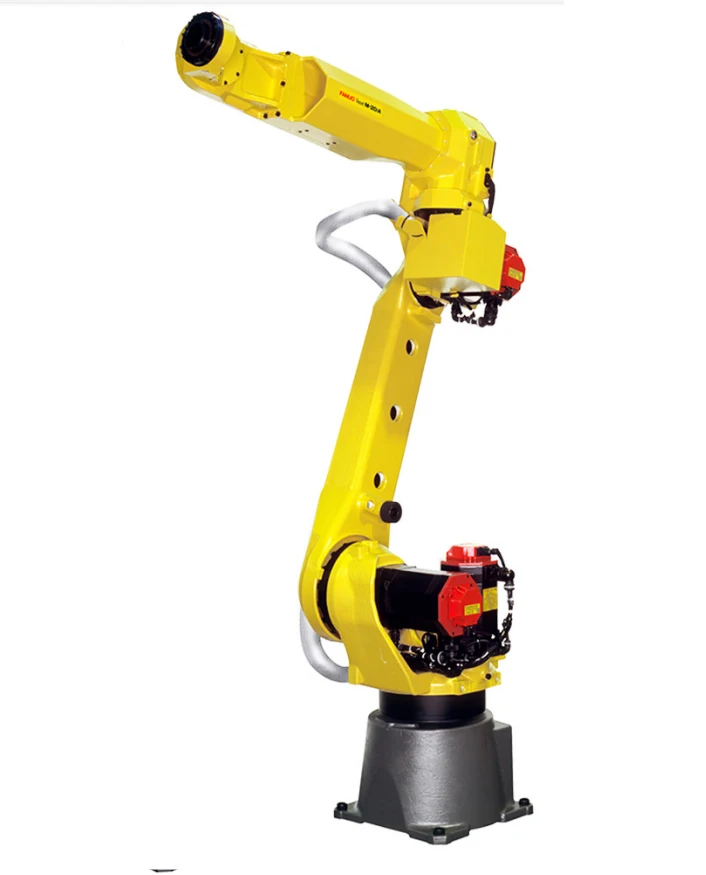

FANUC Robot M-10iD |
FANUC Robot M-10iD is a cable integrated small payload robot. 1.The unique gear drive mechanism realizes the high inertia and the
slim arm of the cable integrated robot. 2.The cables and tubes backside the tool control box can be integrated in the enlarged J1
hollow tube. 3.Various cables and tubes using for hand control can be integrated in the J3 arm due to the enlarged J4 and J6 hollow tubes. The tool control box can be compactly mounted backside of the J3 arm.
4.Higher rigidity of the arm provides high speed and high accuracy of the robot motion. It can enhance the productivity of the system.
5.Off-line teaching by ROBOGUIDE (Option) reduces touch-up cost.
6.Various intelligent functions with iRVision (integrated vision) and the force sensor are
available. |
||||||
Items |
Parameters |
||
Model |
R-1000iA/80F |
||
Controller |
R-30iB |
||
Controlled Axis |
6 |
||
Max. Payload |
80kg |
||
Repeated Positioning Accuracy |
±0.03mm |
||
Mechanical Weight |
620kg |
||
Reach |
2230mm |
||
Motion Range (°) |
J1Axis |
360° |
|
J2Axis |
245° |
||
J3Axis |
360° |
||
J4Axis |
720° |
||
J5Axis |
250° |
||
J6Axis |
720° |
||
Max. Speed (°/s) |
J1Axis |
170°/s |
|
J2Axis |
140°/s |
||
J3Axis |
160°/s |
||
J4Axis |
230°/s |
||
J5Axis |
230°/s |
||
J6Axis |
350°/s |
||
Allowable load moment at wrist |
J4Axis |
380 Nm, 38.8kgfm |
|
J5Axis |
380 Nm, 38.8kgfm |
||
J6Axis |
200 Nm, 20.4kgfm |
||
Allowable load inertia at wrist |
J4Axis |
30 kgm², 306.1kgfcms² |
|
J5Axis |
30 kgm², 306.1kgfcms² |
||
J6Axis |
20kgm², 204.1kgfcms² |
||
Installation Method |
Ground installing |
||
Power |
Three-phase 380V,50HZ/60HZ,3.6KVA |
||
Controller Weight |
200kg |
||
