Product Name: |

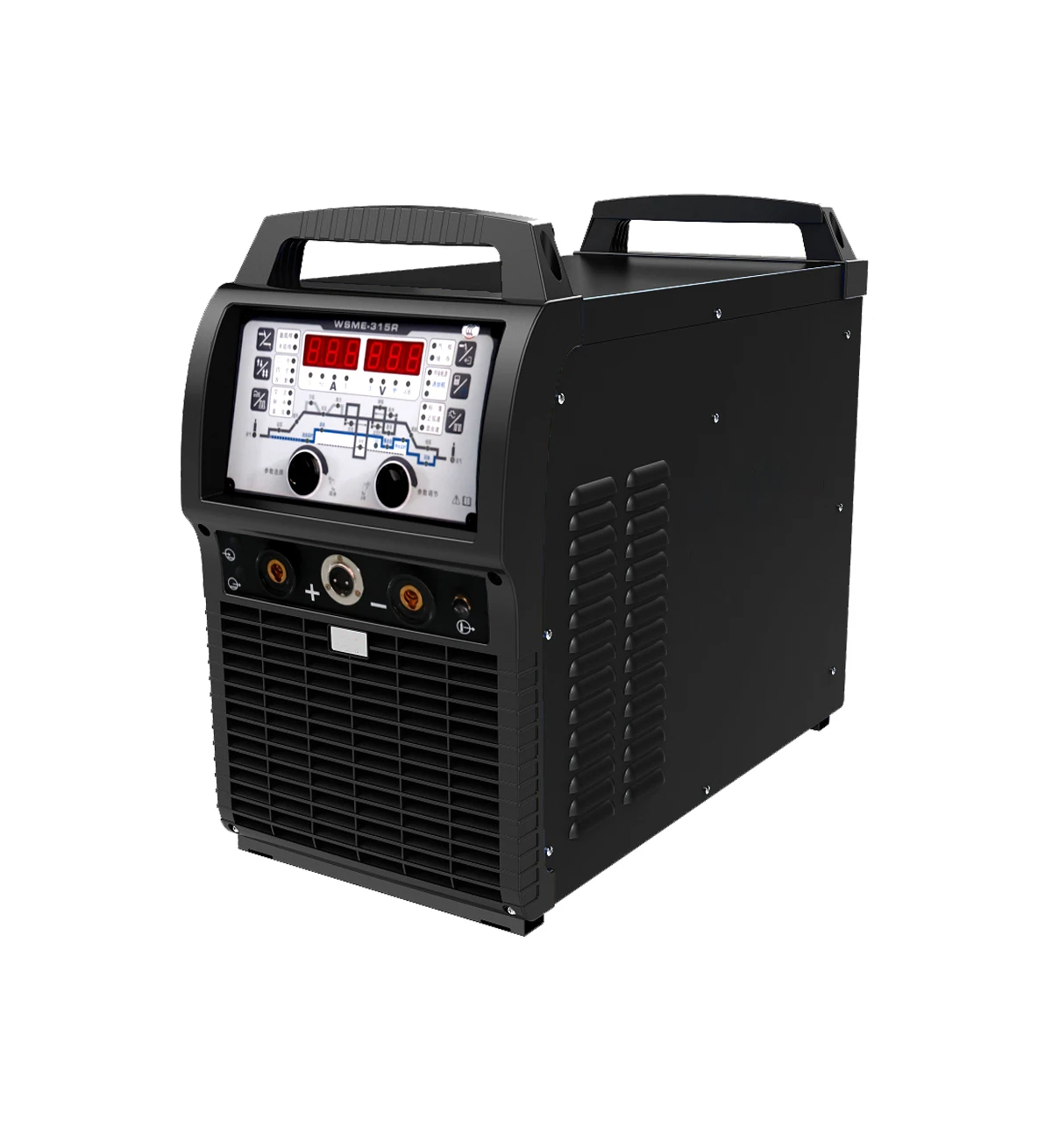

TIG Inverter AC Pulse Argon Arc Welding Machine for Robotic Arm |
||||||
Dimensions: |
655*325*560mm |
||||||
Features |
Excellent welding performance
1. Simple arc starting, stable arc, high welding quality. 2. In the AC argon arc welding state, there are a variety of waveforms to choose: standard square wave, sine wave, mixed wave, etc. 3. By adjusting the peak current, base current, pulse frequency, duty cycle and AC current, AC frequency and cleaning ratio, the required weld depth and width and the uniformity of surface ripple can be obtained to extend the life of tungsten electrode, especially suitable for automatic welding and robot welding. 4. Up to 10 sets of user-defined standard parameters can be stored for easy call. 5. Full digital high-precision wire feeding control system, two drive two slave encoder full digital control wire feeding device, even if the power supply voltage, wire feeding resistance and other external factors change, still can ensure the stability of wire feeding. 6. It is suitable for sheet welding of stainless steel, carbon steel, copper, titanium, aluminum and their alloy.
Additional Robotic Features
1. Open digital communication mode, the robot can control the welding machine current, wire feeding speed, arc starting delay wire feeding time, arc extinguishing back wire drawing length and other process parameters. 2. Digital communication interfaces such as DEVICENET, CAN, CANopen, 485, EtherneTip and other international standards CAN realize seamless integration with different brands of robots. 3. Integrated analog communication interface, current, wire feeding speed, arc, point wire feeding and other functions of remote control robot, plug and play. |
||||||
Input Voltage |
380V 3PH 50/60Hz |
Input Current |
36A |
Insulation Class |
H |
Rated input capacity |
13KVA |
Duty Cycle (40°C) |
60% |
Welding Current |
5~315A |
Protection Class |
IP23 |
Dimensions |
655*325*560mm |
Weight |
57KG |
