Product Name: |

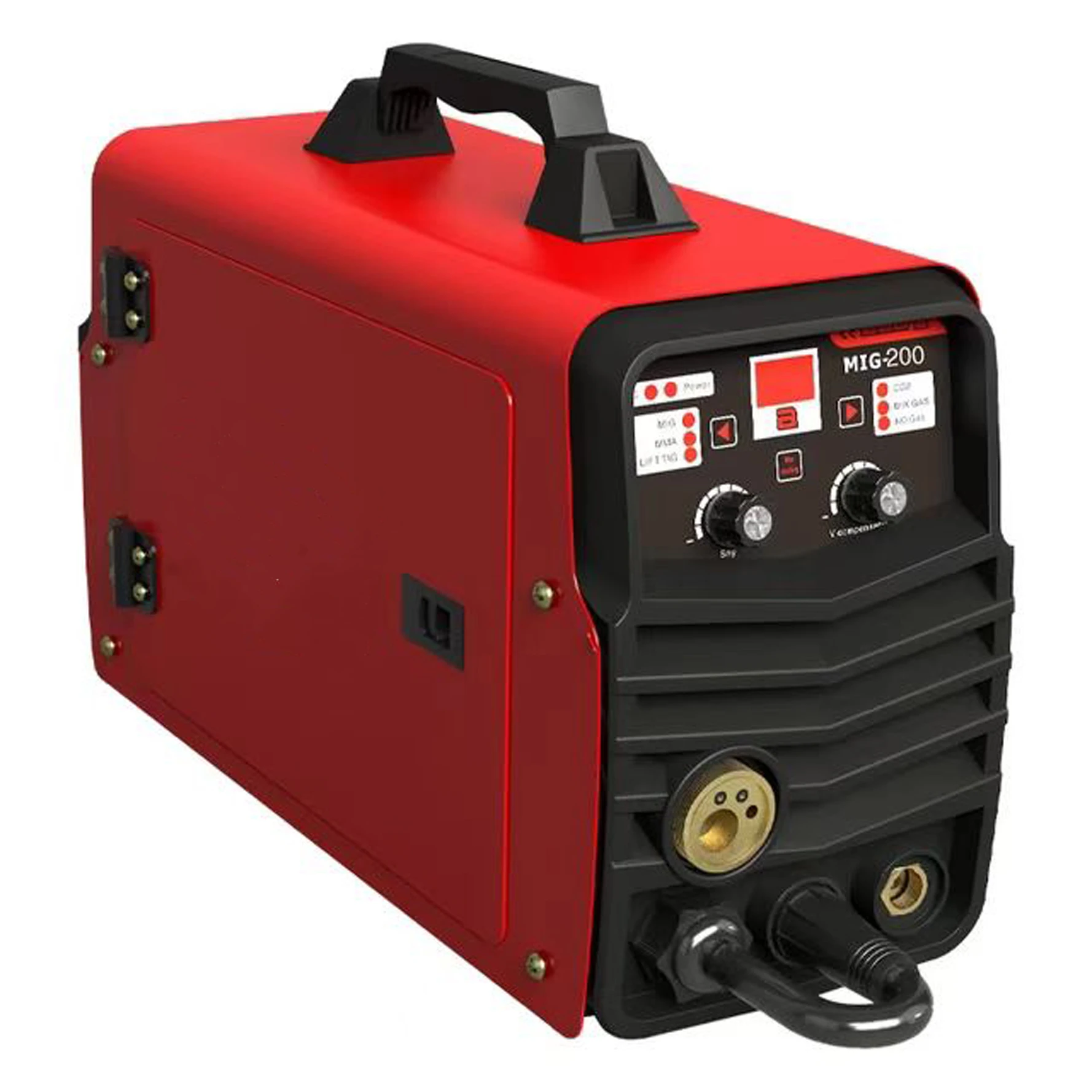

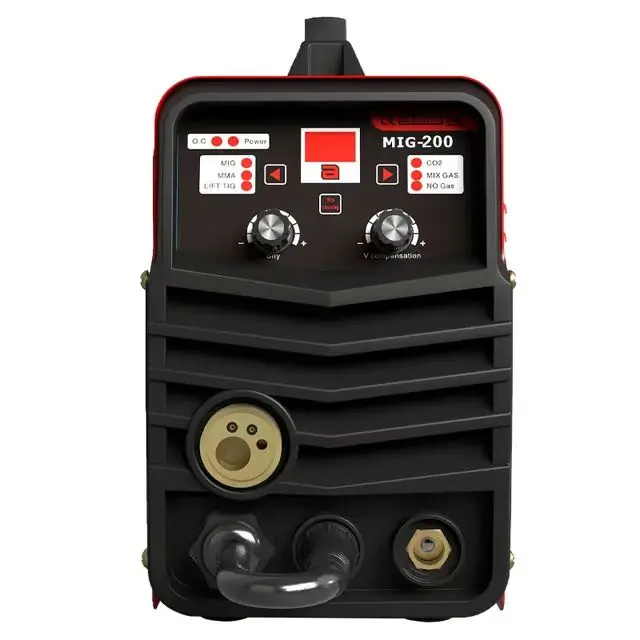

Economic DC Inverter 200E Dual Pulse MultiMIG Pulse Welding Machine Welder MIG Tig MMA Soldadura |
||||||
Dimensions: |
511×213×400mm |
||||||
Features |
1. Dual Pulse function: Allows to activate devoted pulse curves fro alluminum, mild steel, stainless steel and CuSi3.
2. Digital display: Variable amperage control with digital meter, for a simultaneous welding current and voltage display.
3. Spool: Capable of loading up to 5KG spool.
4. Arc Stability: Waveform control, for added stability of the arc, even at low currents.
5. Protections: Equipped with temperature, voltage and current sensors for high protection.
6. 440V Tested in production.
|
||||||
Input Voltage |
1-230V 1PH 50/60 |
Input Current |
41A |
Insulation Class |
H |
Open Circuit Voltage |
68 V |
Duty Cycle (40°C) |
100%@130A, 60%@160A, 40%@200A |
Welding Current |
40~200A |
Wire Diameter |
Fe: 0.6/0.8/0.9/1.0mm, Ss: 0.8/1.0mm, Flux Cored: 0.8/0.9/1.0mm, Al:0.8/0.9/1.0/1.2mm |
Protection Class |
IP23 |
Dimensions |
511×213×400mm |
Weight |
22KG |
