Product Name: |
Wholesale High Quality Pneumatic Weld Gun Cleaning Station Robot Welding Torch cleaner |
||||||
Wire Diameter: |
Solid wire: max 1.6mm Flux cored wire: max 3.2mm |
||||||
Product decription: |

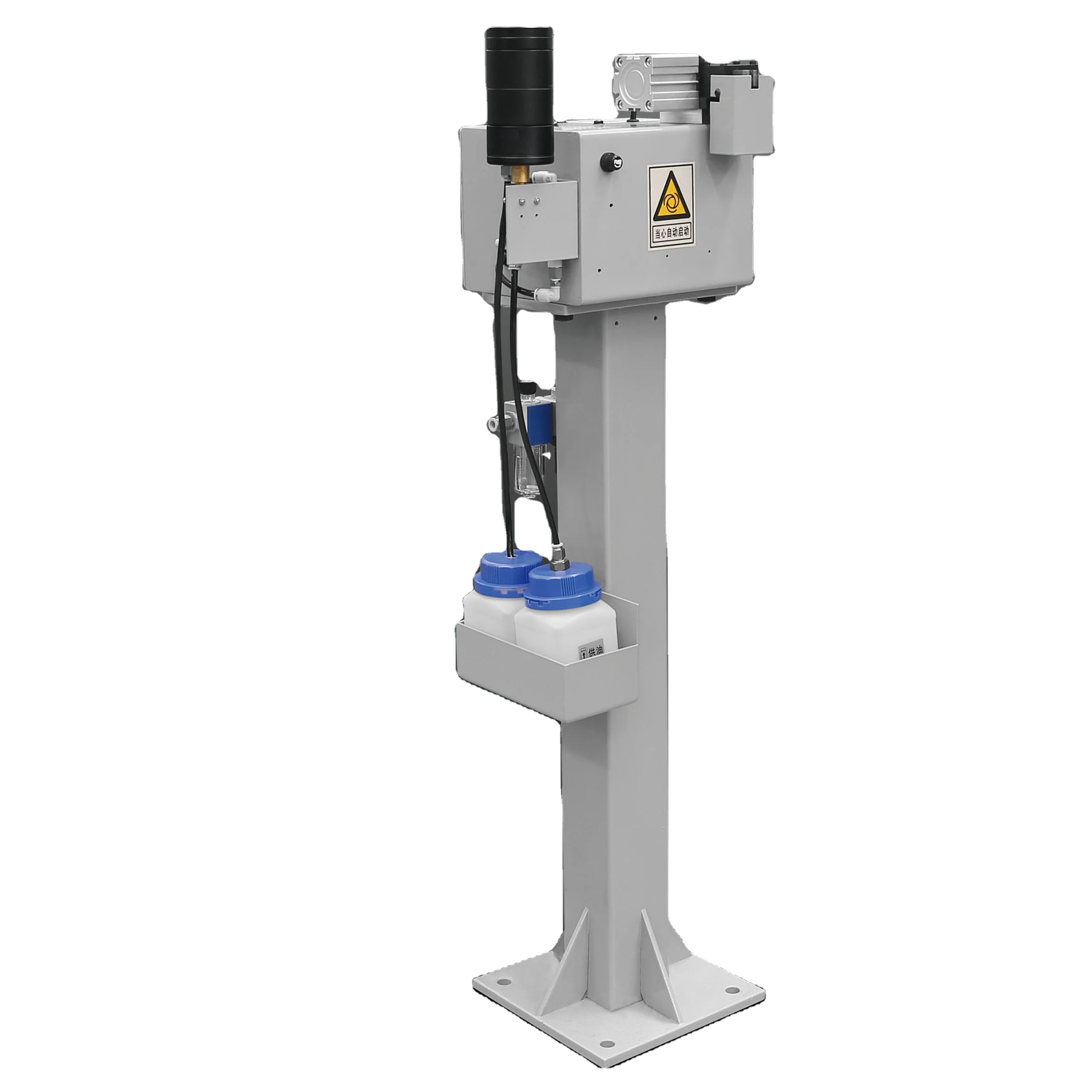

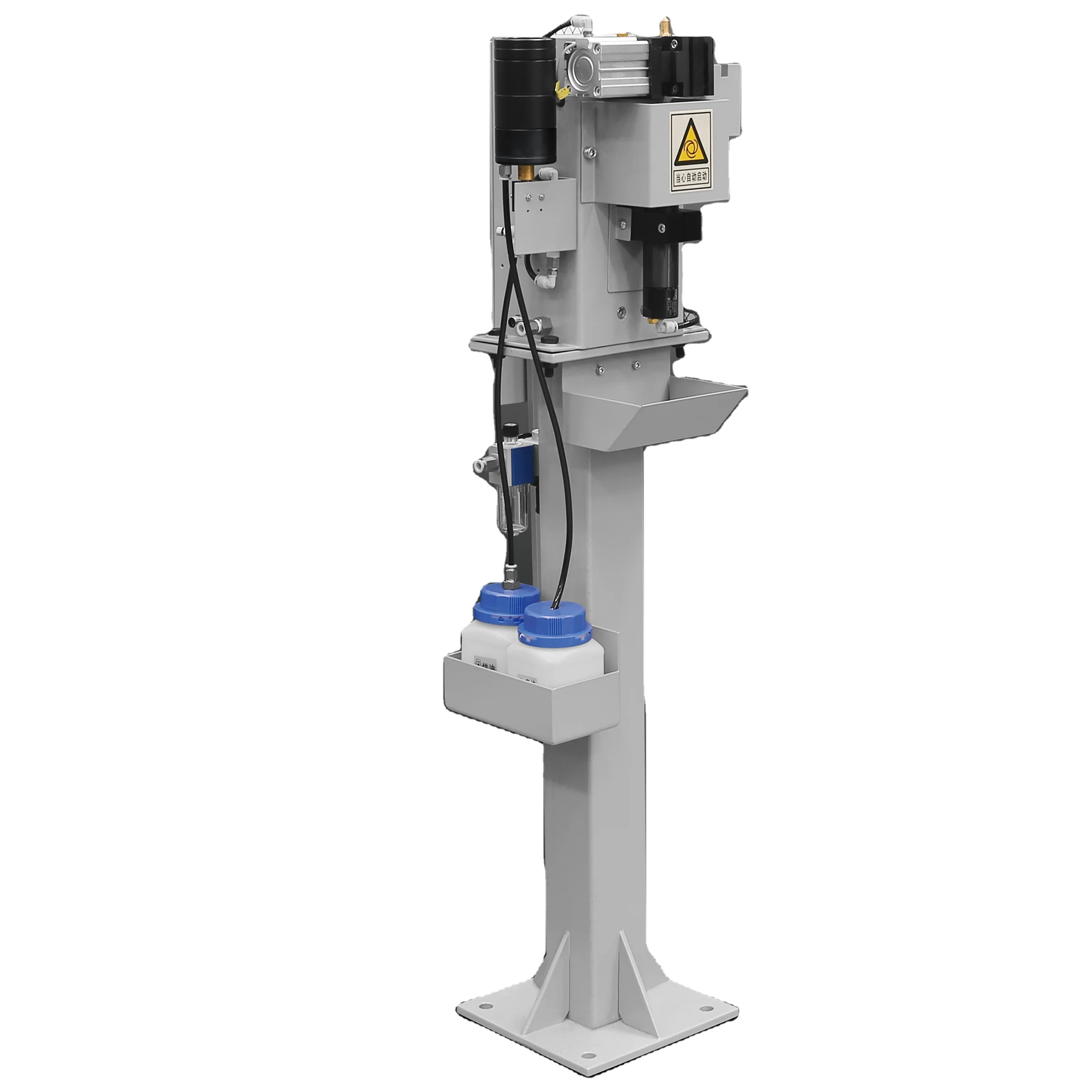

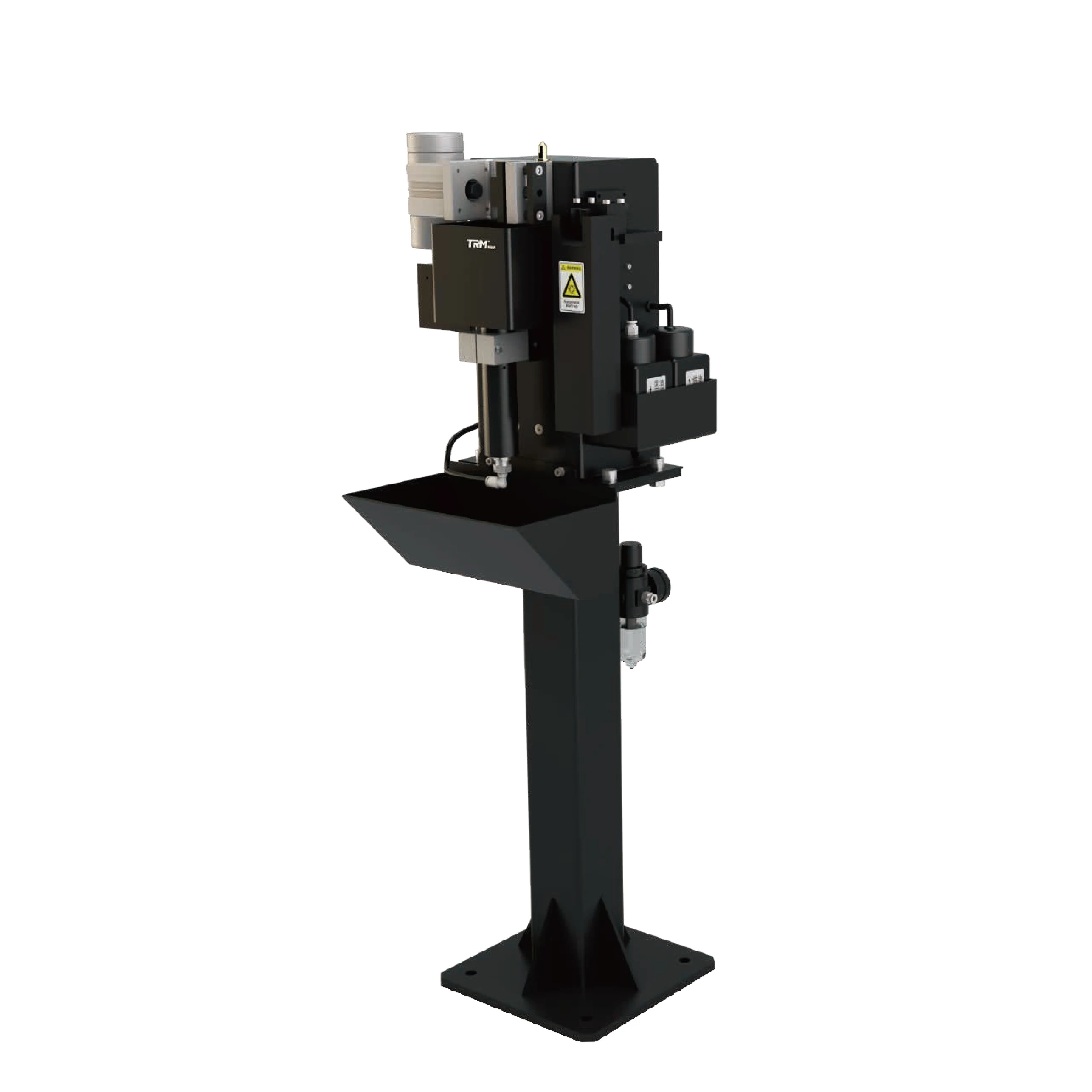

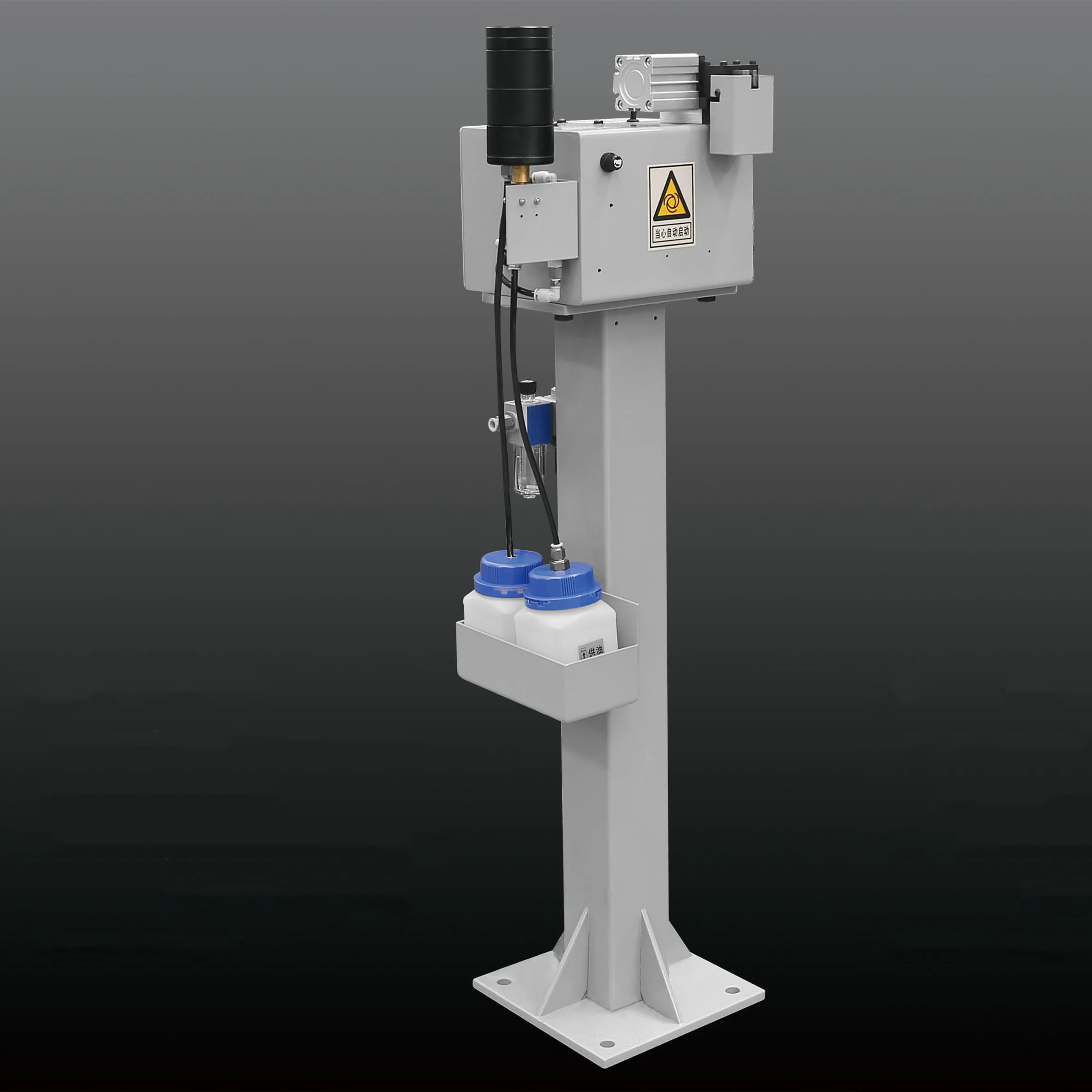

Pneumatic Welding Gun Torch clean station for welding robot
1. Clamping device can hold gas nozzle with max. 28mm of OD. No need to change V-block.
2. High precision, high rigidity of the pneumatic air motor, torque, can remove the spatters which difficult to remove, not afraid of overload, long service life.High precision and rigidity of imported pneumatic motor with high torque, which helps to remove heavy spatters. With overload protection to achieve long lifetime.
3. The special filter element can effectively fiter oil, water and impurities in the gas path, and improve the lifetime of the equipment.
4. Closed oil spray space, waste oil can be collected and recycled, environmental friendly.
5. High precision, high regidity cylinder to keep high precision of repeated positioning.
6. With TCP tip.
7. Full-automation, No manual operation.
|
||||||
Item |
Value |
Air source |
Dry compressed air without oil 6-8bar |
Air consumption |
Approx 6.3L/S |
Control signal voltage |
24V DC |
Cleaning time |
5 Seconds |
Current: |
Imax=0.15A |
Anti-spatter agent capacity |
250ml |
Diameter of cut wire |
Solid wire: max 1.6mm Flux cored wire: max 3.2mm |
Wire cut time |
0.5 seconds |
Pneumatic motor |
Approx 650rpm, Max torque 9Nm |
