Product Name: |
ULTRA SUB-1250 Submerged Arc SAW Welding Machine |
||||||
Function: |
Submerged arc welding, manual arc welding, carbon arc gouging, electroslag pressure welding |
||||||
Products Description |
1. Soft switch inverter technology is adopted to effectively extend the service life of the whole machine 2. The whole machine is equipped with feedback circuit of several parameters, the welding standard is stable, and the weld forming is good. 3. The drive plate adopts "three prevention" processing technology to strengthen the protection of moisture, salt mist and dust. 4. In the state of manual arc welding, the thrust current and arc starting current are continuously adjustable and easy to use. 5. The load duration rate was 100%, suitable for Φ 3.2- 6.0 continuous uninterrupted submerged arc welding wire welding. |
||||||
Applicable Industries |
Machinery Repair Shops, Manufacturing Plant, Retail, Construction works, Energy & Mining |
||||||

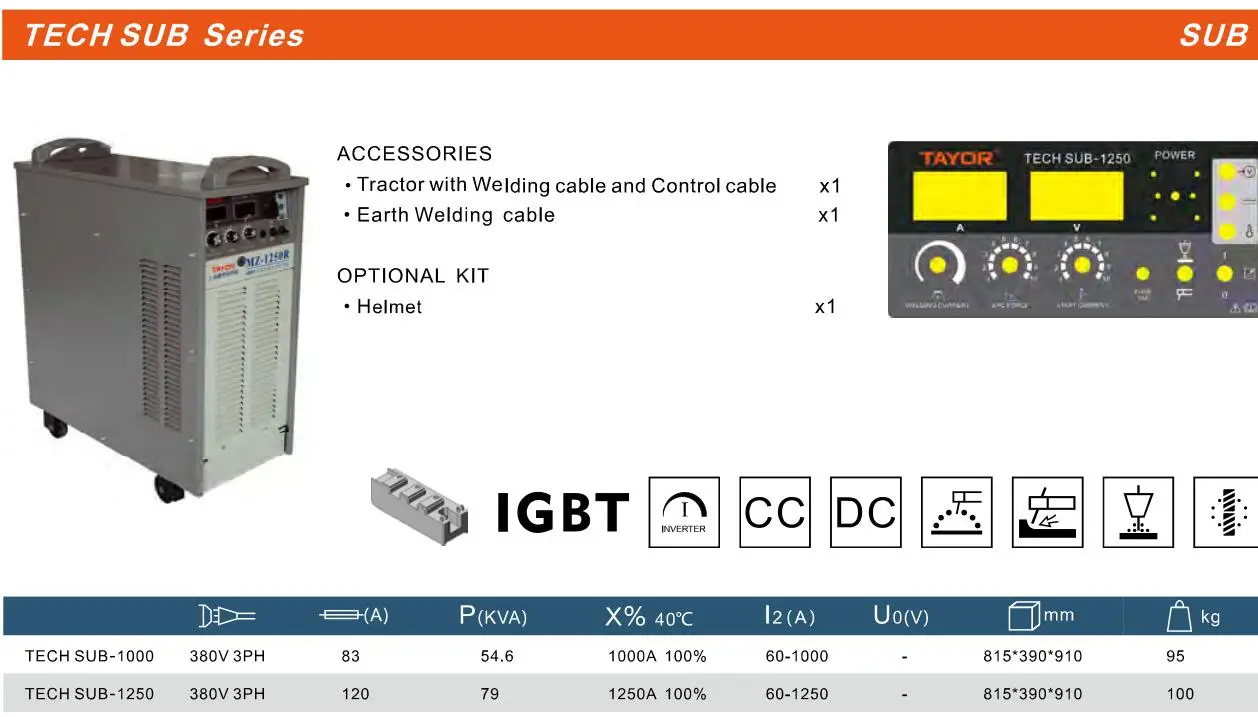

Model |

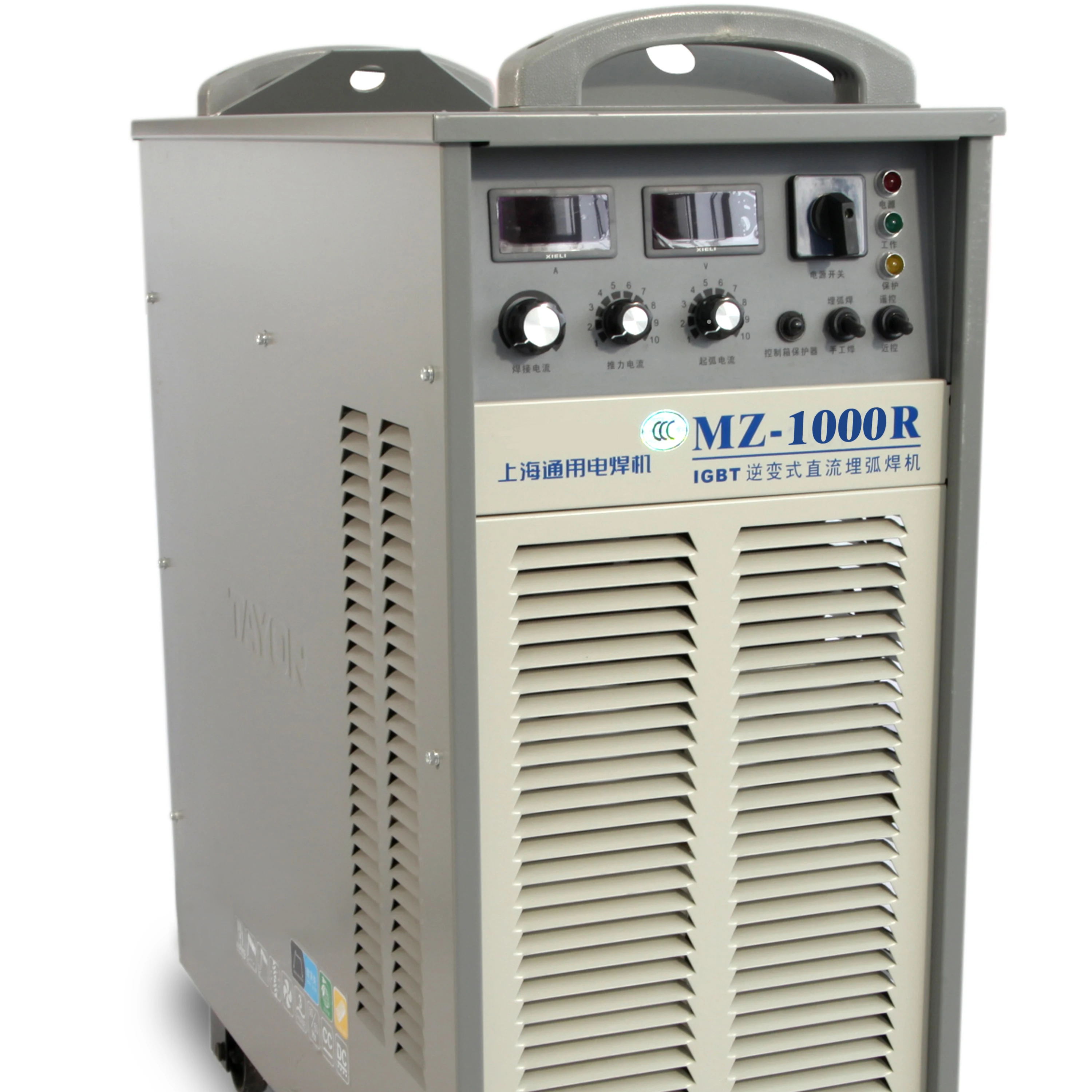

MZ-1000R |
Rated Input Voltage(V) |
3~380 |
Rated Input Power(kV/A) |
54.6 |
Rated out Voltage(V) |
44 |
Output Current Range(A) |
60-1000 |
Rated Duty Cycle (%) |
100 |
External Size L*W*H(mm) |
815*390*910 |
Weight (kg) |
110 |
Applicable wire diameter |
Φ 3.2 - 6.0 |
Efficiency(%) |
92 |
Insulation grade |
H |
Protection class |
IP21S |
