Product Name: |

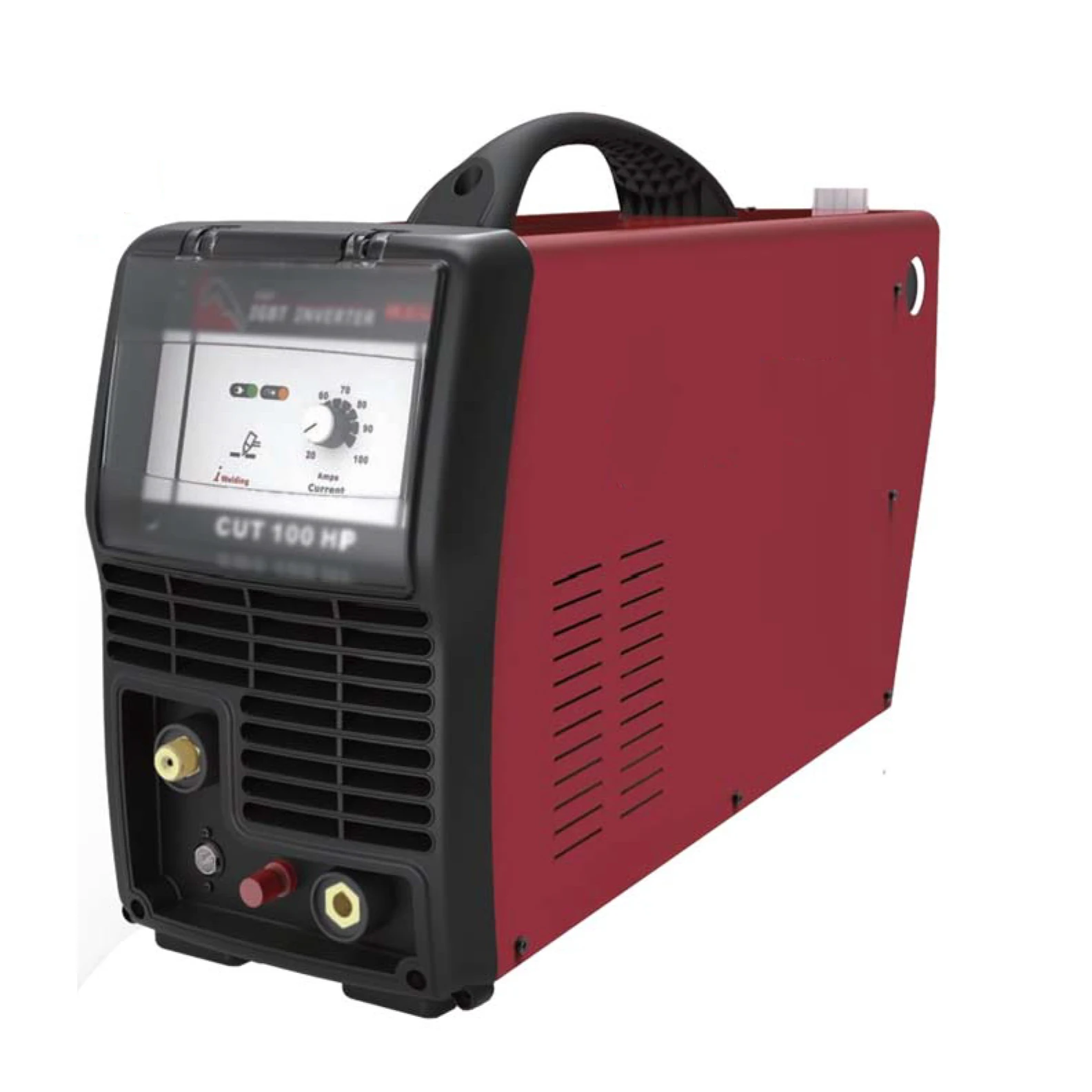

PLP Safe Pilot Arc Controller DC Inverter Plasma Cutter |
||||||
Dimensions: |
660*240*445mm |
||||||
Features |
Phase Loss Protection. Pilot Arc Controller increases cutting capabilities and speed. Extends tips life. Ideal for grid cutting.Various protective and alarm functions for over-temperature and over-current.
550V tested in production.
Carbon steel Max.Cutting thickness up to 35.4mm.
|
||||||
Input Voltage |
3-400V |
Input Current |
30A |
Input Power |
14.8KW |
Insulation Class |
H |
Duty Cycle (40°C) |
40%100A;60%80A;100%65A |
No Load Voltage |
615V |
Effective Current |
19A |
Protection Class |
IP23 |
Cooling |
AF |
Severance Cut for Carbon Steel (mm) |
≤ 60 |
Production Cut |
mm |
Carbon Steel |
≤40 |
Stainless Steel |
≤40 |
Aluminum |
≤36 |
Copper |
≤20 |
Cutting Current |
20-100A |
Fre.HZ |
50/60 |
Dimensions |
660*240*445 |
Weight |
27kg |
