Product Name: |

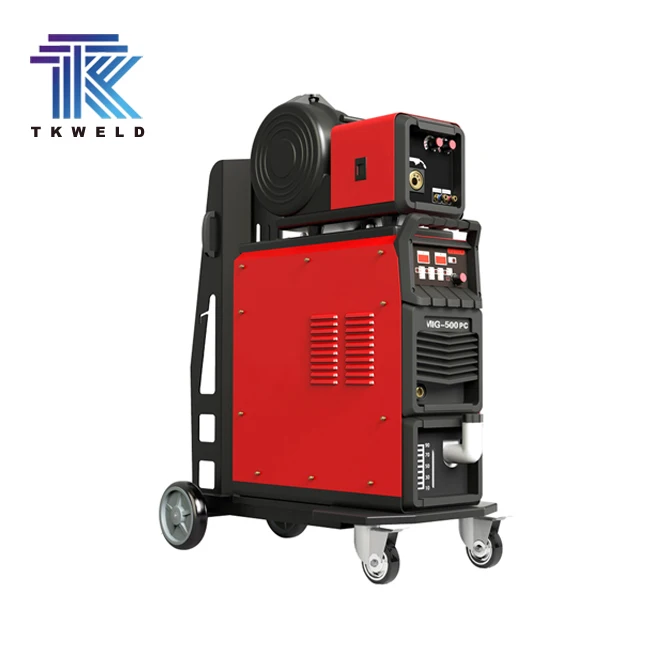

Heavy Duty Double Pulse Industrial 400 DP MIG TIG MMA Multi function Welding machine Welder with trolly |
||||||
Features |
1. Soft switch inverter technology is adopted, with IGBT module to effectively extend the service life of the whole machine.
2. Dual Pulse function: Allows to activate devoted pulse curves for alluminum, mild steel, stainless steel and CuSi3.
3. Arc stability: Waveform control, for added stability of the arc, even at low currents.
4. Digital display: Variable amperage control with digital meter, for a simultaneous welding current and tension display.
5. Protections: Equipped with temperature, voltage and current sensors for high protection.
|
||||||
Function |
PULSE MIG welding. TIG welding. Manual Arc welding. Solid wire/flux wire welding |
||||||
Accessories |
Wire feeding device 1set Water cooler
Welding torch 1set
3M earth connector cable 1pc
Trolly
|
||||||
Model |
MULTIMIG 350 DP |
MULTIMIG 400 DP |
||||
MIG welding |
TIG welding |
MIG welding |
TIG welding |
|||
Rated Input Voltage(V) /Frequency (Hz) |
3~400±10% / 50/60 |
3~400±10% / 50/60 |
||||
Rated Input Power(kVA) |
12.8 |
10 |
15.5 |
12 |
||
Open circuit Voltage(V) |
67 |
14 |
81 |
14 |
||
Output Current Range(A) |
15~350 |
10~350 |
15~400 |
10~400 |
||
Output Voltage Range(V) |
14~35 |
14~35 |
||||
Rated Duty Cycle (%) 40℃ |
350A@60% |
350A@60% |
400A@60% |
400A@60% |
||
275A@100% |
275A@100% |
310A@100% |
310A@100% |
|||
Applicable Wire / rod diameter (mm) |
0.6~1.6 |
2.0~5.0 |
0.6~1.6 |
2.0~6.0 |
||
External Size L*W*H(mm) |
560X240X445 |
547X262X501 |
560X240X445 |
|||
Weight (kg) |
23 |
27 |
25 |
|||
Efficiency(%) |
85 |
86 |
85 |
|||
Insulation grade |
H |
H |
H |
|||
Protection class |
IP23 |
IP21S |
IP23 |
|||
