All position
Deep penetrating on dirty steel, rusty or painted metal
Both AC / DC Can be used
Don't need to bake before welding electrode.

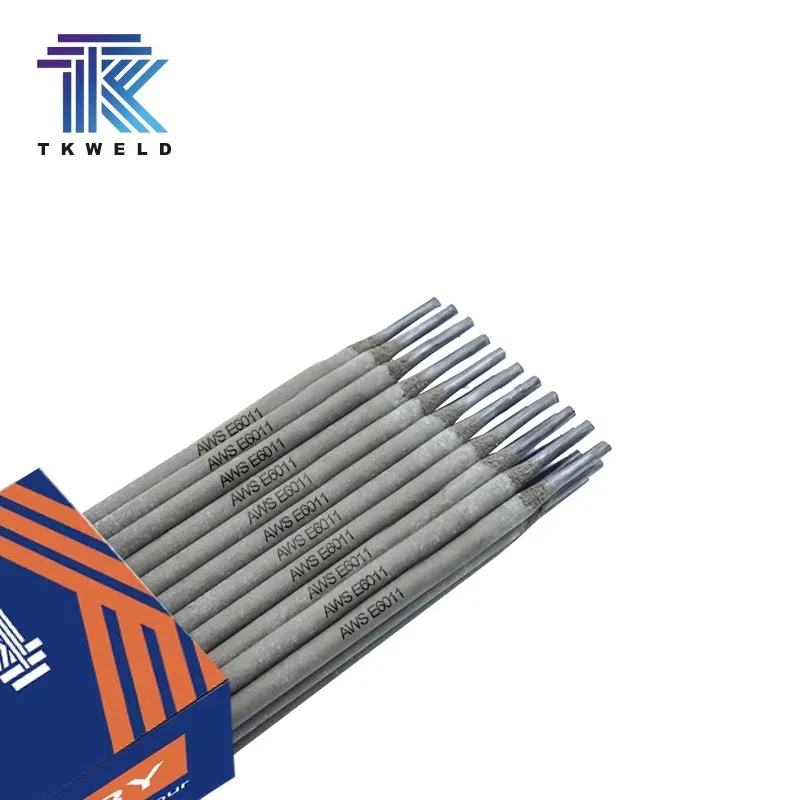

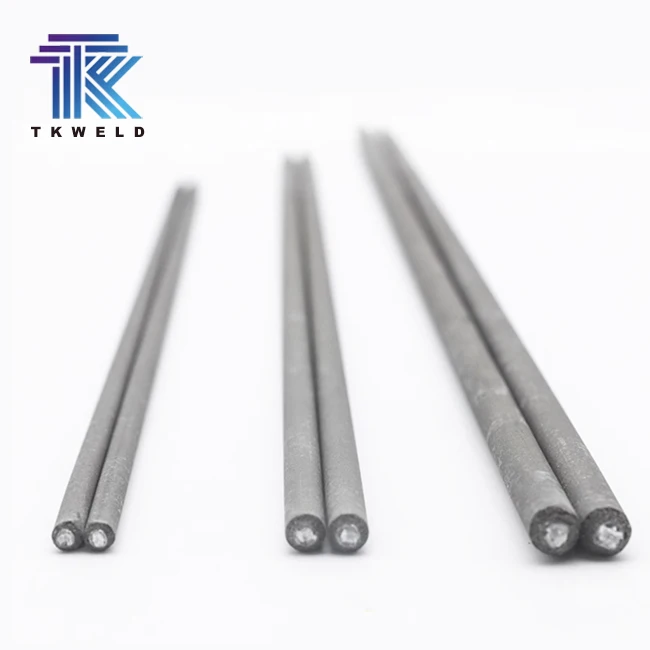

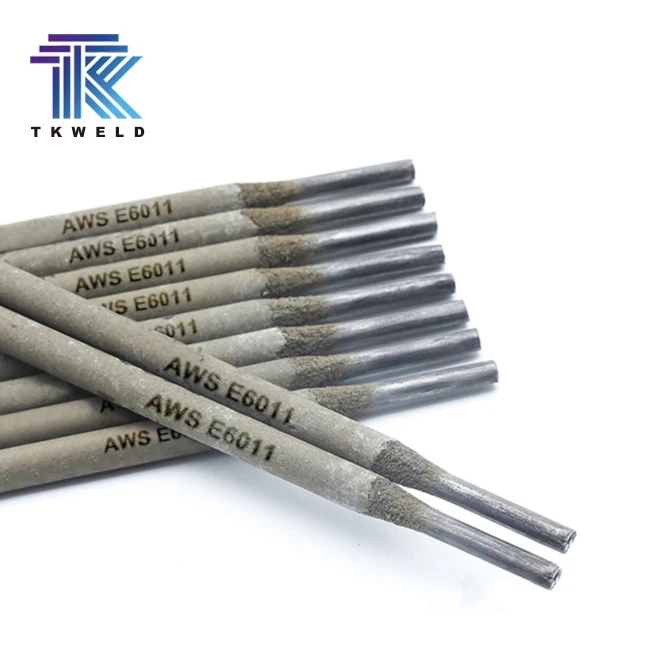

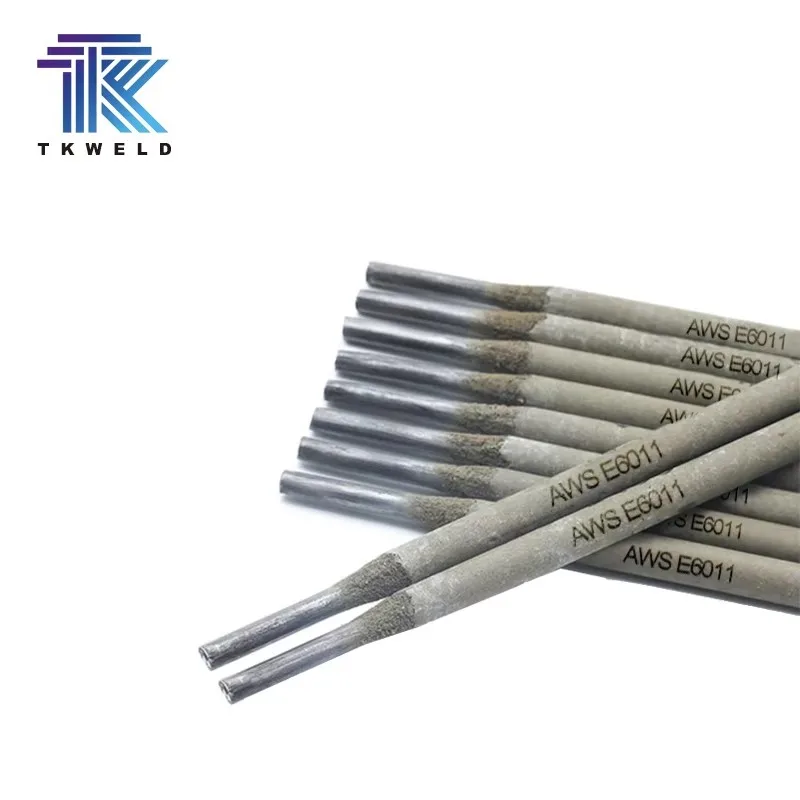

AWS E6011 Top Grade Welding Electrode
Deposit Composition (Quality Score) 100%
| Items | C | Mn | Si | S | P | Ni | Cr | Mo | V |
| Requirements | ≤0.20 | ≤1.20 | ≤1.00 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
| Typical Results | 0.09 | 0.42 | 0.15 | 0.020 | 0.025 | 0.030 | 0.035 | 0.005 | 0.004 |
Mechanical Properties:
| Items |
Tensile Strength Rm/MPa |
Yield Strength Rel/Rp0.2 MPa |
Elongation A/% |
Charpy V-Notch KV2(J) -30℃ |
| Requirements | ≥430 | ≥330 | ≥20 | ≥27 |
| Typical Results | 475 | 400 | 26 | 80 |
X-ray detection: Ⅱ
Typical Operating Procedures: (AC/DC+)
|
Diameter in(mm) |
2.5 | 3.2 | 4.0 | 5.0 |
|
Current in( A ) |
40-60 | 80-100 | 100-140 | 150-200 |
AWS E6011 Welding Electrode Rod Packing Details as Follows:
2.5kg/5kg/Box, 20kg/Carton, 1000kg/Pallet

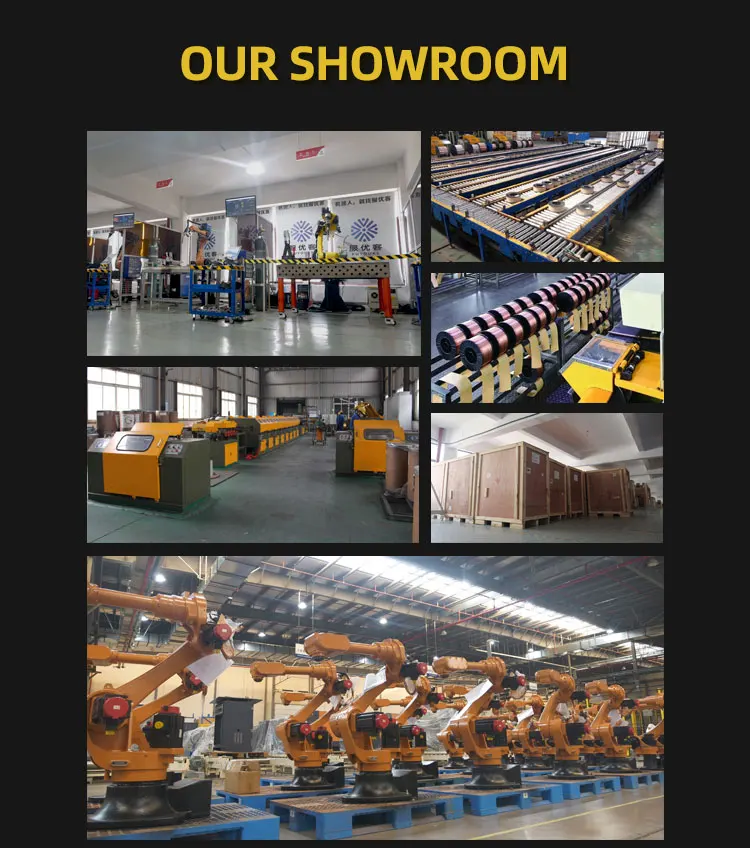

Shanghai Fengling Company, founded in 2000, is a company focusing on professional services in the welding industry. It mainly provides customers with integrated services of welding materials, welding equipment, welding automatic production lines and welding process research and development. Provide technology and services for many landmark projects and well-known enterprises, cooperation projects include (Shanghai Center, Hongqiao Transportation Hub, Jin Mao Tower, China National World Expo, National Convention and Exhibition Center, Scientist Building, etc.), cooperative enterprises (Shanghai Construction Group, MCC Steel Group), more than 20 years of accumulated very rich and valuable professional service experience. Our company has a high-quality welding technology central laboratory, with its own brand TKweld and welding robot TKrobot. At the same time, it cooperates with the world's well-known welding power supply and welding robot brands, welding power supply includes (Lincoln of USA, SAFRA of France, Kemppi of Finland, ESAB of Sweden, OTC of Japan, Panasonic, China Aotai, Megmeet, etc.), and welding robots have four major families in the world (Fanuc, Yaskawa, Kuka, ABB, etc.). FengLing aspires to become an integrated professional technical service company with great influence in the welding industry.
We have a strong welding consumables market supply chain, where you can find any welding consumables and equipment you need. Our team is at your service throughout the process, supplying you with the best quality products.
All of our product shave 8 countries classification societies quality certification(ABS, CCS, DNV, BV, RINA, NK, GL,LR ) which ensures the quality and safety..
