Product Name: |

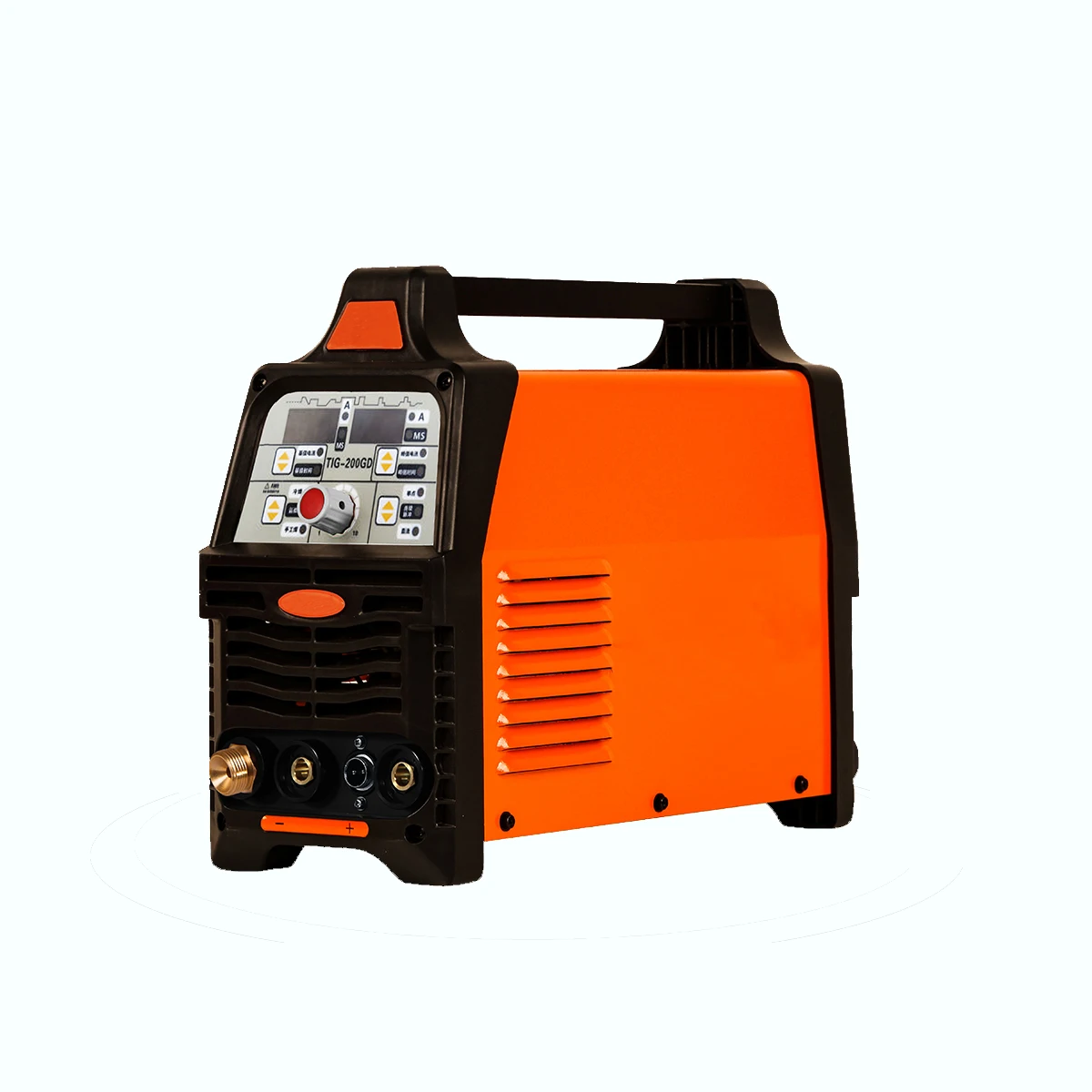

OEM Factory Price Pulse IGBT Inverter Digital TIG Weld Welding Machine Soldering Welder Machine |
||||||
Applicable |
Home use, Repair Store |
||||||
Features: |
1. Possessing TIG&MMA function. 2. Using colorful LED screen operation panel, welding data match automatically. 3. Possessing AC1, DC, 2T, 14T, pulse / no pulse function. 4. Digital control technology, Synergic control, Min. AC current can 10A. 5. Three-proofing air flue design, IGBT inverter technology, reliable performance. 6. Pre-blow time, arcing current, raising time, peak currrent, pulse frequency, pulse duty cycle, base current, declining time, arc-ending current, post-blow time, AC frequency, AC clean width adjustable. 7. Over current & heating protection. 8. Remote torch & food switch optional. 9. Memory & storage function. |
||||||
Model |
TIG 200GD AC/DC |
TIG 200GD sv AC/DC |
Rated Input Voltage(V) |
AC 1~220V±15% 50/60Hz |
AC 1~110/220V±15% 50/60Hz |
Rated Input Power(kVA) |
7.2KVA |
7.2KVA |
Rated input Current (A) |
10-200A |
10-200A |
Rated Duty Cycle (%) 40â |
40% |
30% |
External Size L*W*H(mm) |
460X330X375 |
460X330X375 |
Weight (kg) |
15.5 |
16.2 |
Efficiency(%) |
86 |
86 |
Insulation grade |
H |
H |
Protection class |
IP21S |
IP21S |
