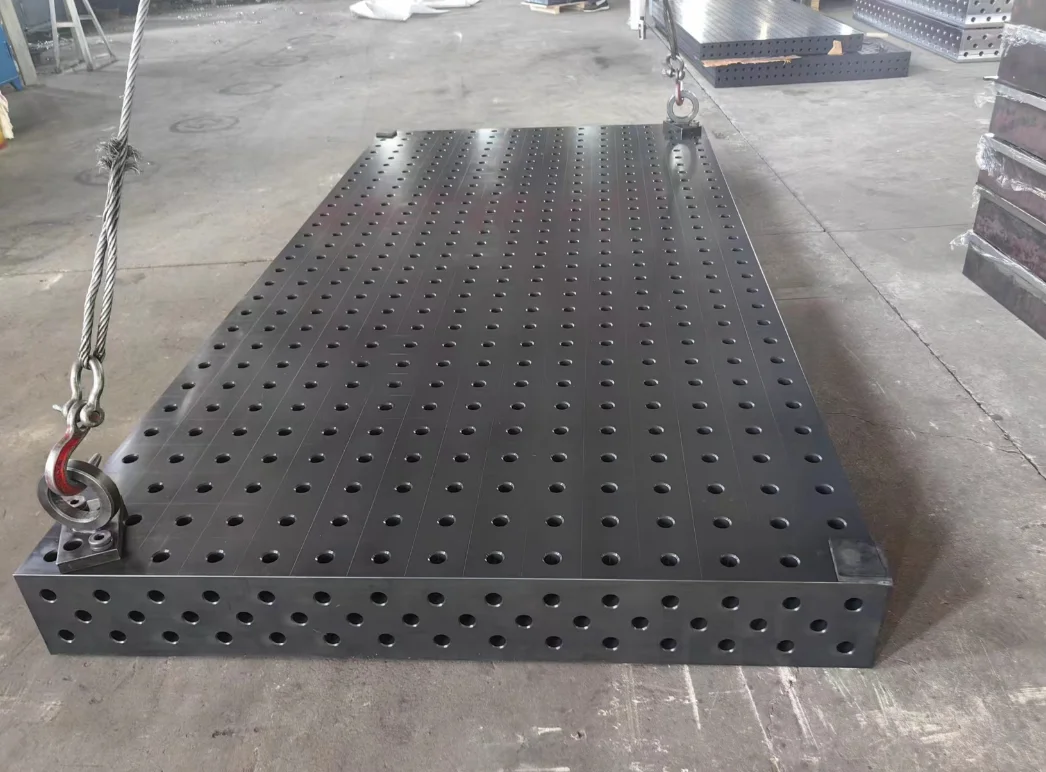

The welding table is divided into two series according to the hole system: Φ28 and Φ16. It is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure. The tooling platform is divided into steel piece platform and cast iron platform according to materials. The grid is engraved with corresponding grid lines. According to customer requirements, the measuring scales can be drawn on the four sides of the platform and the surface can be nitrided.
Specification
Specification
Product Name
Size (mm)
Item Number

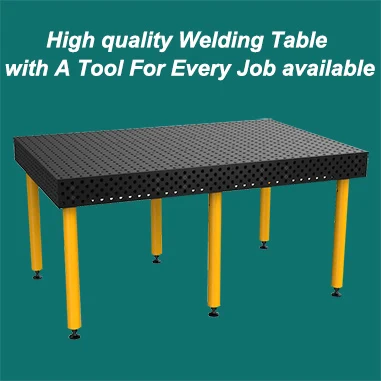

3D Steel /Cast iron Welding table
1000x1000x200
TTK2810001
1200x1200x200
TTK2810002
1500x1000x200
TTK2810003
1500x1500x200
TTK2810004
2000x1000x200
TTK2810005
2400x1200x200
TTK2810006
3000x1500x200
TTK2810007
4000x2000x200
TTK2810008
2000x2000x200
TTK2810009
1200x1000x200
TTK2810010
2D 3D Welding Table Features
1. Modularity and flexibilityCan be connected and changed arbitrarily according to the shape of workpiece. 2. High precision.The precision can reach decimillimetre(dmm) for fixing and clamping. 3. Quick fixing and clamping.Only spending a few minutes to fix and clamp workpieces from one to another. 4. Easy to operate.Only 2 hours, any worker can learn how to use it quickly. 5. High price-performance ratio.1 set of modular flexible fixture can replace all traditional dedicated fixtures. Saved a lot of time, labor, material resources and funds for enterprises. 6. Clean, tidy and environmental Friendly.Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.
