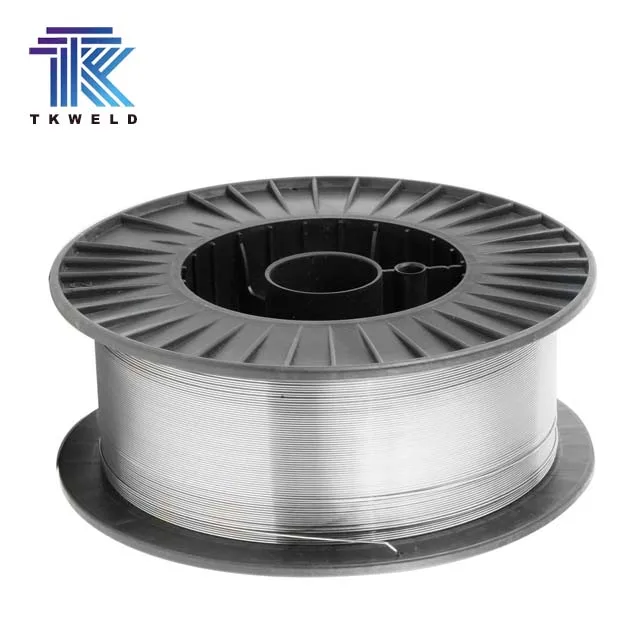

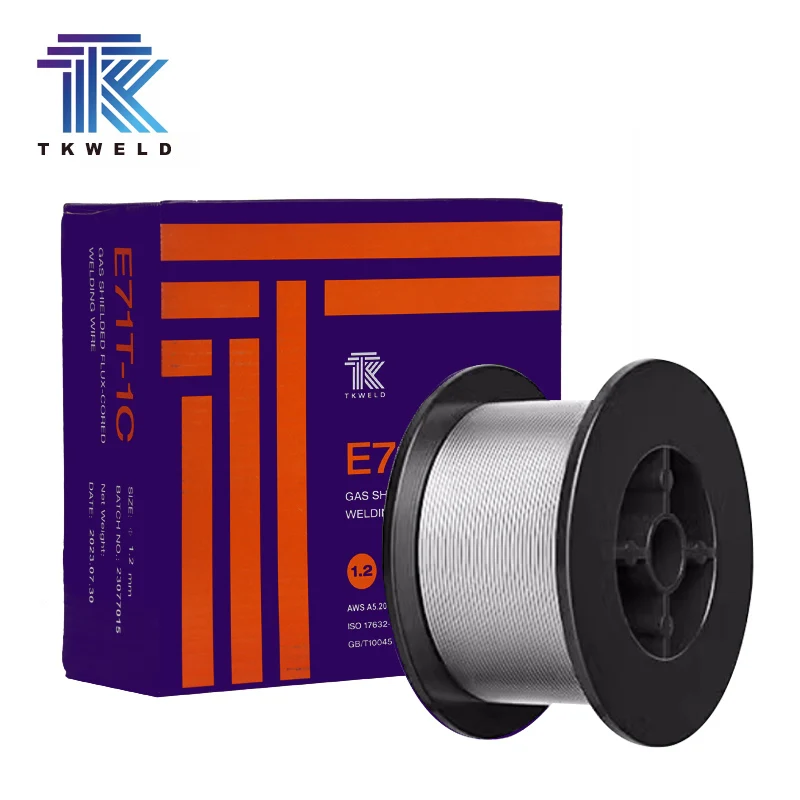

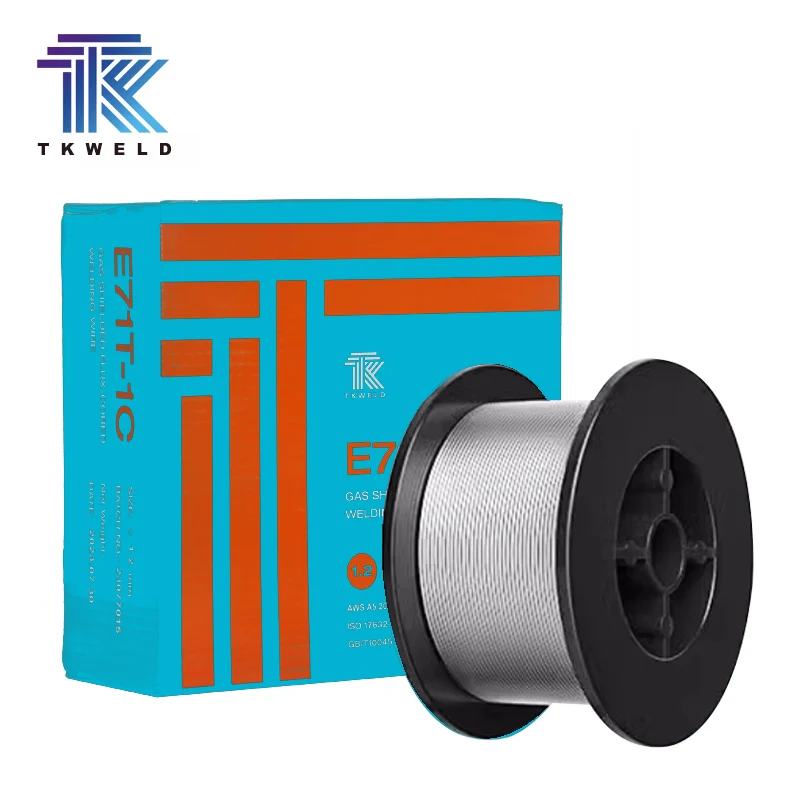

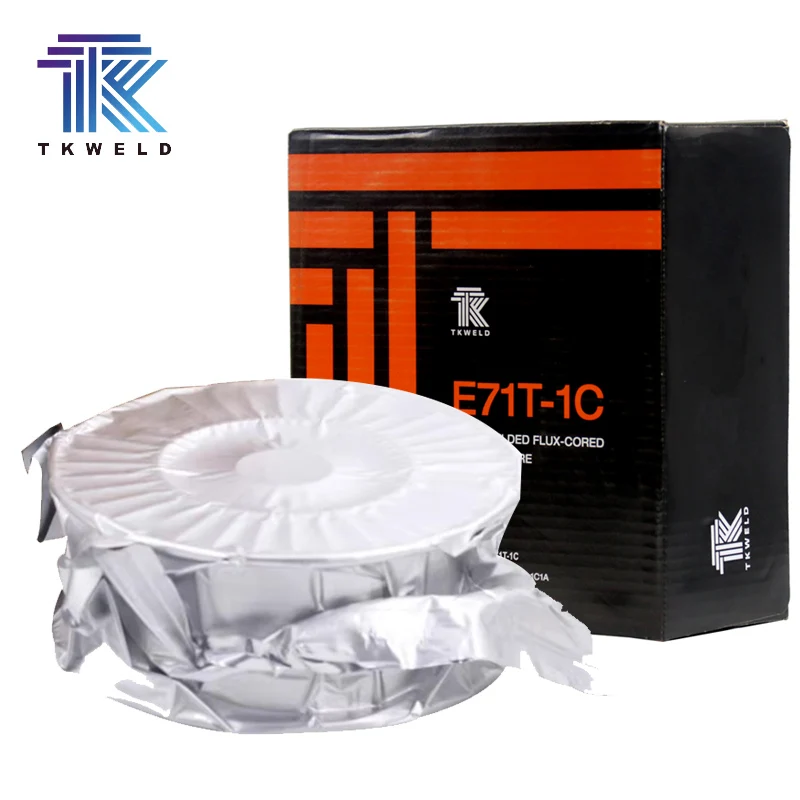

TKweld Brand E71T GS E71T 1C E71T 11 E71T 1 E71t11 E71tgs E71T E71T1 Welding Wires

Overview
Recommended Products

Product Description

1> Low spatter

2> Easy to weld

3> Porosity free

4> High feedability

5> Good bead appearance

6> Feeds well into all welding machines.

7> Flows nicely, no feed issues, and has no tangle

Chemical composition of the welding wire (mass fraction) %

Items	C	Mn	Si	S	P
Standard Value	≤0.12	≤1.50	≤0.80	≤0.030	≤0.030
Case of Value	0.04	1.28	0.38	0.006	0.011
Items	Ni	Cr	Mo	V
Standard Value	0.8 - 1.10	≤0.15	≤0.35	≤0.05
Case of Value	0.90	/	/	/

Mechanical properties of deposited metal: (CO2)

Items	Tensile Strength Rm/MPa	Yield Strength Rel/Rp0.2 MPa	Elongation A/%	Charpy V-notch impact energy KV2(J)-30℃/-40℃
Standard Value	490-620	≥400	≥20	≥27
Case of Value	570	510	27	135/120

Welding reference current: (DC +)

Wire Diameter(mm)		Welding wire diameter (mm)	1.0	1.2	1.4	1.6
Welding Range (A)	Plat Position	120 - 250	120 - 300	150 - 400	180 - 450
		Vertical Up Welding	120 - 210	120 - 260	150 - 270	180 - 280
		Overhead Welding	200 - 250	200 - 300	220 - 300	250 - 300
		Horizontal Welding	120 - 230	120 - 280	150 - 320	180 - 350

E71T1 has very good welding performance, smooth arc, low spatter and the content of diffusible hydrogen in the deposited metal reaches 3.0ml/100g, which significantly avoid the cold cracking and porosity. Low fume generation and easy to remove slag for post weld cleaning. With better yield point and impact toughness at low temperature.

Company Profile

Shanghai Fengling Company, founded in 2000, is a company focusing on professional services in the welding industry. It mainly provides customers with integrated services of welding materials, welding equipment, welding automatic production lines and welding process research and development. Provide technology and services for many landmark projects and well-known enterprises, cooperation projects include (Shanghai Center, Hongqiao Transportation Hub, Jin Mao Tower, China National World Expo, National Convention and Exhibition Center, Scientist Building, etc.), cooperative enterprises (Shanghai Construction Group, MCC Steel Group), more than 20 years of accumulated very rich and valuable professional service experience. Our company has a high-quality
welding technology central laboratory, with its own brand TKweld and welding robot TKrobot. At the same time, it cooperates with the world's well-known welding power supply and welding robot brands, welding power supply includes(Lincoln of USA, SAFRA of France, Kemppi of Finland, ESAB of Sweden, OTC of Japan, Panasonic, China Aotai, Megmeet, etc.), and welding robots have four major families in the world (Fanuc, Yaskawa, Kuka, ABB, etc.). FengLing aspires to become an integrated professional technical service company with great influence in the welding industry.

We have a strong welding consumables market supply chain, where you can find any welding consumables and equipment you need. Our team is at your service throughout the process, supplying you with the best quality products.

All of our product shave 8 countries classification societies quality certification(ABS, CCS, DNV,BV, RINA, NK, GL,LR ) which ensures the quality and safety.

Smooth arc action, High feedability, Easy to weld and suitable for robots welding.

FAQ

Q1: What kind of company are you?
A: We are the real professional welding machines supplier, which has production team, R&D team, sales force and after-sale serviceteam. And we have our own welding robot laboratory for research and to provide free technical training.

Q2:How do you guarantee product quality?
A:We have our own welding laboratory, which not only tests all welding consumables but also provides customers with welding solutions, accumulates a large amount of data experience, and has absolute experience in product quality control.

Q3. Do you have any warranty?
A: Yes, we have. One year warranty for welding wire.

Q4. What certification do you have?
A: All of our product shave 8 countries classification societies quality certification which ensures the quality and safety. Our products are under strict quality management to ensure supreme quality.

Q5: What's the package?
A: 1kg; 5kg; 15kg as one spool

Q6: What is delivery time / lead time ?

A: The goods will be shipped within15-30 days after the receipt of your payment.

Q7: What is your minimum order ?
A: 500kgs .

Q8: What is your payment term ?
A:1- 30% down payment for order confirmation, 70% before shipment. 2- 100% at sight LC.

Q9:Can you send the samples for testing?
A: Yes, we can support sample free for send Express charges pay by new client, second test
sample all free.
