TKrobot Tig Welding Automation Robotic Arm Welding Machine Price

TKweld TKrobot Tig Welding Automation Robotic Arm Welding Machine

The TKweld TKrobot Tig Welding Automation Robotic Arm is a robust, reliable welding solution designed to bring precision, consistency, and speed to tig welding operations in a wide range of industries. Built for manufacturers, fabricators, and workshops looking to improve quality while lowering costs, this robotic welding system combines advanced control technology with durable mechanical design to deliver smooth, repeatable welds on stainless steel, aluminum, titanium, and other alloys

Product Overview

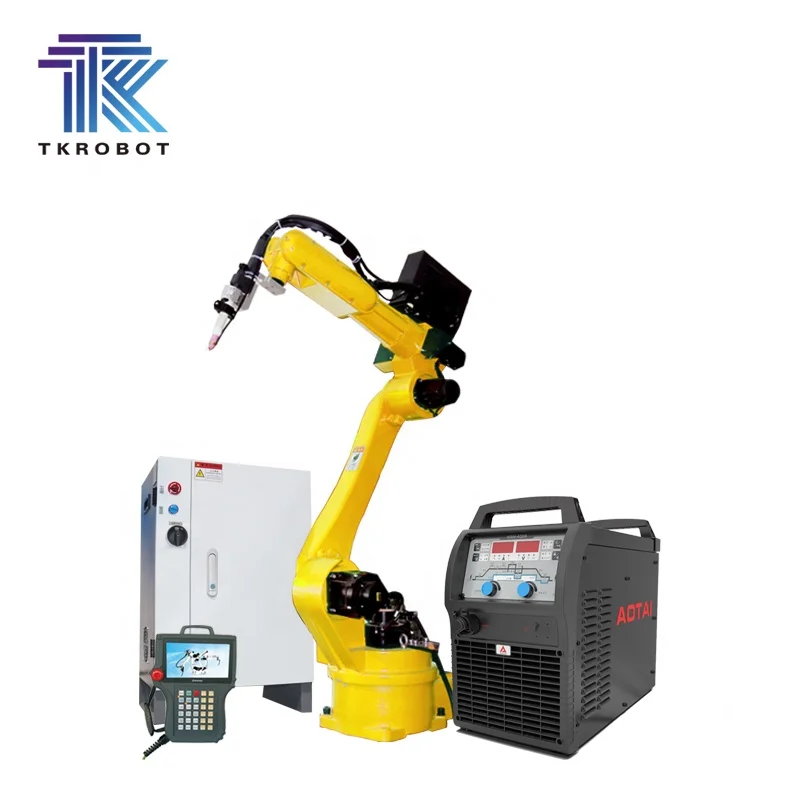

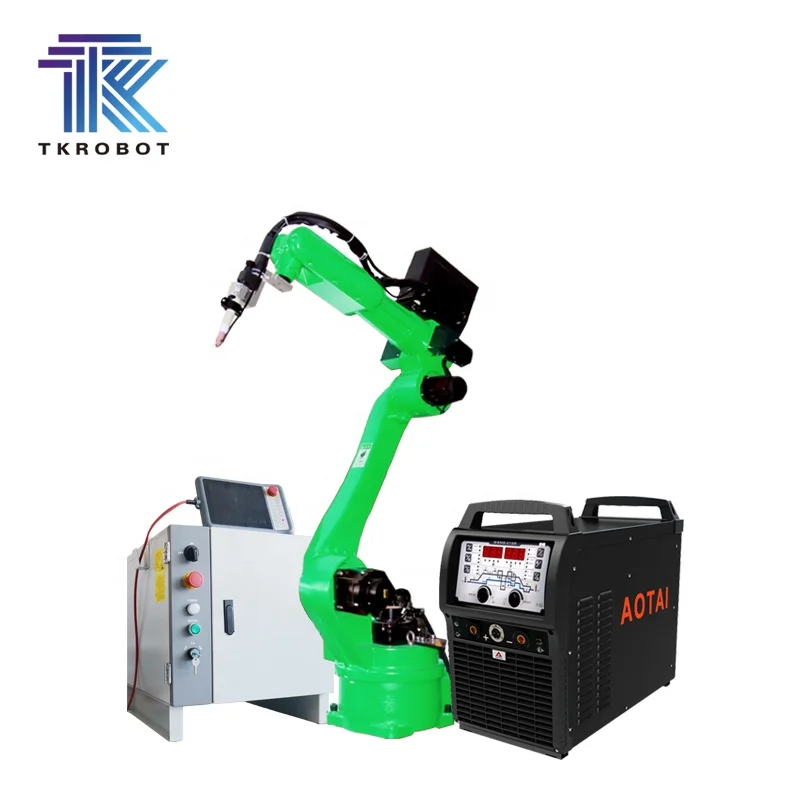

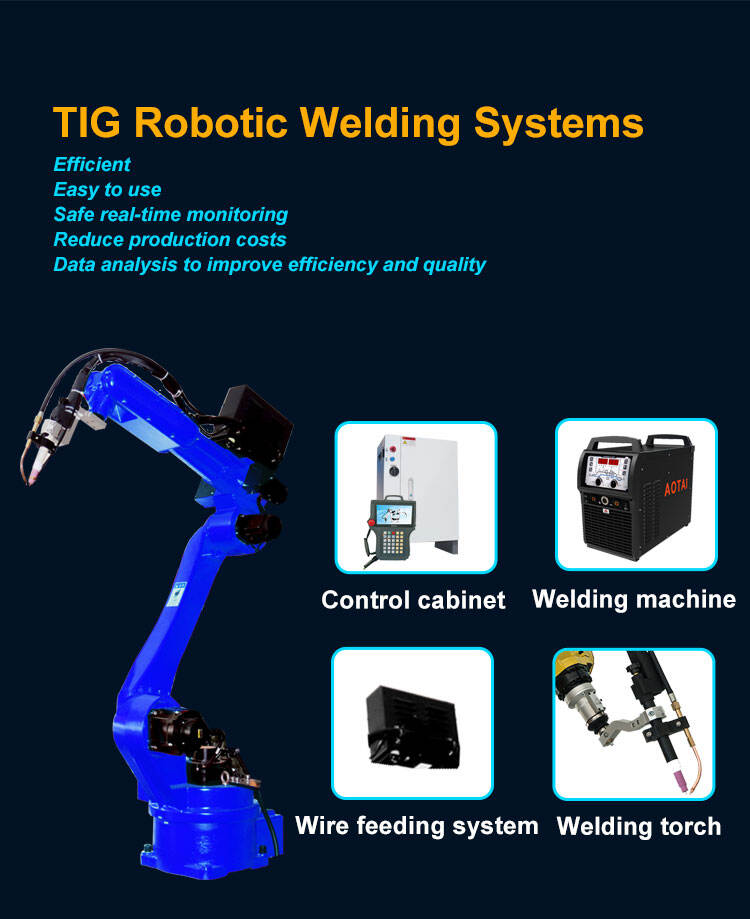

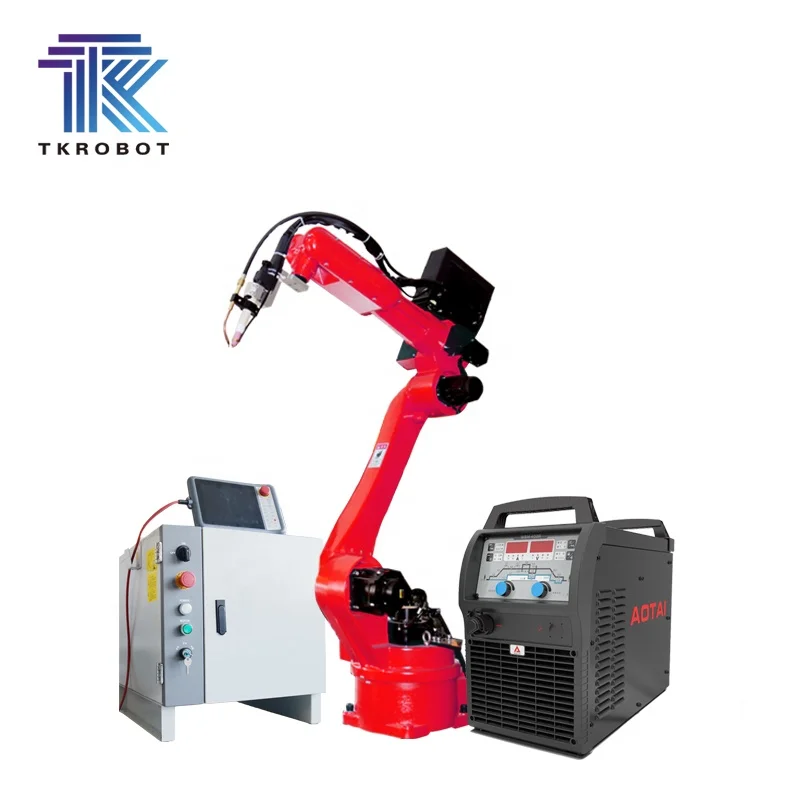

The TKrobot Tig welding robot is an intelligent automated welding cell that integrates a high-performance robotic arm, a dedicated TIG welding power source, and a user-friendly control system. It is intended to replace manual TIG welding processes that are time-consuming, inconsistent, and physically demanding. By automating welds, TKweld helps organizations increase throughput, maintain tighter tolerances, and reduce rework while improving workplace safety

Key Features

- Precision Robotic Arm: The TKrobot arm offers multi-axis motion with fine positional accuracy, enabling complex weld paths and tight control of torch angle, speed, and distance from the workpiece. This precision reduces splatter and defects and ensures consistent bead appearance

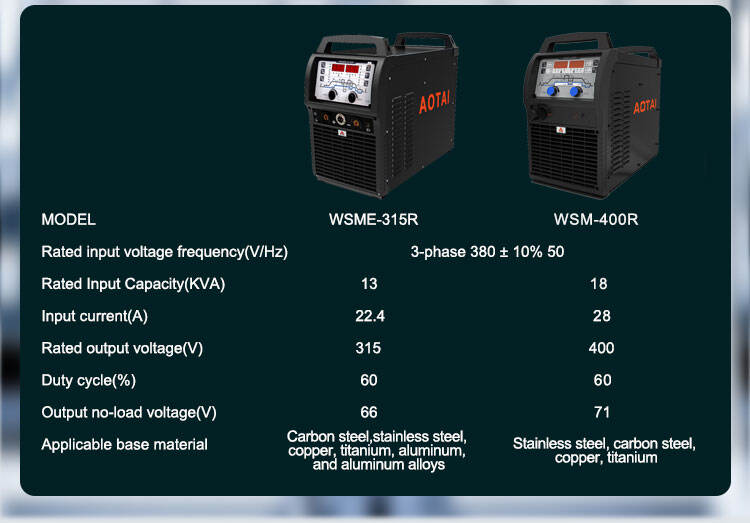

- Integrated TIG Power Source: Optimized for TIG welding, the included power supply provides stable arc control, adjustable pulse parameters, and a wide amperage range to handle thin to medium-thick materials. The power source is engineered to deliver crisp starts, smooth puddle control, and reliable arc stability

- Pulse and AC/DC Control: The system supports both AC and DC modes as well as pulse welding functions. AC balance and frequency adjustments make it suitable for aluminum welding, while DC pulse options improve heat control and penetration in stainless steel and other metals

- User-Friendly Controller: TKweld’s controller features an intuitive interface with programmable welding recipes, teach functions, and visual prompts to guide operators through setup. Common weld profiles can be saved and recalled, minimizing setup time for repeat jobs

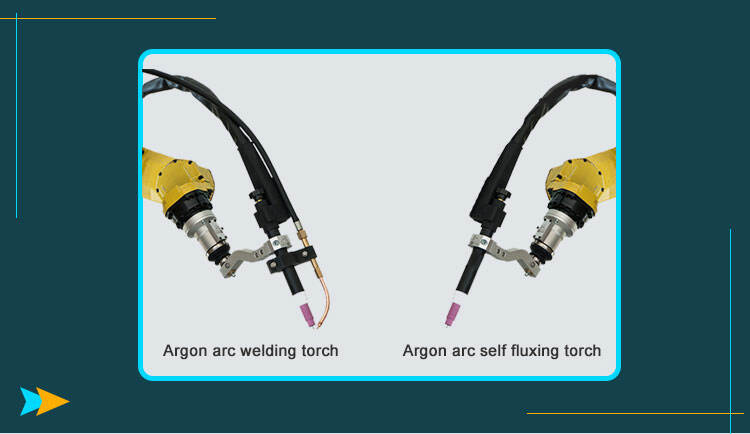

- Flexible End-Effector Options: The TKrobot supports a variety of torch configurations and cooling options, including water-cooled torches for extended duty cycles. The end-effector can be adapted for different joint types, orientations, and fixture setups

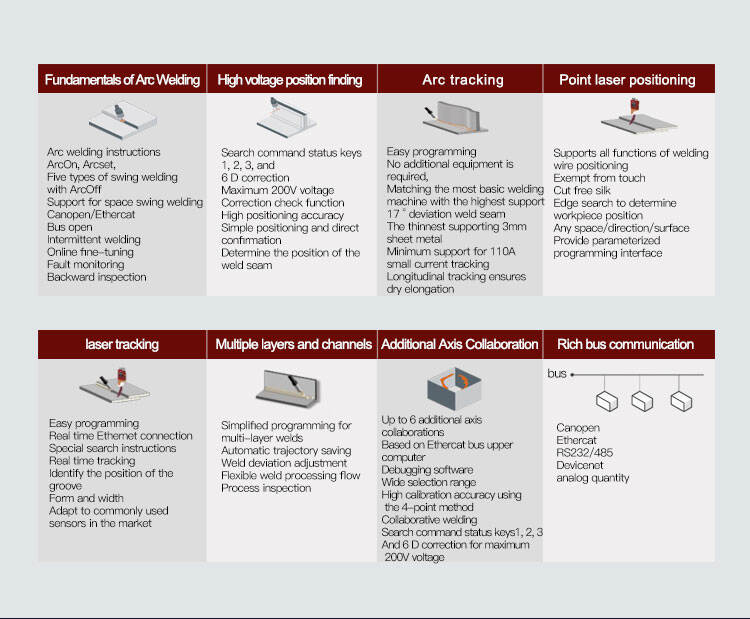

- Seam Tracking and Sensing: Optional seam-tracking sensors and vision systems allow the robot to follow complex seams and adjust the torch path in real time, reducing the need for perfect fixturing and improving weld quality on irregular parts

- Compact Footprint: Designed to fit into busy production environments, the TKrobot cell has a compact footprint and can be integrated with conveyors, rotating fixturing, or other automation hardware to build a complete production line

- Safety and Compliance: The unit is equipped with safety interlocks, emergency stop controls, and protective enclosures that meet industry safety standards. Features such as torch collision detection protect both the part and the robot in case of misalignment

Benefits

- Improved Consistency: The robot delivers repeatable weld quality across long production runs, reducing variability that often occurs with manual welding

- Higher Productivity: Faster cycle times and the ability to run unattended for long periods increase throughput and reduce lead times

- Reduced Labor Costs: Automation reduces reliance on highly skilled TIG welders for repetitive tasks, allowing technicians to focus on programming, inspection, and higher-value work

- Better Quality and Less Rework: Precise control of heat input and travel speed minimizes warping, burn-through, and inconsistent penetration, resulting in fewer defects and less scrap.

- Enhanced Worker Safety: Automating hazardous welding tasks reduces operator exposure to fumes, UV radiation, and repetitive strain injuries

Applications

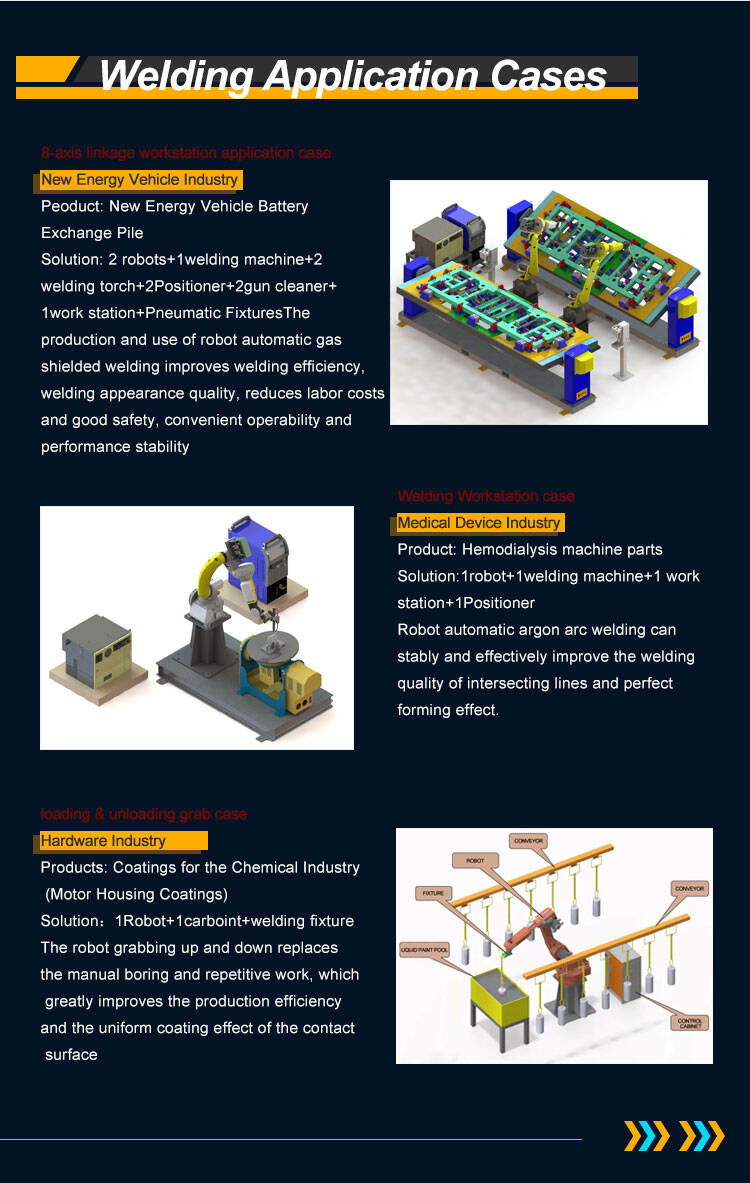

The TKweld TKrobot is well suited for industries that demand high-quality TIG welds, including aerospace, medical device manufacturing, food and beverage, automotive, marine, and custom metal fabrication. Typical applications include thin-walled tubing, pressure vessels, heat exchangers, medical instruments, and architectural components where control, appearance, and structural integrity are critical

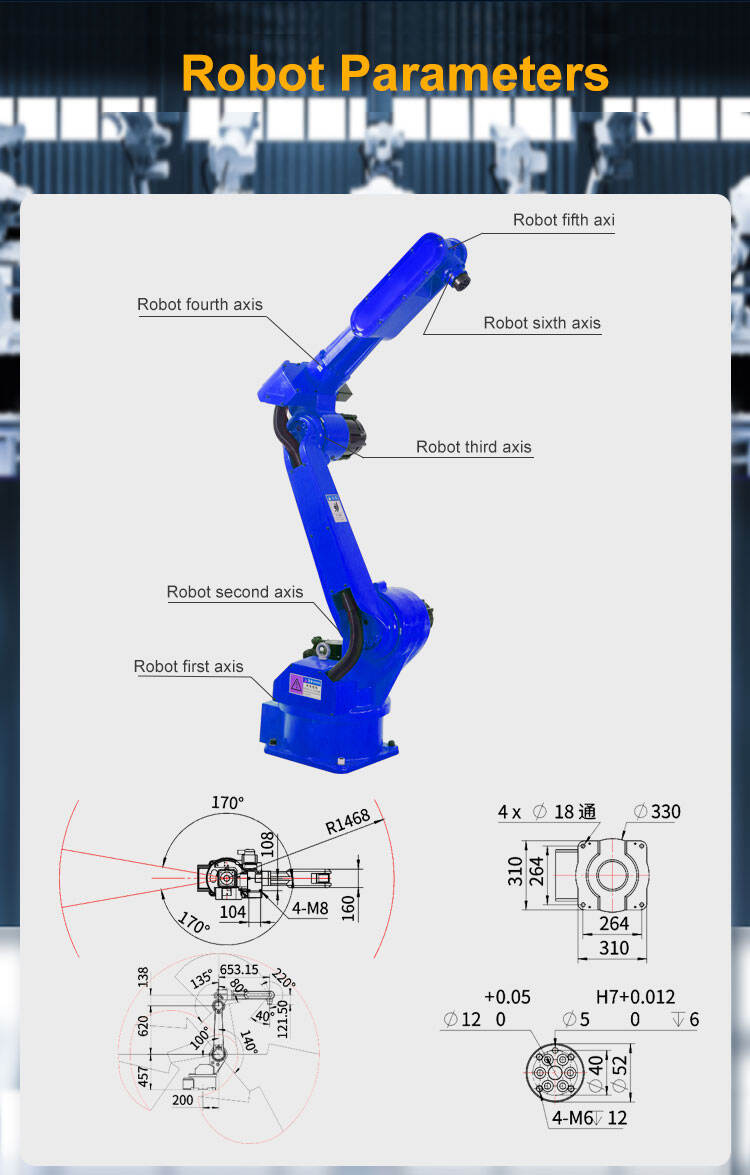

Technical Specifications (typical)

- Arm axes: 6-axis or configurable to application

- Reach: Multiple reach options to accommodate different work envelopes

- Payload: Rated to carry TIG torch assembly and ancillary tooling

- Positioning repeatability: High-precision repeatability suitable for TIG applications

- Welding current: Wide range to suit thin to medium-thickness materials

- Cooling: Water-cooled torch options for continuous operation

- Input power: Compatible with standard industrial power supplies

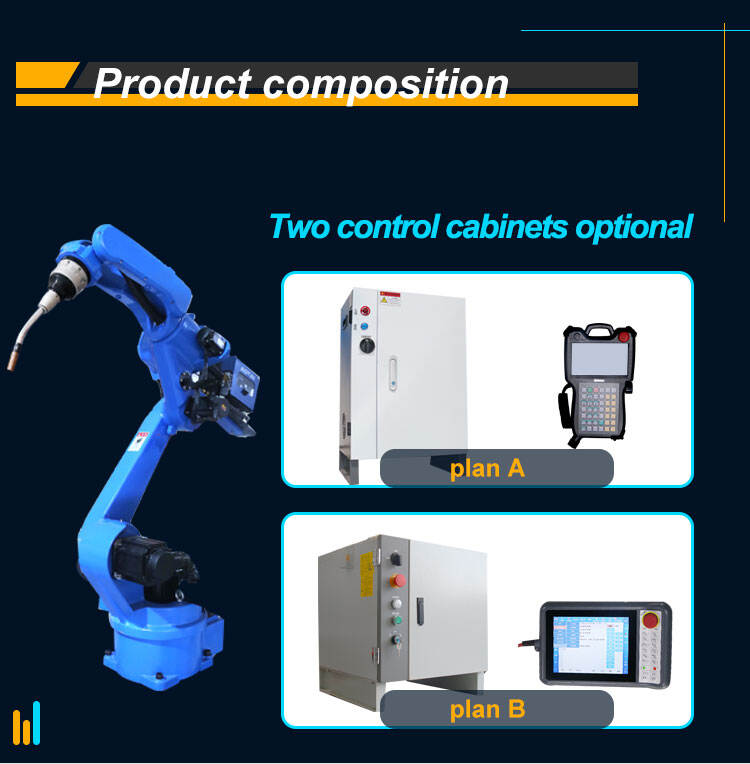

- Controller: Programmable controller with touch interface and recipe management

Operation and Programming

Setting up the TKrobot is straightforward. Operators define weld paths using the teach pendant or offline programming tools, fine-tune welding parameters such as current, pulse, and travel speed, and save programs for future use. For complex parts, the optional vision or seam-tracking system reduces fixturing requirements by dynamically correcting the torch trajectory. Once programmed, the TKrobot can run continuous cycles with minimal supervision, and operators can monitor status through the controller or integrate it with plant-level monitoring systems

Installation and Support

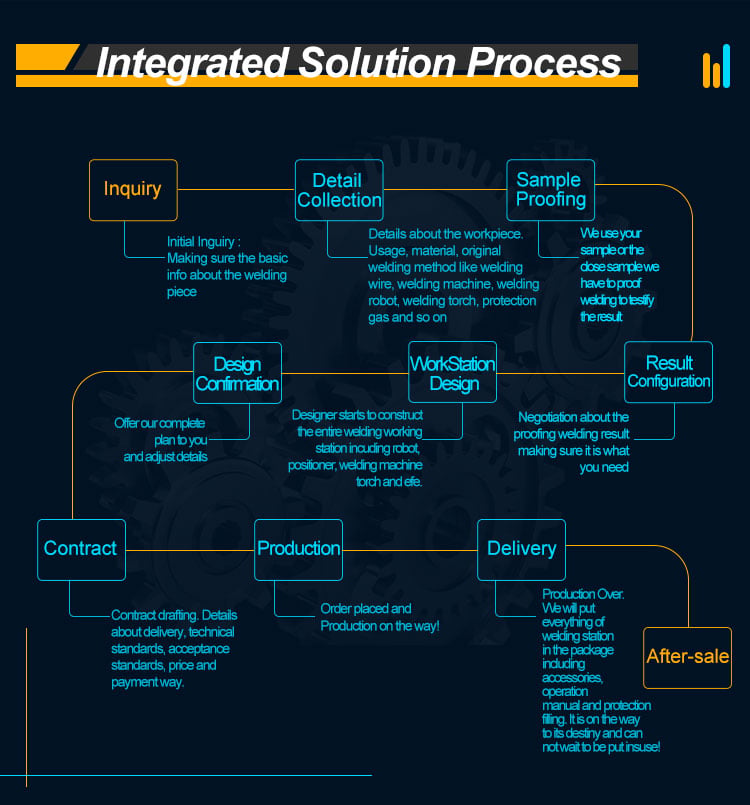

TKweld offers comprehensive installation and commissioning services, ensuring the robotic cell is integrated effectively with existing production lines and meets safety and regulatory requirements. Training is provided to help operators learn programming, maintenance, and troubleshooting. TKweld also supplies spare parts, consumables, and warranty support to keep the system running reliably

Customization Options

TKweld understands that every production need is different. The TKrobot can be customized with extended reach arms, specialized torches, rotary or linear positioners, automated part loading systems, and tailored software packages. TKweld’s engineering team works with clients to design cells that match throughput goals and production constraints

Why Choose TKweld TKrobot

TKweld combines practical automation know-how with TIG-specific welding expertise to deliver a solution that balances precision, durability, and ease of use. The TKrobot Tig Welding Automation Robotic Arm is a cost-effective way to raise welding standards, improve production efficiency, and reduce reliance on scarce manual TIG welding skills. Its flexibility and modular design make it suitable for prototypes, short-run production, and high-volume manufacturing

For businesses seeking to modernize welding operations and achieve higher quality, repeatability, and throughput, the TKweld TKrobot Tig Welding Automation Robotic Arm offers a proven path to automation. With solid construction, advanced welding controls, and flexible integration options, TKweld provides a robust system that helps manufacturers meet tight tolerances, strict quality standards, and production targets while lowering long-term costs

TKrobot Tig Welding Solution Automatic Welding Robot Systems Design
